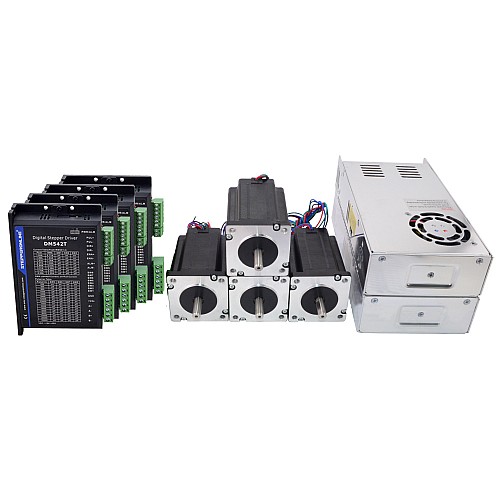

4 Axis CNC Router Kit 3.1Nm(439oz.in) Nema 24 Stepper Motor & Driver

• 4 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
• 4 x 3.1Nm(439oz.in) of Nema 24 Stepper Motor
• 2 x 250W 36V 7A 115/230V Switching Power Supply

Driver Specification

• Input voltage 20-50VDC
• Anti-Resonance provides optimal torque and nulls mid-range instability
• Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
• 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
• Soft-start with no "jump" when powered on
• 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
• Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
• Automatic idle-current reduction
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR mode
• Over-voltage and over-current protections

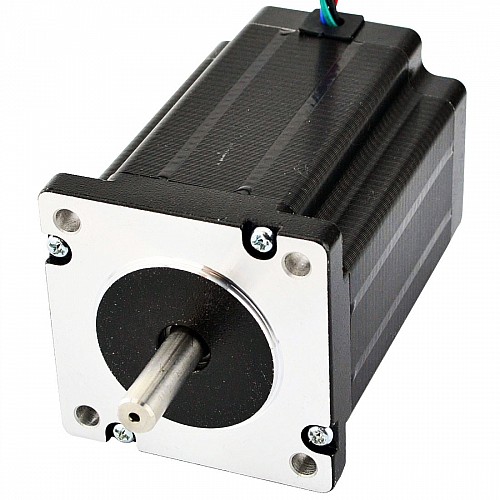

Motor Specification

• Manufacturer Part Number: 24HS34-3504D
• Motor Type: Bipolar Stepper
• Step Angle: 1.8deg
• Holding Torque: 3.1Nm(439oz.in)
• Rated Current/phase: 3.5A
• Phase Resistance: 1.1ohms
• Inductance: 5.6mH±20%(1KHz)
• Frame Size: 60 x 60mm
• Body Length: 88mm
• Shaft Diameter: Φ8mm
• Shaft Length: 24mm
• D-cut Length: 20mm
• Number of Leads: 4
• Lead Length: 600mm
• Weight: 1.34kg

Connection

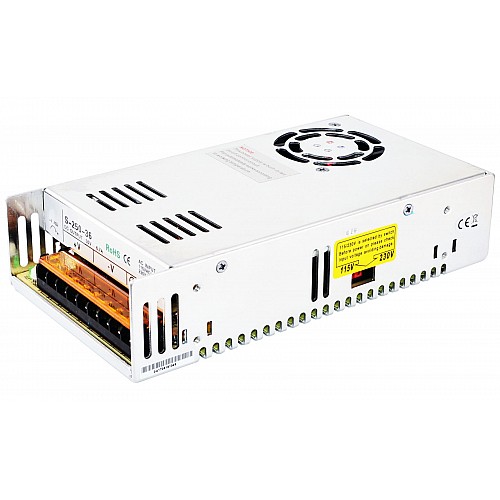

Power Specification

• 36V DC 7A output
• AC input voltage range: 90~132V/180~264VAC
• 115V/230V AC selected by switch
• High efficiency low cost
• Forced air cooling by built-in DC fan
• Low output ripple and yawp
• Over current, over voltage, short circuit and overheat protections
• 215*115*50mm(L*W*H)

Resources

• Motor Datasheet: 24HS34-3504D.pdf
• Motor Torque Curve: 24HS34-3504D_Torque_Curve.pdf
• Driver Manual: DM542T_V4.0.pdf
• Power Supply Manual: S-250-36.pdf
