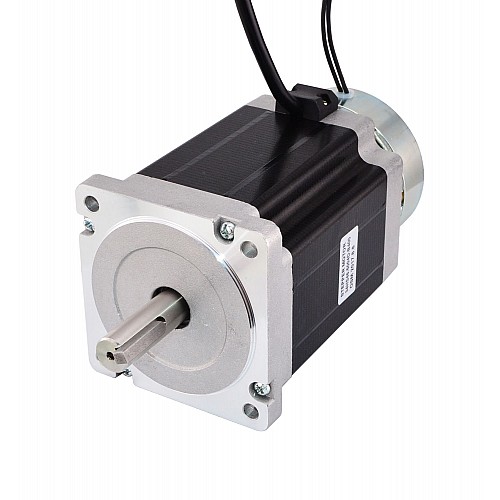

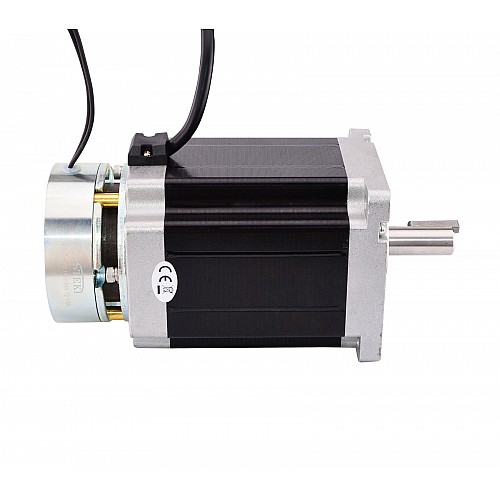

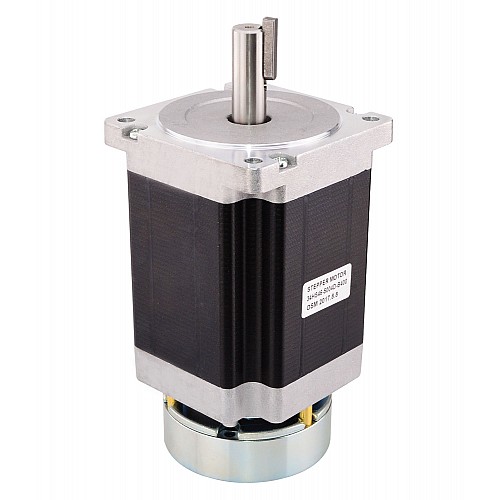

Nema 34 Stepper 8.5Nm(1204oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)

0 reviews - Write a review

C$166.90

5 + C$160.02

10 + C$153.68

50 + C$147.82

100 + C$142.39

In Stock: Pre-order
Model: 34HS46-5004D-B400
Gross Weight: 4.75kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 35

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Motor Specification

Manufacturer Part Number: 34HS46-5004D-B400
Motor Type: Bipolar
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1204oz.in)
Rated Current/phase: 5A
Voltage: 5V
Phase Resistance: 1ohms
Inductance: 11mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.6kg

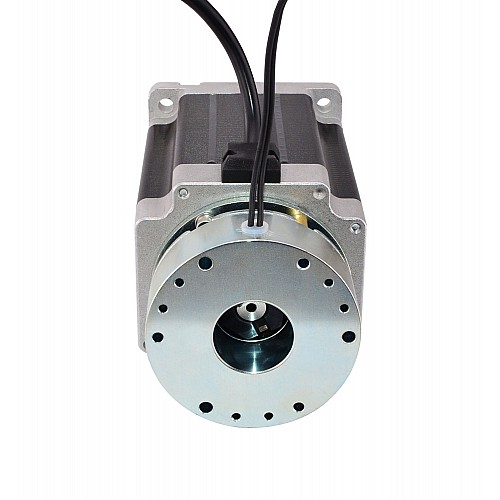

Brake Specification

Brake Type: Non-excited
Static Friction Torque : 4Nm(566.4oz.in)
Moment of Inertia : 23x10^-6kg.cm²
Voltage: 24V
Power: 13W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.8kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1204
Phase Resistance(ohms)	1
Rated Current(A)	5.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	13
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	400
Brake Torque(oz.in)	566.4
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Shaft Diameter(mm)	14
Shaft Length(mm)	37
