48V 60W 30RPM Geared Brushless DC Motor 10.00Nm(1416.12oz.in) 100:1 Spur Gearbox
This is a 48V 60W brushless DC gear Motor with a flange of 90x90mm. The built-in 100:1 spur gearbox ... Read More
0 reviews • Write a review
from
C$67.11
5 + C$65.19
10 + C$63.39
50 + C$61.70
100 + C$60.09

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

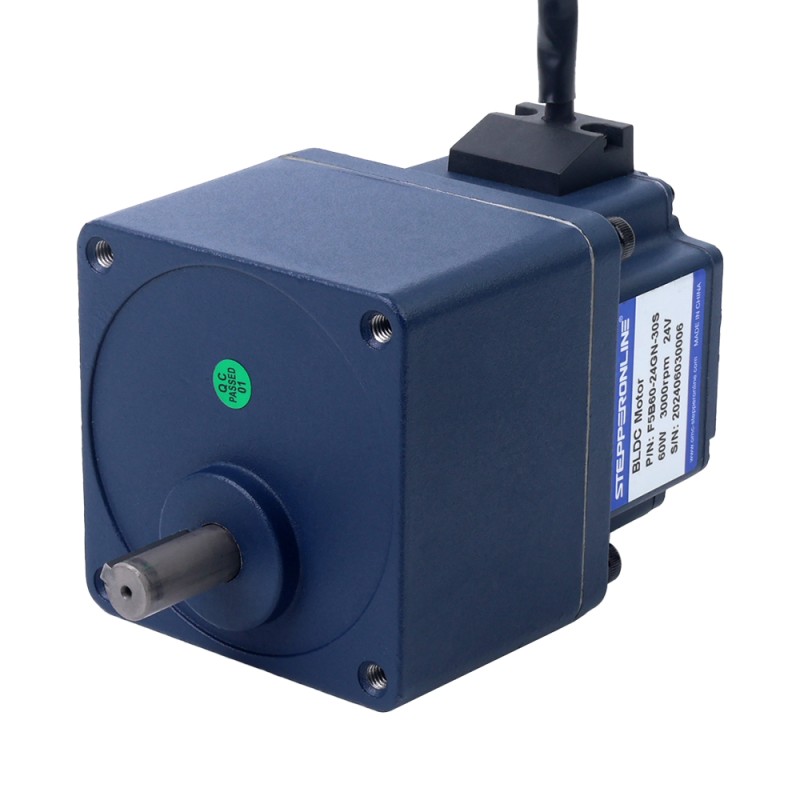

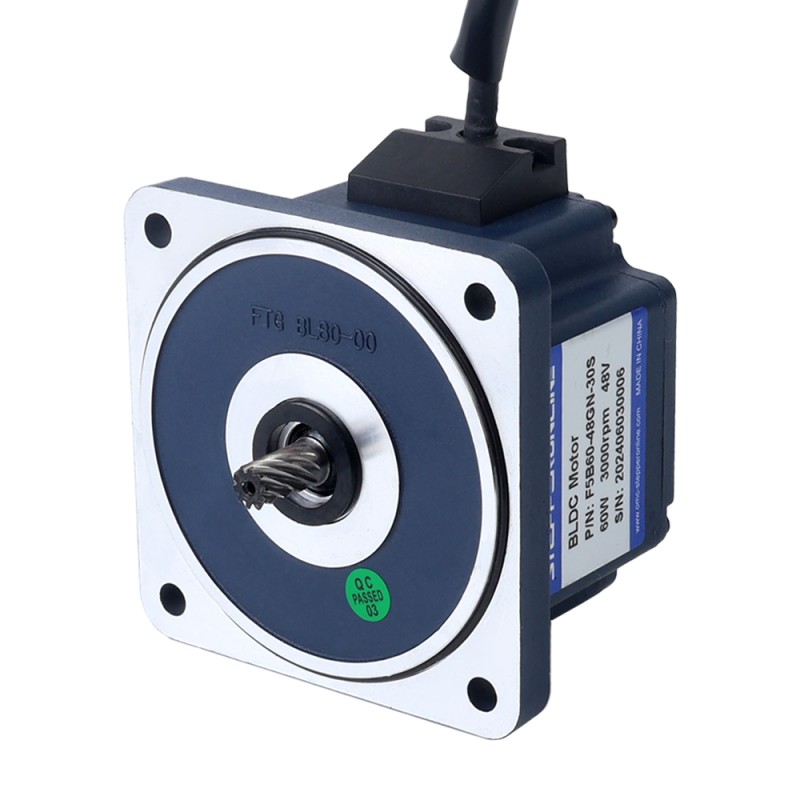

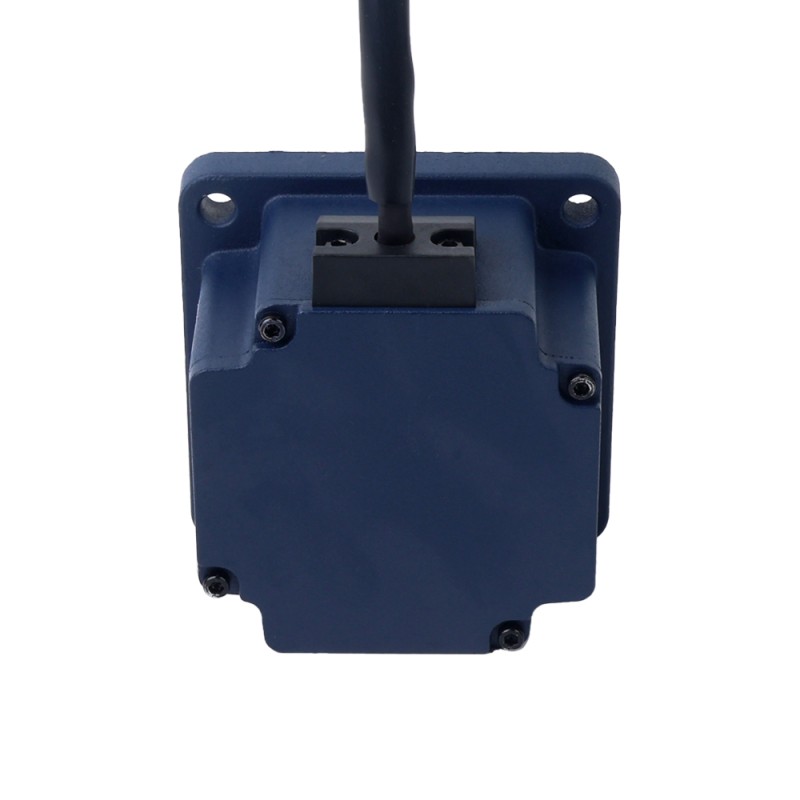

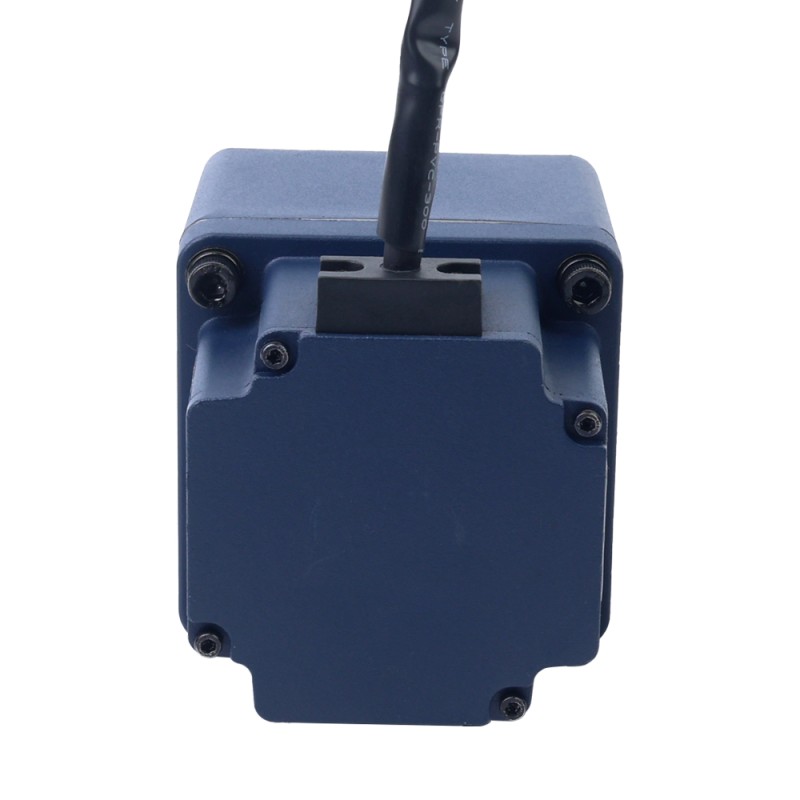

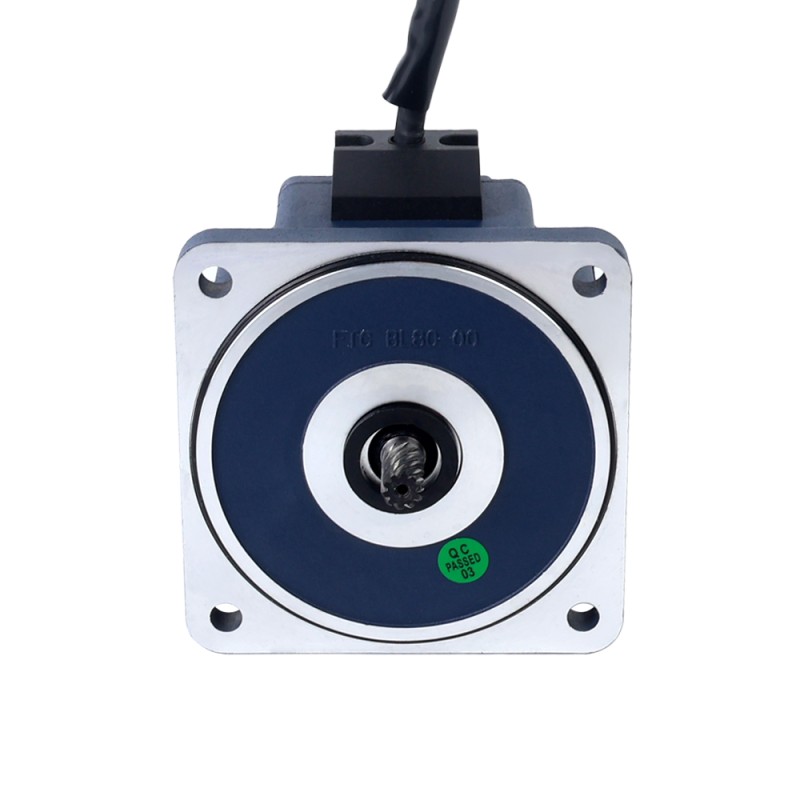

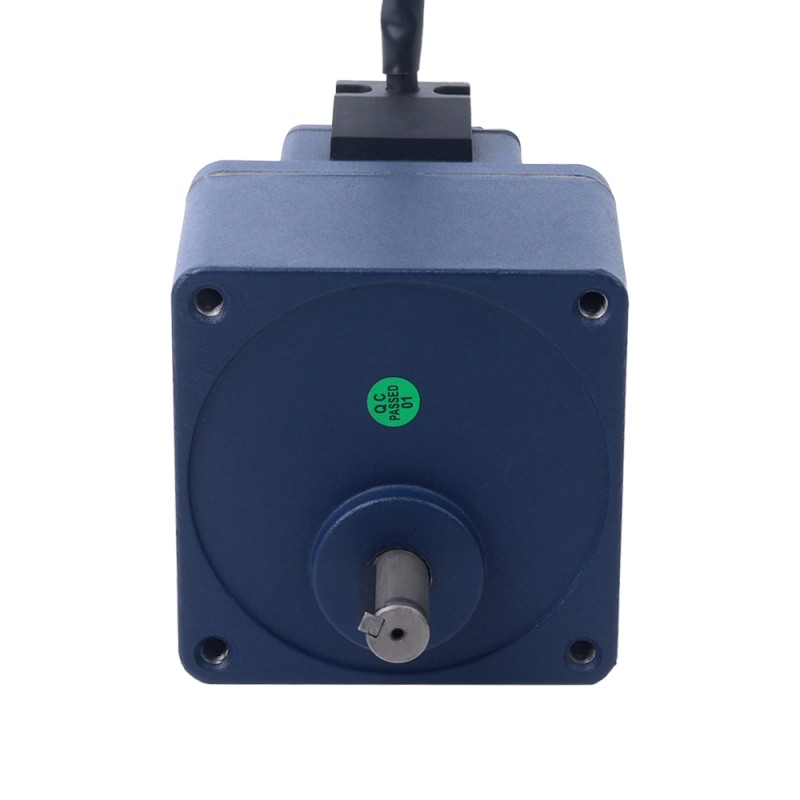

This is a 48V 60W brushless DC gear Motor with a flange of 90x90mm. The built-in 100:1 spur gearbox brings speed and torque to 30rpm and 10.00Nm(1416.12oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

  • P/N: F5B60-48GN-30S/5GN100K
  • Phase: 3
  • Poles: 10
  • Rated Current: 1.80A
  • Rated Voltage: 48V
  • Rated Speed: 30rpm
  • Rated Torque: 10.00Nm(1416.12oz.in)
  • No-load Current: 0.40A
  • Rated Power: 60W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 118mm

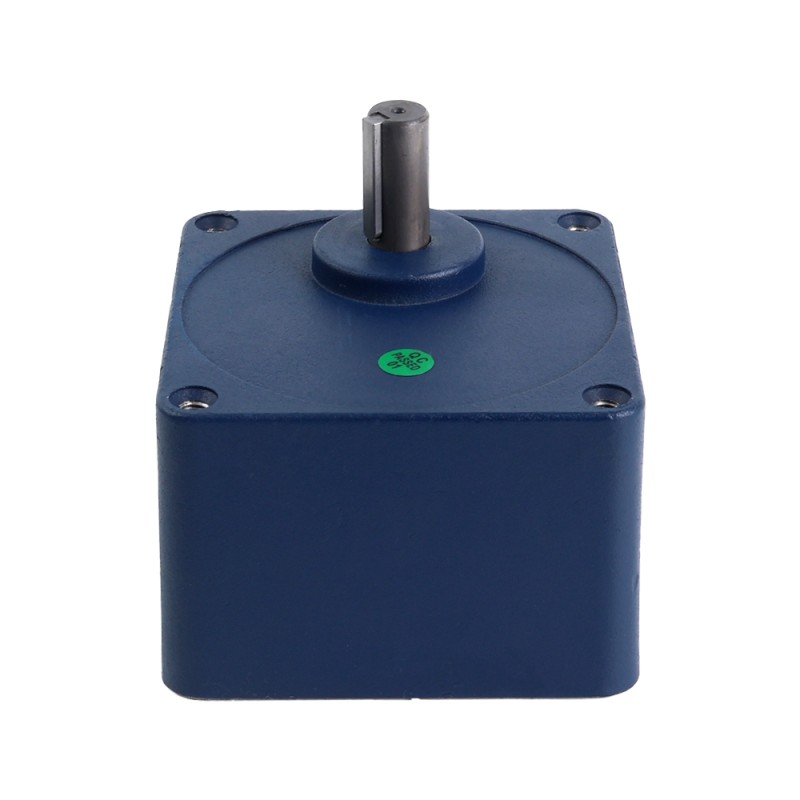

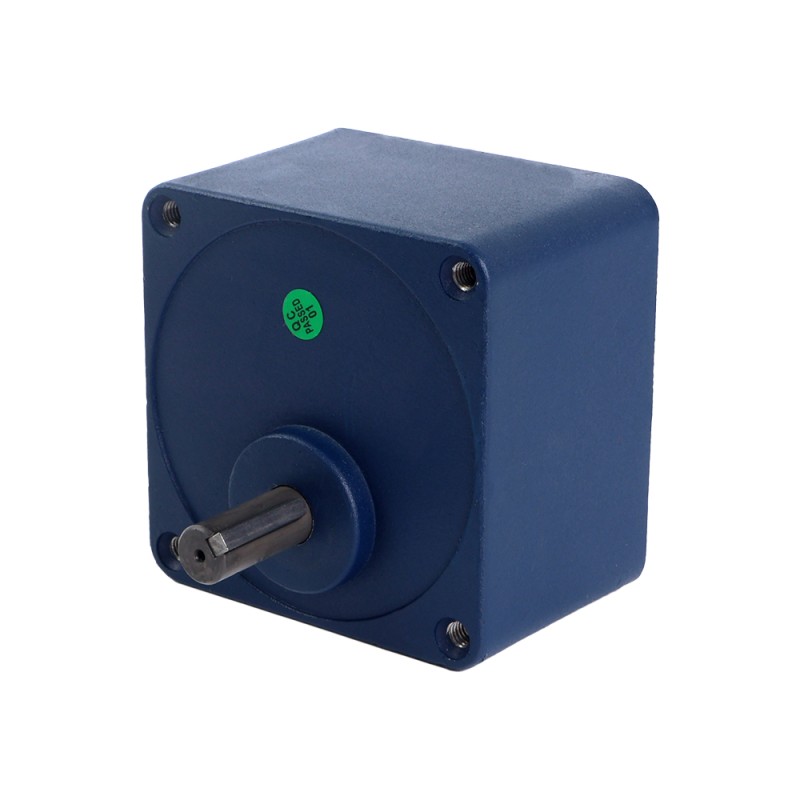

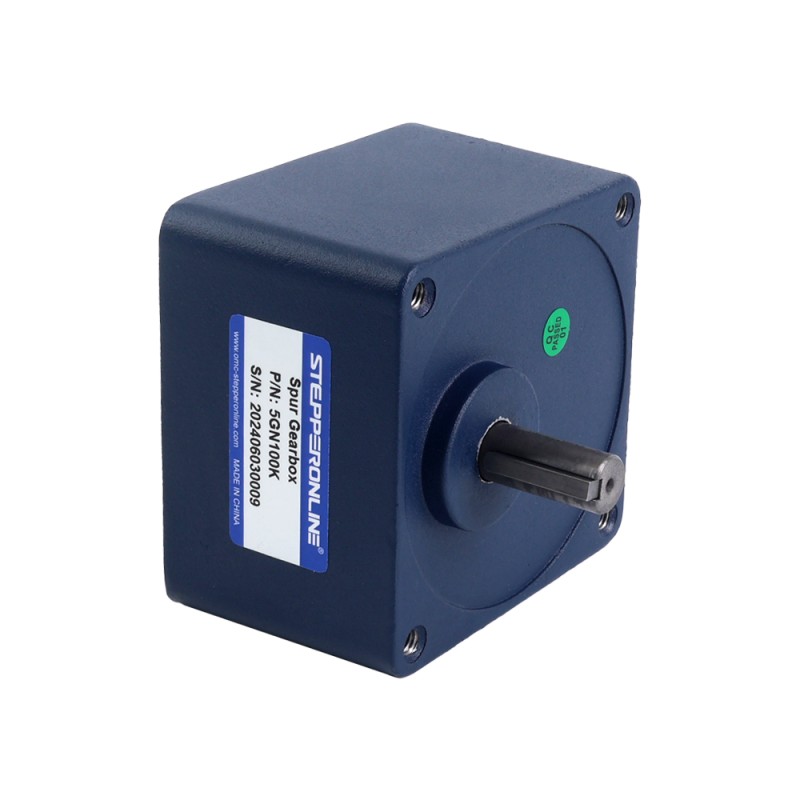

  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 100:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Keyway Length: 25mm
  • Bearing: Deep Groove Ball
  • Weight: 2.5kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product TypeGeared BLDC Motor
Electrical Specification
No-load Current(A)0.4
No. of Phase3
Rated Current(A)1.80
Rated Power(W)60
Rated Speed(rpm)30
Rated Torque(Nm)10.00
Rated Voltage(V)48
Physical Specification
Body Length(mm)118
Frame Size(mm)90 x 90
Gear Ratio(xx:1)100
Gearbox TypeSquare Spur Gearbox
Output Shaft TypeKeyway
Shaft Diameter(mm)12
Shaft Length(mm)32
With GearboxYes

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

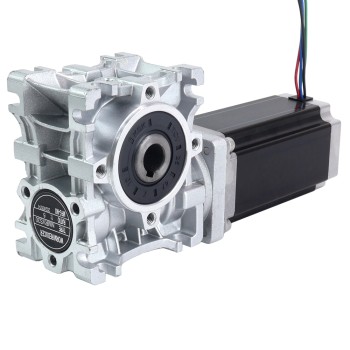

Nema 23 Stepper Motor 113mm Gear Ratio 15:1 Worm Gearbox NMRVS30 Worm Gear Speed Reducer
Nema 23 Stepper Motor 113mm Gear Ratio 15:1 Worm Gearbox NMRVS30 Worm Gear Speed Reducer
This Nema 23 size 113mm stepper motor is equipped with a 15:1 worm gearbox that has excellent mechanical strength and particularly lightweight. The wo..
from
C$88.23
Add to Cart
Add to Wish List Compare this Product
Quickview

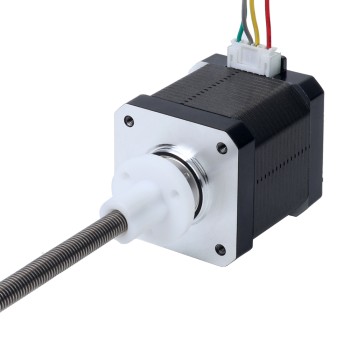

Nema 17 External 48mm Stack 1.68A Lead 2mm(0.07874") Length 200mm
