Nema 23 Stepper Motor 113mm Gear Ratio 15:1 Worm Gearbox NMRVS30 Worm Gear Speed Reducer

0 reviews - Write a review

C$90.06

5 + C$86.18

10 + C$82.63

50 + C$79.36

100 + C$76.34

In Stock: 10000
Model: 23HS45-4204S-RVS30-G15
Gross Weight: 3.00kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

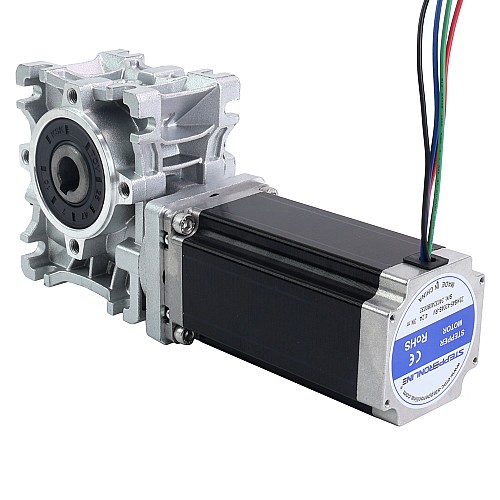

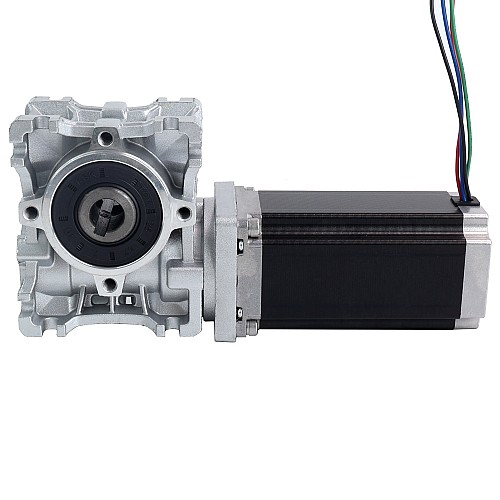

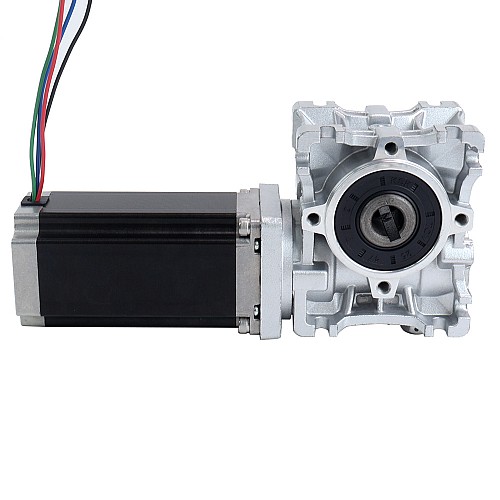

This Nema 23 size 113mm stepper motor is equipped with a 15:1 worm gearbox that has excellent mechanical strength and particularly lightweight. The worm gear speed reducer comes with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity.
Its output shaft is offset by 90° from the drive shaft and characterized by high efficiency and self-locking.
Strong capacity for loading and overload ensures stable transmission, with less vibration and noise, making it a good choice for applications such as CNC Router, Engraving, Milling, and Lathe.

Electrical Specification

Manufacturer Part Number: 23HS45-4204S-RVS30-G15
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms±10%
Inductance: 3.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Worm Gearbox
Gear Ratio: 15:1
Efficiency: 76%
Backlash at No-load: <=1°
Output Max.Permissible Torque: 18Nm(159.31lb-in)
Output Max. Radial Load: 0.86kN

Physical Specification

Frame Size: 57 x 57mm
Motor Length: 113mm
Output Type: Hollow Bore
Output Bore Diameter: Φ14mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

If you need single or double output shaft for the motor, you can get it through the below link.

Single output shaft for NMRVS30 worm gearbox: RV30-AS
Double output shaft for NMRVS30 worm gearbox: RV30-AB

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	4.2
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	3.0
Inductance(mH)	3.4
Phase Resistance(ohms)	0.88
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	113
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	15
Gearbox Type	Worm Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
Output Bore Diameter(mm)	14
Output Type	Hollow Bore
