Nema 17 External 48mm Stack 1.68A Lead 2mm(0.07874") Length 200mm
This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor p... Read More
0 reviews • Write a review
from
C$45.83
5 + C$44.31
10 + C$42.91
50 + C$41.57
100 + C$40.32

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

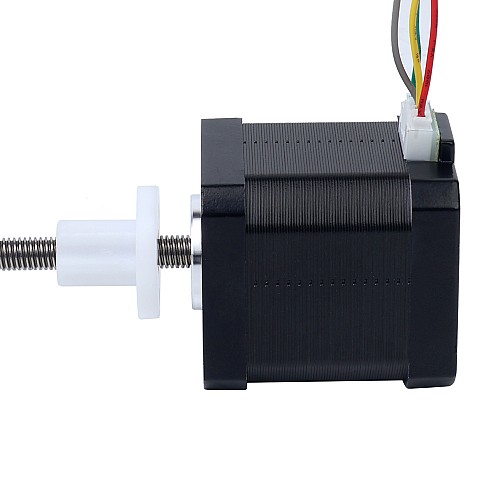

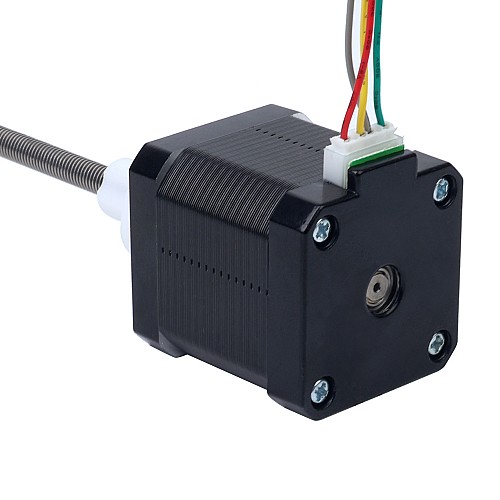

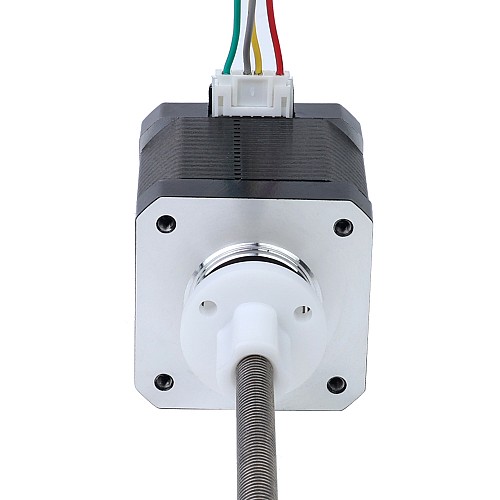

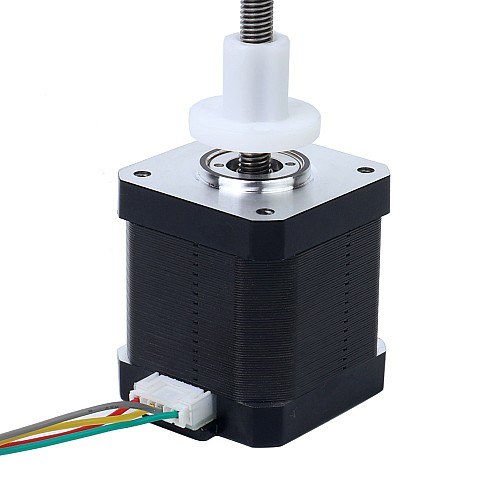

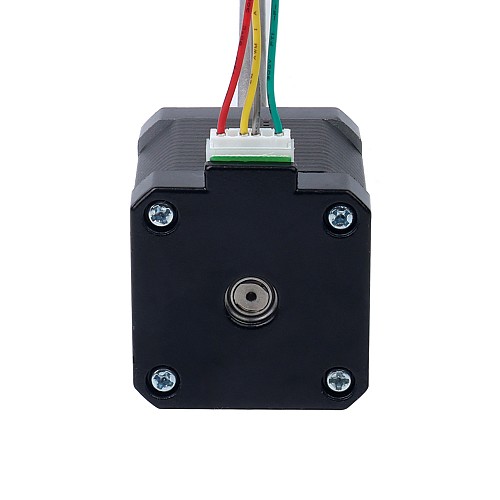

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor. It was integrated with 200mm Tr6.35x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 17E19S1684AF4-200RS(17E19S1684AF2-200RS)
  • Motor Type: External(Acme)
  • Step Angle: 1.8deg
  • Holding Torque: 44Ncm(62.31oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Inductance: 2.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 200mm(7.874")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Cable Length: 500mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Red
Gray
Yellow
Green
Electrical Specification
Bipolar/UnipolarBipolar
Has Torque/Thrust Curve?No
Holding Torque(Ncm)44
Holding Torque(oz.in)62.31
Inductance(mH)2.8
Phase Resistance(ohms)1.65
Rated Current(A)1.68
Step Angle(deg.)1.8
Physical Specification
Body Length(mm)48
Frame Size(mm)Nema 17 (42 x 42)
Lead Length(mm)500
Lead Screw Diameter(mm)6.35
Lead Screw Length(mm)200
Lead Travel/Revolution(mm)2
Lead Travel/Step(mm)0.01
Linear Motor TypeExternal(Acme)
No. of Lead4
With EncoderNo
