NMRV40-G50-D14 Discontinued
Gear Ratio(xx:1)50
Gearbox TypeWorm Gearbox
Input Shaft Diameter(mm)14
Downloads
Same series
| Model | Gear Ratio(xx:1) | Gearbox Type | Input Shaft Diameter(mm) | Price | Stock | |
|---|---|---|---|---|---|---|
| 1-CL57Y-S12 Discontinued | — | — | — | — | — | |
| 1-CL57Y-S20 Discontinued | — | — | — | — | — | |
| 1-CL57Y-S30A Discontinued | — | — | — | — | — | |
| 1-CLYS20 Discontinued | — | — | — | — | — | |
| 1-CLYS30 Discontinued | — | — | — | — | — | |
| 1-CLYS30-1M5 Discontinued | — | — | — | — | — | |
| 1-CLYS30S-V20 Discontinued | — | — | — | — | — | |
| 1-CLYS40 Discontinued | — | — | — | — | — | |
| 1-DM542T-24HS34 Discontinued | — | — | — | — | — | |
| 1-DM542T-24HS39 Discontinued | — | — | — | — | — | |
| 1-DM556S-24HS39 Discontinued | — | — | — | — | — | |
| 11C13S0754ED3-013RS Discontinued | — | — | — | — | — | |
| 11E13S0754ED2-100RS Discontinued | — | — | — | — | — | |
| 11E18S0754ED2-101RS Discontinued | — | — | — | — | — | |
| 11E18S0754FD3-250RS Discontinued | — | — | — | — | — | |
| 11E18S0754GD3-250RS Discontinued | — | — | — | — | — | |
| 11E20S0674AA2-100RS Discontinued | — | — | — | — | — | |
| 11E20S0674ED2-100RS Discontinued | — | — | — | — | — | |
| 11HS12-0674D2-PG27 Discontinued | — | 26.85 | Economy Planetary | — | — | |
| 11HS12-0674S-PG100 Discontinued | — | 99.548 | Economy Planetary | — | — | |
| 11HS20-0674D-PG14-AR3 Discontinued | — | 13.73 | Economy Planetary | — | — | |
| 11HS20-0714S-PG100 Discontinued | — | 99.05 | Economy Planetary | — | — | |
| 11N13S0754AA2-100RS Discontinued | — | — | — | — | — | |
| 11N13S0754QE2-150RS Discontinued | — | — | — | — | — | |
| 11N18S0754ED3-250RS Discontinued | — | — | — | — | — | |
| 11N20S0674AA2-100RS Discontinued | — | — | — | — | — | |
| 14E13S0574JE3-150RS Discontinued | — | — | — | — | — | |
| 14E13S0574QE3-150RS Discontinued | — | — | — | — | — | |
| 14E17S0914JE3-250RS Discontinued | — | — | — | — | — | |
| 14E17S0914QE3-250RS Discontinued | — | — | — | — | — |
The worm gearbox has been upgraded by using better materials. If you need the new version, please refer to NMRVS40-G50-D14.

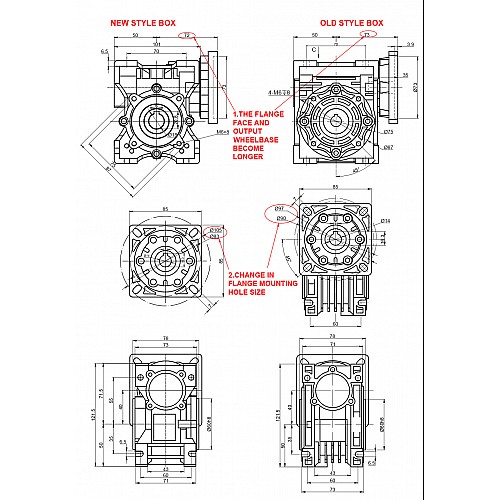

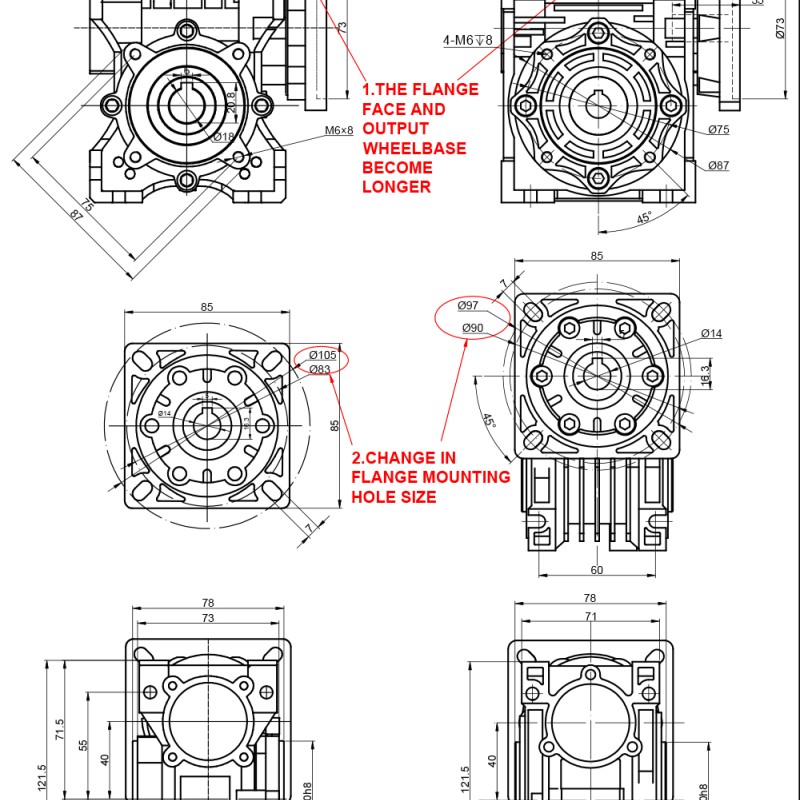

If you would like to know more about the difference between old and new worm gears, please read this article.
Worm gearboxes are generally recommended to use B3 installation type, if you use other installation types, please contact us for customization.

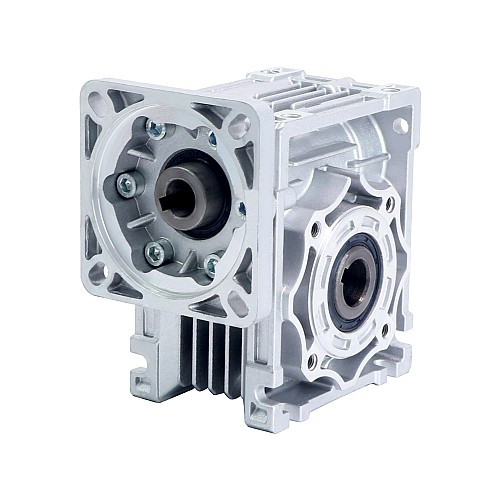

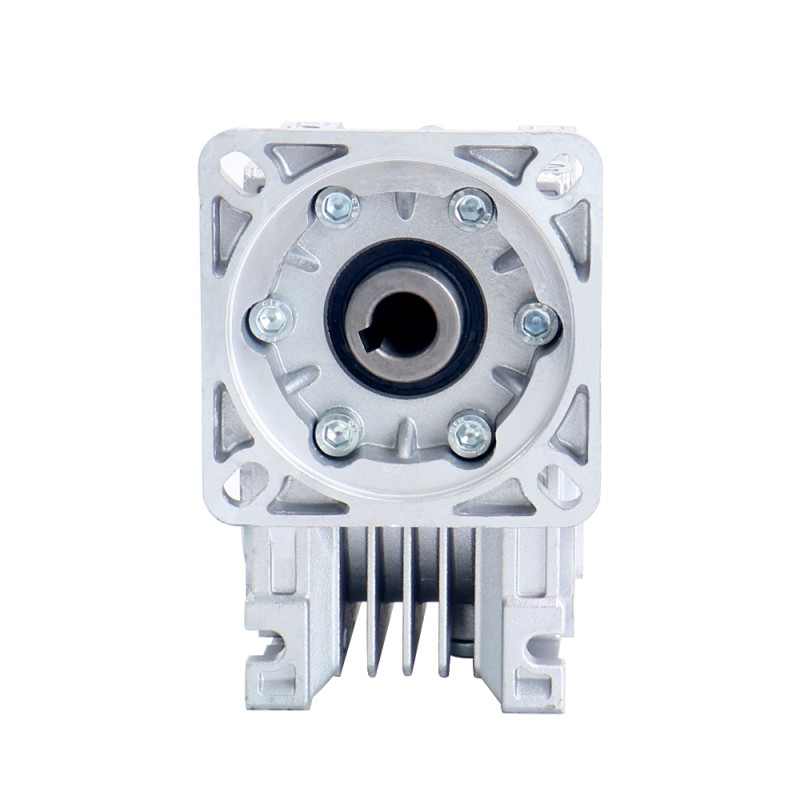

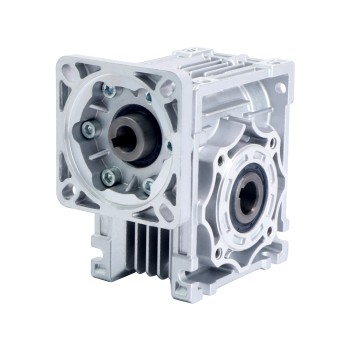

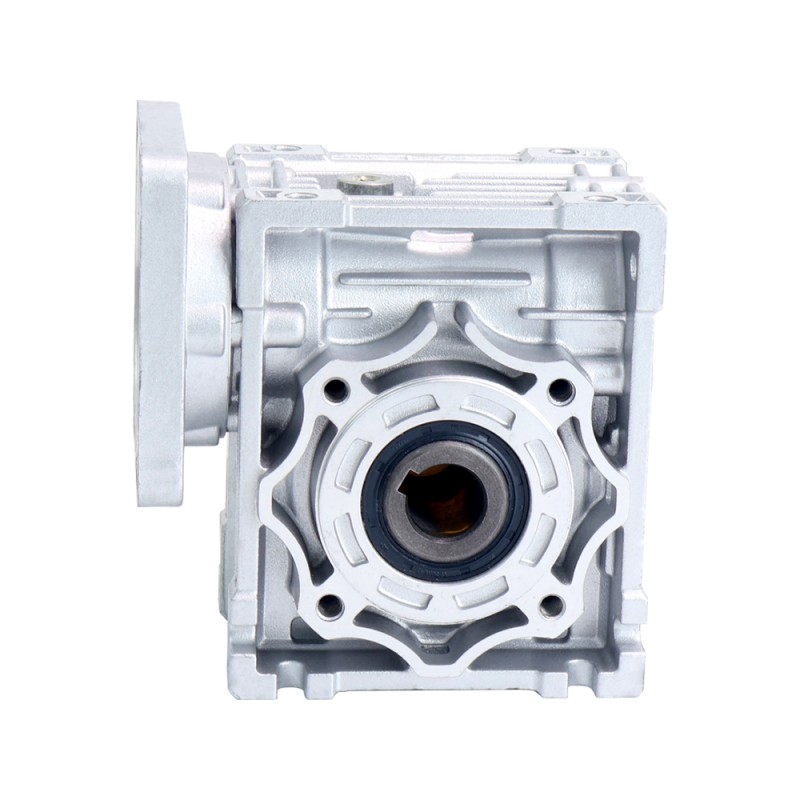

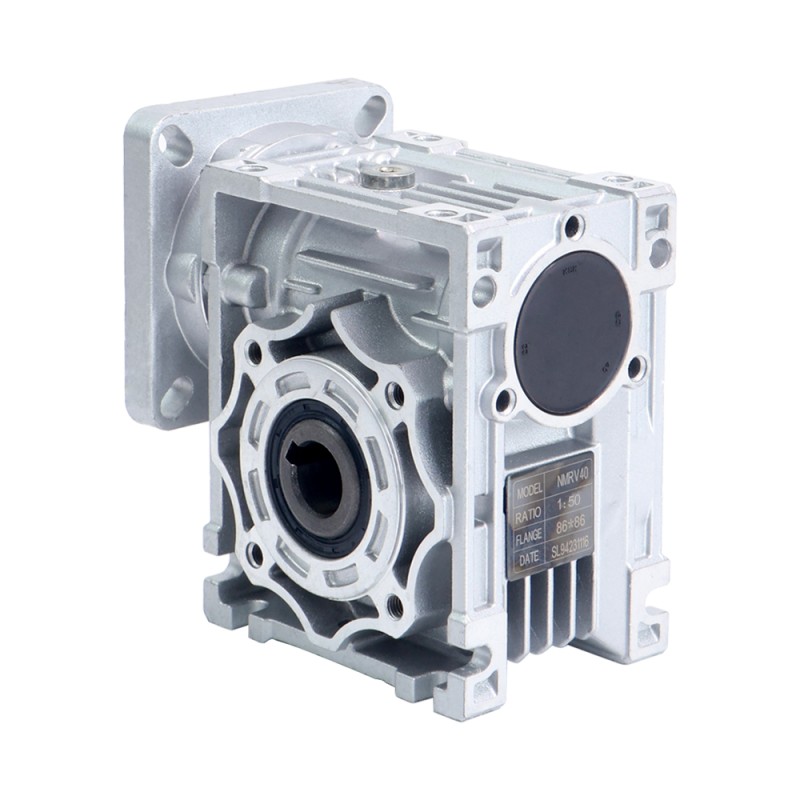

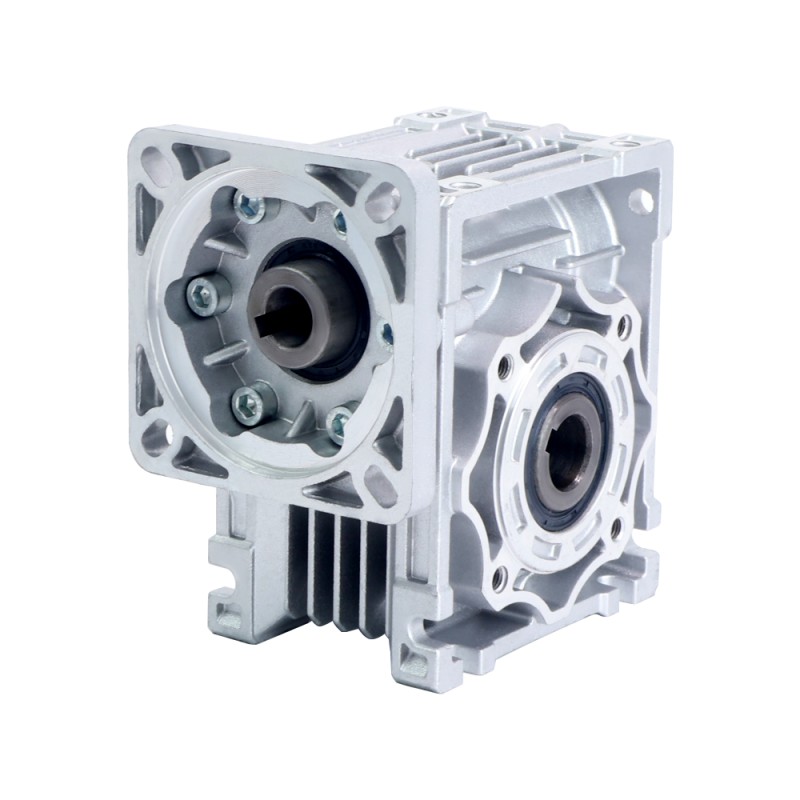

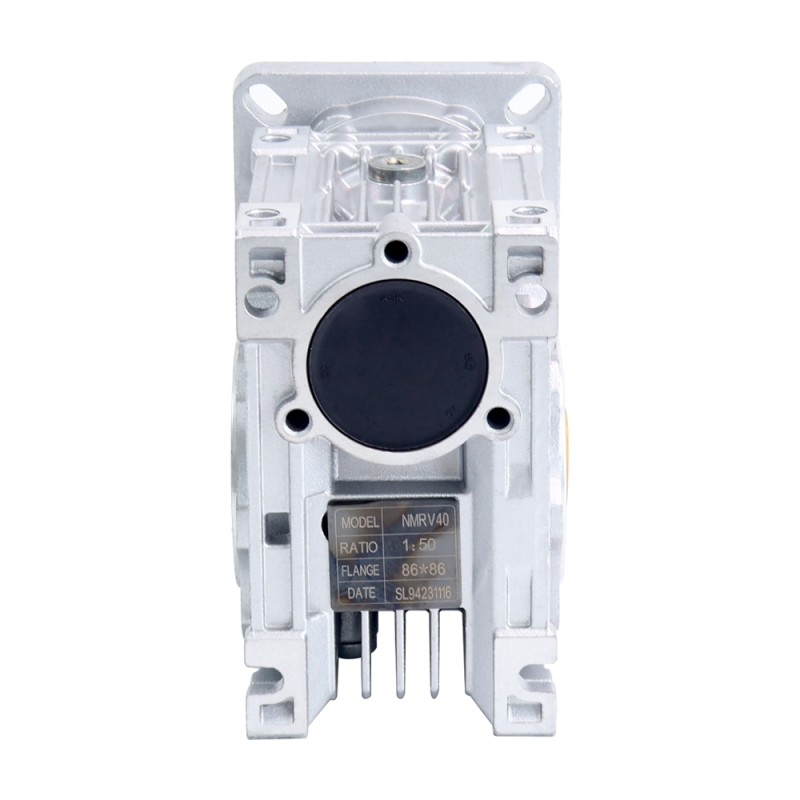

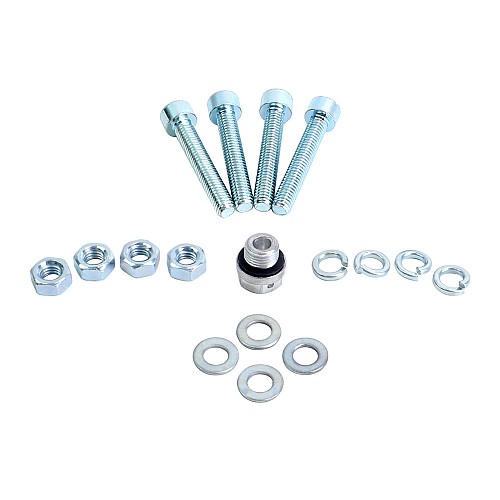

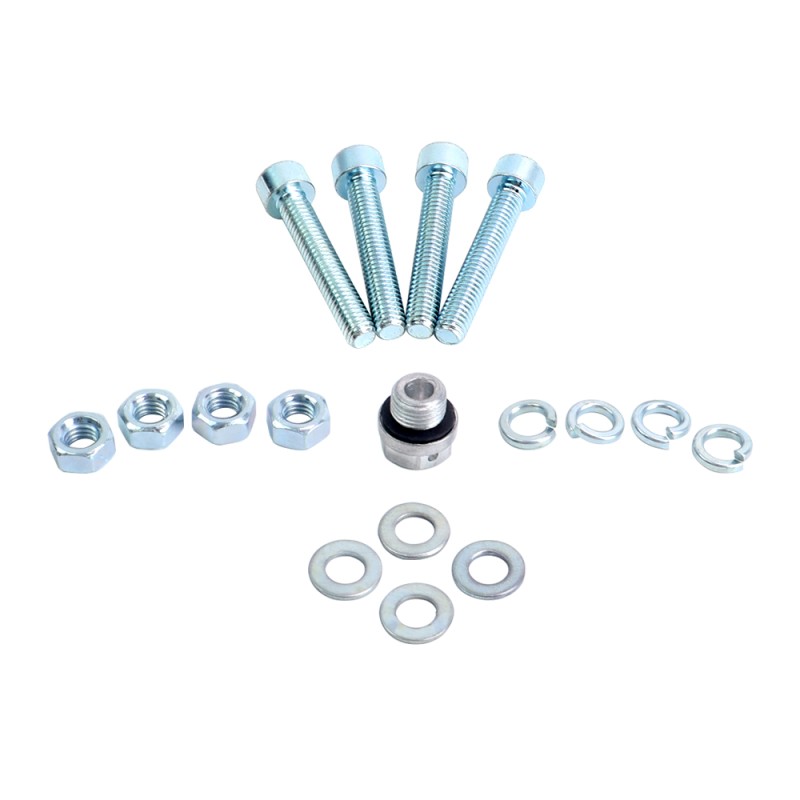

50:1 Worm Gearbox NMRV40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86mm size motor, the output shaft is offset by 90° from the drive shaft.The advantage for this gearbox is efficiency and self-locking. Besides big cases, no gap structure of box means a maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.
Feature
- High torque and high strength
- Worm wheel: Bronze Cu Sn12 Ni2 (UNI7013-10)
- Excellent mechanical strength and particularly lightweight
- Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
Gearbox Specifications
- Manufacturer Part Number: NMRV40-G50-D14
- Gearbox Type: Worm Gearbox
- Gear Ratio: 50:1
- Output Max.Permissible Torque: 38Nm(336.33lb-in)
- Output Max. Radial Load: 2.47kN
- Output Type: Hollow Bore
- Output Bore Diameter: Φ18mm
- Input Shaft Type: Key way
- Input Shaft Diameter: Φ14mm
- Input Shaft Max. Length: 35mm
Note
- Recommend Input Speed <=1500rpm.
- Due to high backlash, worm gearboxes are not suitable for positioning applications.
