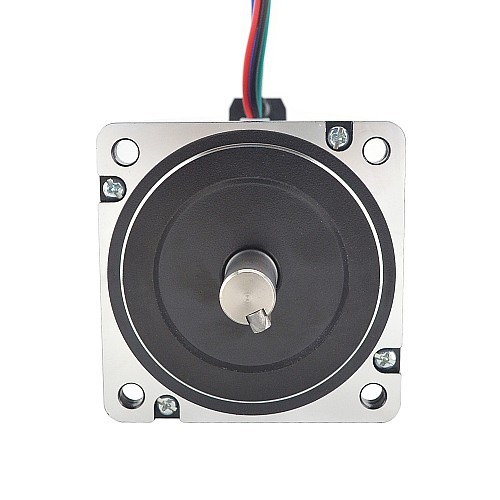

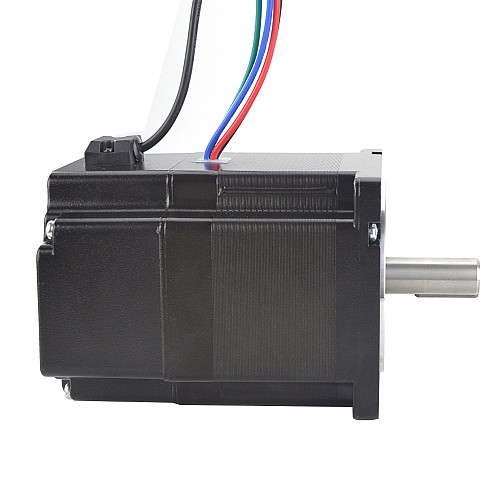

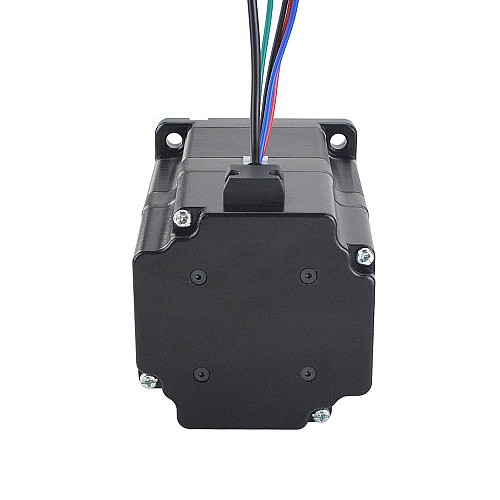

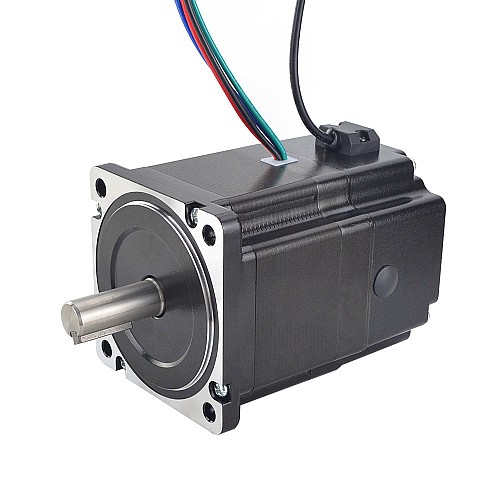

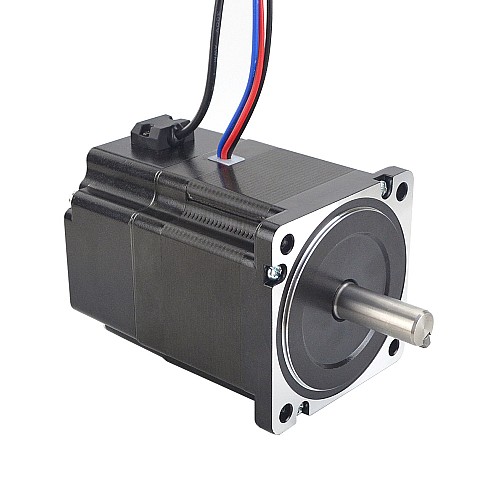

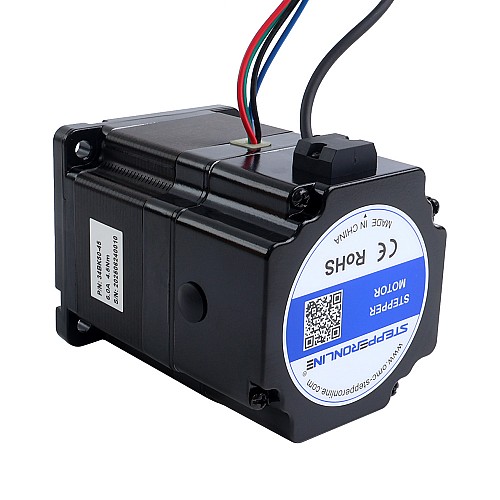

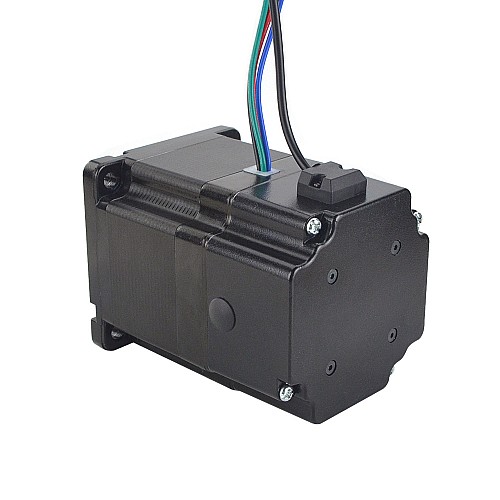

P Series Nema 34 Stepper Motor 4.5Nm(637.38oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$159.28

5 + C$151.79

10 + C$144.97

50 + C$138.74

100 + C$133.01

In Stock: 10000
Model: 34BK50-45
Gross Weight: 3.50kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 73

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 34BK50-45
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 4.5Nm(637.38oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.34ohms
Inductance: 2.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 74mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 2.1kg

Brake Connections

Red--24V+
Red--24V-
5.0Nm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Electrical Specification
Holding Torque(Ncm)	450
Holding Torque(oz.in)	637.38
Phase Resistance(ohms)	0.34
Rated Current(A)	6.0
Stepper Motor with	Brake
Brake Specification
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	500
Brake Torque(oz.in)	708.06
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
