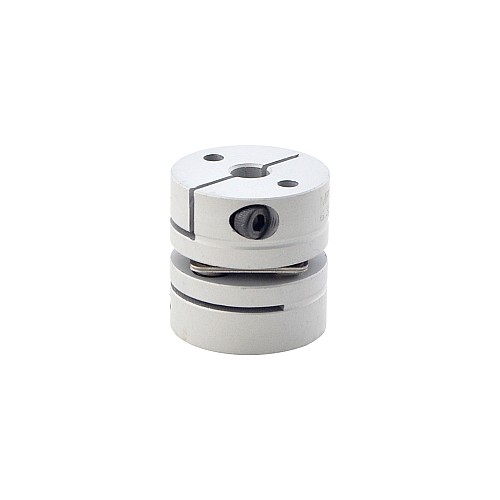

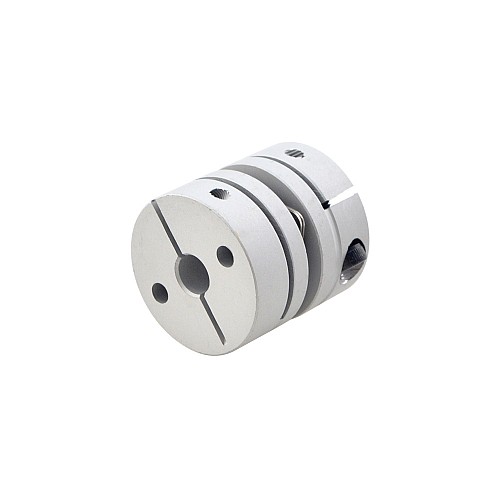

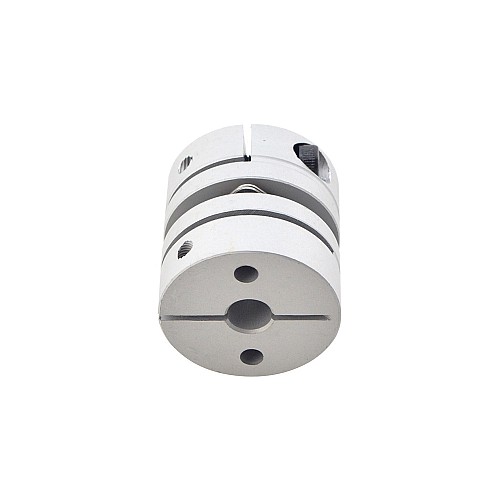

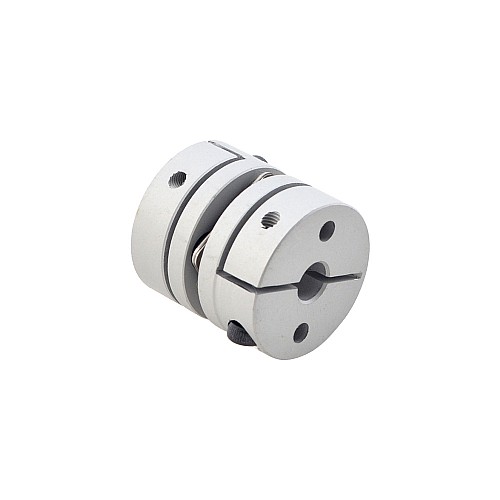

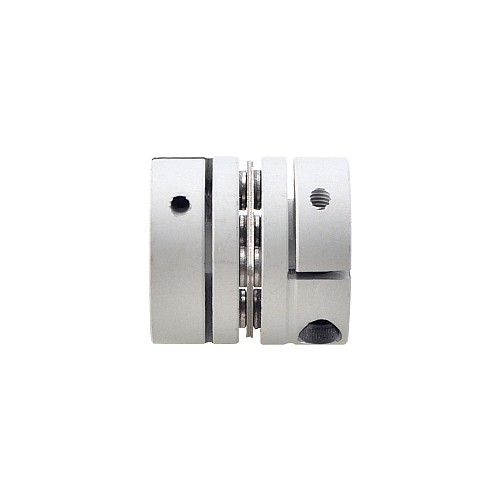

6.35mm - 6.35mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$7.36

5 + C$7.00

10 + C$6.67

50 + C$6.36

100 + C$6.10

In Stock: 10000
Model: MP2626-6.35-6.35
Gross Weight: 0.09kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Part Number: MP2626-6.35-6.35
Type: Single Disc
Rated Torque: 1.4Nm(198.21oz.in)
Max. Torque: 2.8Nm(396.42oz.in)
Max. Speed: 10000rpm
Moment of Inertia: 2.2*10^-6kg*m²
Static Torsional Spring Constant: 950Nm/rad
Bore Diameter(d1-d2): 6.35mm - 6.35mm
Body Outside Diameter(D): 26mm
Body Length(L): 26mm
Material Type: Aluminum
Weight: 34g

Coupling Specification
Body Length(mm)	26
Coupling Type	Disc Shaft Coupling
Diameter(mm)	26
Matching Shaft Diameter(mm)	6.35 - 6.35
Physical Specification
Inventory Method	Dedicated Inventory
