Model: MP2626-6.35-6.35

6.35mm - 6.35mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler

Specification Part Number: MP2626-6.35-6.35 Type: Single Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Max. Speed: 10000rpm Moment of Inertia: 2.2*10-6kg*m2 Static Torsional Spring Constant: 950Nm/rad Bore Diameter(d1-d2): 6.35mm - 6...

C$7.36

Add to Cart

Add to Wish List Compare this Product

Question

Model: MP2626-6.35-8

6.35mm - 8mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler

Specification Part Number: MP2626-6.35-8 Type: Single Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Max. Speed: 10000rpm Moment of Inertia: 2.2*10-6kg*m2 Static Torsional Spring Constant: 950Nm/rad Bore Diameter(d1-d2): 6.35mm - 8mm ..

C$7.36

Add to Cart

Add to Wish List Compare this Product

Question

CN On Sale - 6.35mm - 10mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler

-32 %

Model: CN-MP2626-6.35-10

CN On Sale - 6.35mm - 10mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler

Specification Part Number: MP2626-6.35-10 Type: Single Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Max. Speed: 10000rpm Moment of Inertia: 2.2*10-6kg*m2 Static Torsional Spring Constant: 950Nm/rad Bore Diameter(d1-d2): 6.35mm - 10mm..

C$7.37 C$5.05

Add to Cart

Add to Wish List Compare this Product

Question

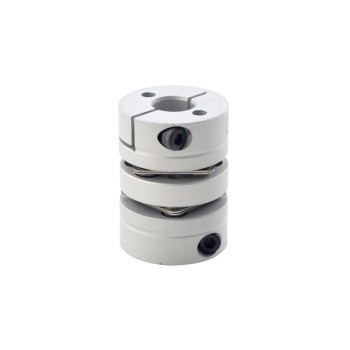

Model: MP2635-6.35-10

6.35mm - 10mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler

Specification Part Number: MP2635-6.35-10 Type: Double Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Max. Speed: 10000rpm Moment of Inertia: 2.2*10-6kg*m2 Static Torsional Spring Constant: 950Nm/rad Bore Diameter(d1-d2): 6.35mm - 10mm..

C$10.92
