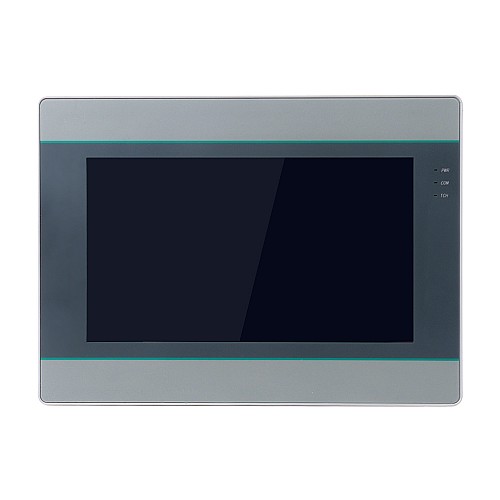

7" 800x480px RS-485 Serial port & USB 128MB/FLASH 128MB/Memory HMI Touch Screen LED Display

This high-end 7-inch HMI touch screen display boasts an LED screen with 800x480 pixel resolution and 250cd/m² brightness. The backlit LED display offers excellent visibility, with a lifespan exceeding 20,000 hours. Enhancing functionality, this touchscreen includes USB HOST and two USB CLIENT interfaces for streamlined debugging and control. Powered by a high-performance processor, it delivers exceptional touch accuracy. Primarily designed for integration with various PLCs or intelligent controllers equipped with communication ports, this HMI enables users to rapidly create programs through intuitive and powerful software.

Specifications

• Part Number: I3070ig-O
• Display Type: HMI Display
• Processor: 4-core high-performance CPU
• Storage: 128MB NAND FLASH + 128MB Memory
• Operating Voltage: 24VDC
• Display Resolution: 800x480px
• Display Brightness: 250cd/m²
• Display Backlight: LED
• Display Size: 7"
• Panel Cut-out: 192.0x138.0mm
• Backlight Lifetime: 20,000 hours

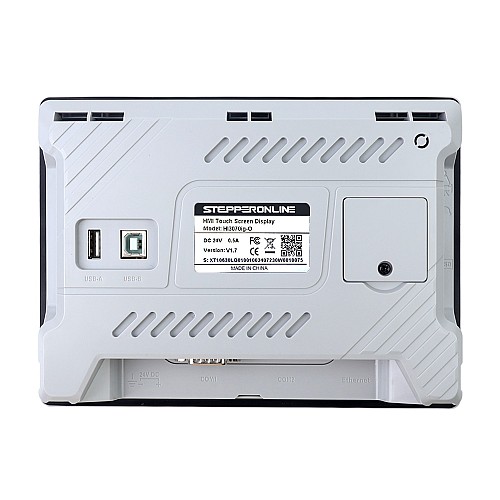

• USB Port: USB Host/USB CLIENT Note: Two USB ports cannot be used simultaneously.
• Ethernet: Yes
• I/O Port: Serial port(9): (RS-232, RS-422/RS-485, RS-485)

Downloads

• HMI Editor Software
• HMI Installation Manual
