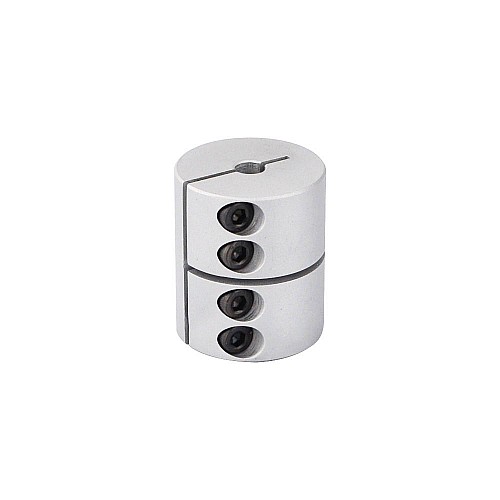

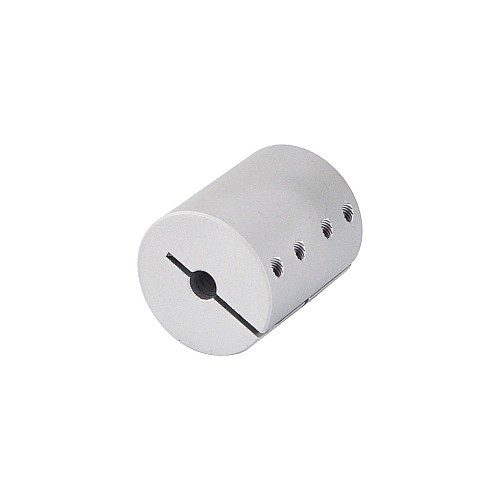

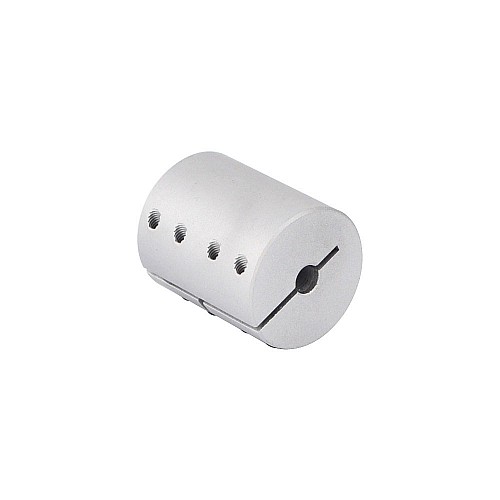

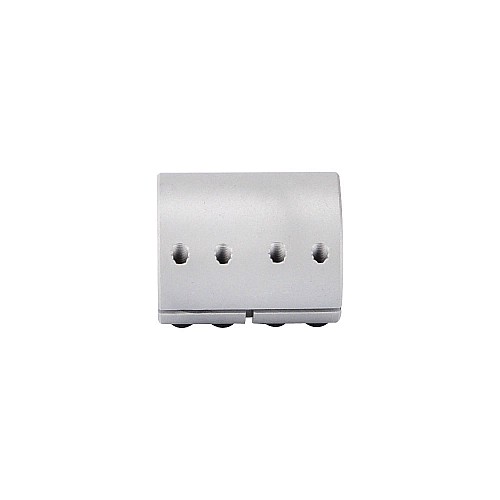

8mm - 10mm Rigid Coupling 25x30mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$4.60

5 + C$4.40

10 + C$4.20

50 + C$4.03

100 + C$3.88

In Stock: 10000
Model: ST-RC08
Gross Weight: 0.14kg
Certificated: ISO

Sold: 424

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Shaft: 8mm - 10mm
P/N: ST-RC08
Diameter: 25mm
Length: 30mm
Body Material: Aluminum Alloy

This coupling can be replaced by GX2025-8-10.

Coupling Specification
Body Length(mm)	30
Coupling Type	Rigid Shaft Coupling
Diameter(mm)	25
Matching Shaft Diameter(mm)	8 - 10
Physical Specification
Inventory Method	Dedicated Inventory

Model(Rigid)	d1(mm)	d2(mm)	D(mm)	L(mm)	t(mm)	L2(mm)	M(mm)	A(mm)	Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Tightening Torque(N.M)
GX2025-5-5	5	5	20	25	1	12	2-M3	7	10	20	31000	3.4*10^-7	3
GX2025-5-6.35	5	6.35	20	25	1	12	2-M3	7	10	20	31000	3.4*10^-8	3
GX2025-5-8	5	8	20	25	1	12	2-M3	7	10	20	31000	3.4*10^-9	3
GX2025-6.35-8	6.35	8	20	25	1	12	2-M3	7	10	20	31000	3.4*10^-10	3
GX2025-8-10	8	10	20	25	1	12	2-M3	7	10	20	31000	3.4*10^-11	3
GX2025-8-8	8	8	20	25	1	12	2-M3	7	10	20	31000	3.4*10^-12	3
