Name: 24HS34-3504D | Dual Shaft Nema 23 Bipolar 3.1Nm(439oz.in) 3.5A 60x60x88mm 4 Wires | StepperOnline CA
SKU: 24HS34-3504D
Price: 49.24 CAD
Availability: InStock
Rating: 4 (1 reviews)

Dual Shaft Nema 23 Bipolar 3.1Nm(439oz.in) 3.5A 60x60x88mm 4 Wires

Hot

Dual Shaft Nema 23 Bipolar 3.1Nm(439oz.in) 3.5A 60x60x88mm 4 Wires

1 reviews - Write a review

C$49.24

5 + C$46.93

10 + C$44.81

50 + C$42.89

100 + C$41.11

In Stock: 10000
Model: 24HS34-3504D
Gross Weight: 1.50kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

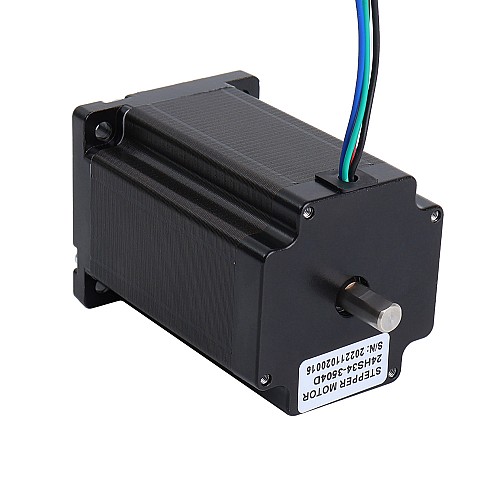

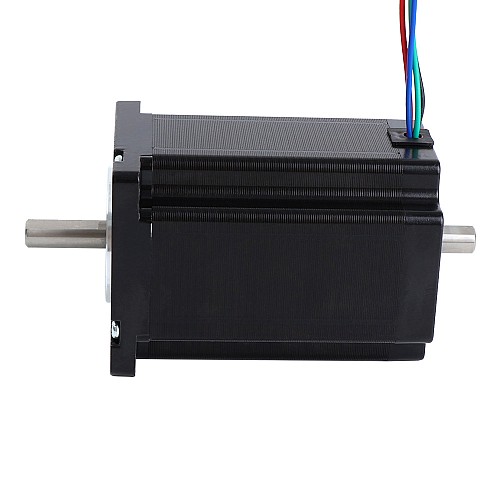

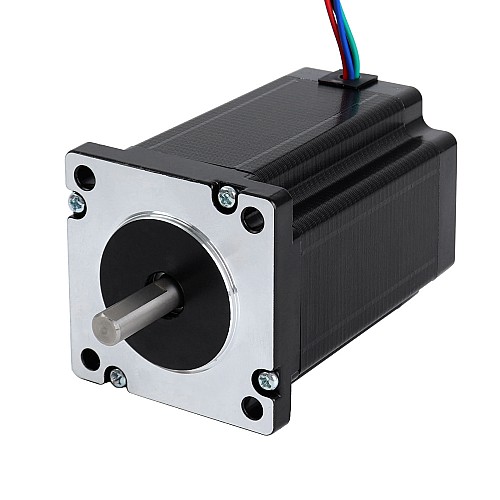

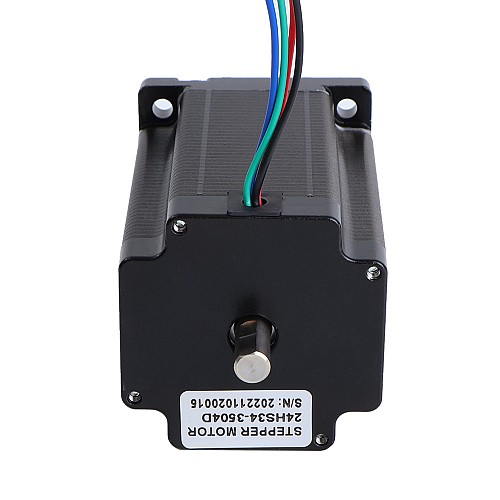

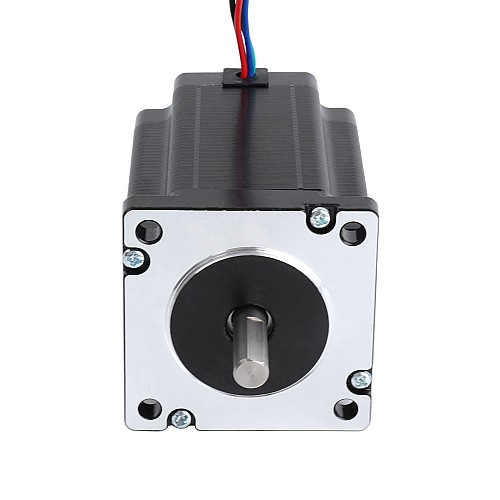

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 60x60x88mm. The installation dimensions are the same as the conventional Nema 23 motor, with greater torque. It has 4 wires, each phase draws 3.5A, with holding torque 3.1Nm(439oz.in). A rear shaft was made for encoder or equals.

Electrical Specification

Manufacturer Part Number: 24HS34-3504D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.1Nm(439oz.in)
Rated Current/phase: 3.5A
Phase Resistance: 1.1ohms
Inductance: 5.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 88mm
Shaft Diameter: Φ8mm
Front Shaft Length: 24mm
Rear Shaft Length: 15mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 600mm
Weight: 1.34kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The applicable bracket for this motor is ST-M2.

This motor is now available in a pack of 3. It has a better price. For more details, please see 3-24HS34-3504D.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	310
Holding Torque(oz.in)	439
Inductance(mH)	5.6
Phase Resistance(ohms)	1.1
Rated Current(A)	3.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	88
Frame Size(mm)	Nema 23 (60 x 60)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	600
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	1340
