Nema 34 CNC High Torque Stepper Motor 13Nm(1841oz.in) 5A 86x86x150mm

2 reviews - Write a review

C$106.77

5 + C$103.13

10 + C$99.71

50 + C$96.53

100 + C$93.54

In Stock: 10000
Model: 34HS59-5004S
Gross Weight: 5.55kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

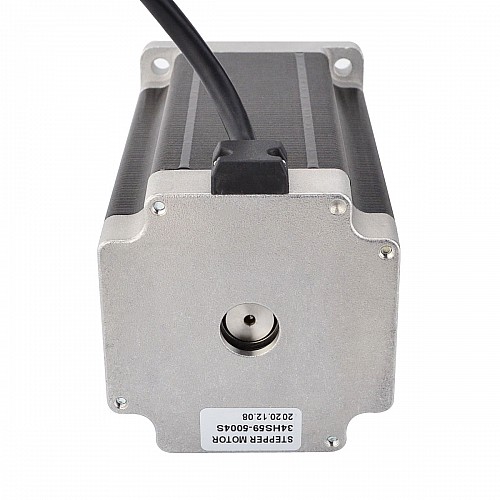

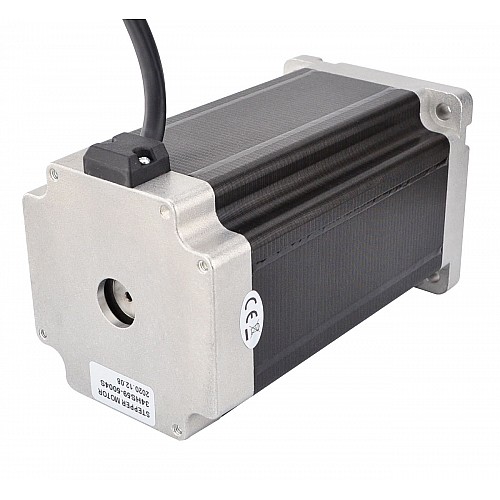

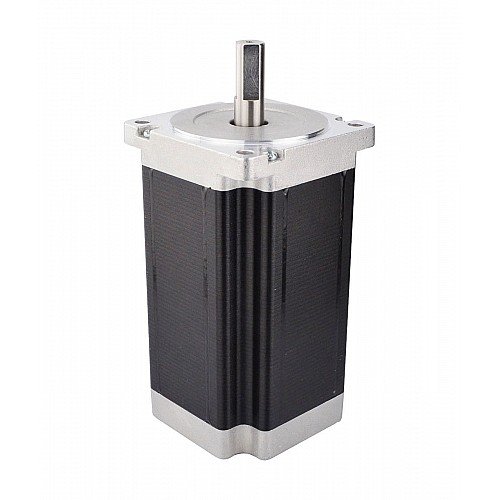

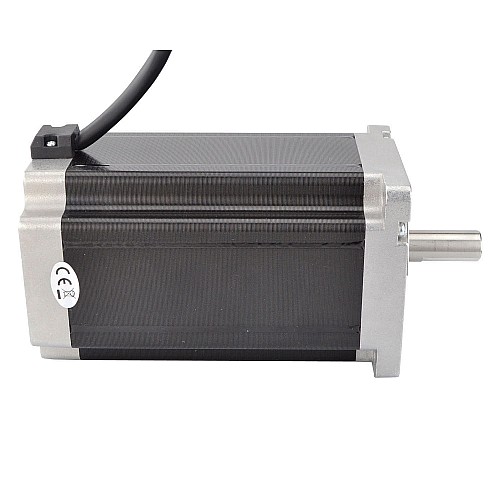

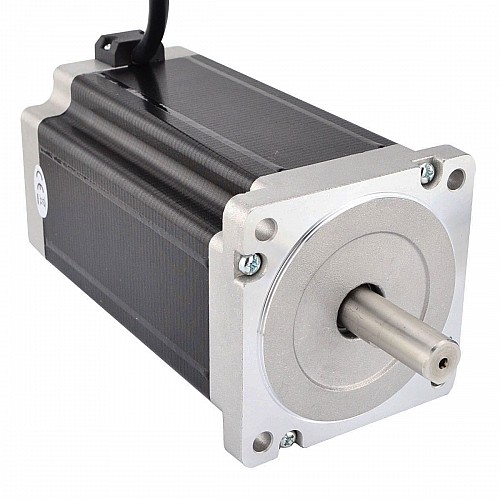

This is the strongest Nema 34 cnc stepper motor, it with size 86x86x150mm. It has 4 wires, each phase draws 5.0A, with holding torque 13Nm(1841oz.in).

Electrical Specification

Manufacturer Part Number: 34HS59-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 1.0ohms
Inductance: 11mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 300mm
Weight: 5.3kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

This model was discontinued. The replacement one is 34HS59-6004S.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1300
Holding Torque(oz.in)	1841
Inductance(mH)	11
Phase Resistance(ohms)	1
Rated Current(A)	5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	151.5
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	5300
