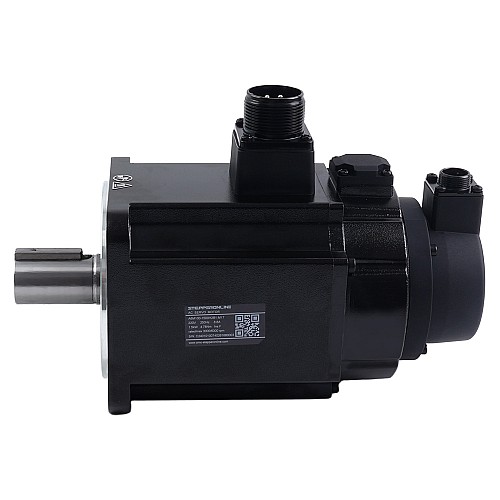

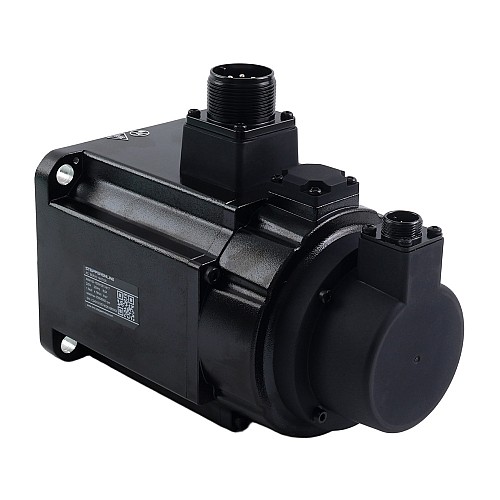

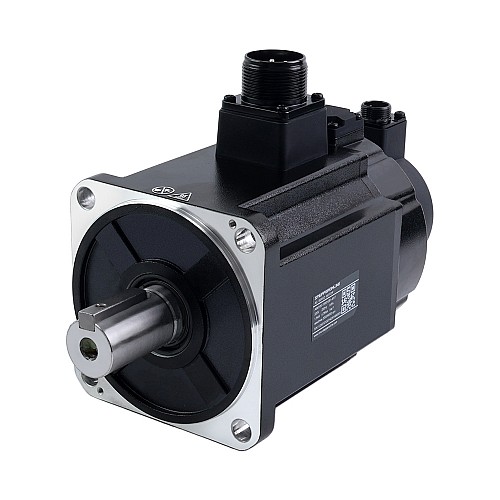

A6 Series 1500W EtherCAT AC Servo Motor Kit 3000rpm 4.90Nm w/ Brake 17-Bit Absolute Encoder IP67

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1500W motor with the built-in 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a single/three-phase 220V 1500W servo driver that supports EtherCAT communication. The motor provides excellent servo control performance.

This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-EC series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

• 1 x A6-1500EC: 1500W AC Servo Motor Driver
• 1 x A6M100-1500H2B1-M17: 1500W AC Servo Motor Kit 3000rpm 4.90Nm with Brake 17-Bit Absolute Encoder IP67
• 1 x AS7-C-PWB062-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

Servo Driver Specification

• Part Number: A6-1500EC
• EtherCAT communication
• 2KHz speed loop bandwith
• 17-bit absolute encoder
• Rated voltage single/three-phase 220VAC
• Rated power 1500W
• Dimension: 280*200*120mm

Servo Motor Specification

• Part Number: A6M100-1500H2B1-M17
• Rated Voltage: 220VAC
• Rated Power: 1500W
• Rated Torque: 4.90Nm
• Peak Torque: 14.70Nm
• Rated Speed: 3000rpm
• Peak Speed: 6000rpm
• Rated Current: 8.55A
• Peak Current: 15.65A
• Back EMF Const: 38.85V/krpm
• Resistance: 0.403ohms
• Inertia: 2.58kg*m²*10^-4
• Poles: 10
• Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
• IP Rating: IP67
• Shaft Diameter: 24mm
• Brake Voltage: 24V DC
• Brake Power: 8.5W
• Brake Holding Torque: 3.20Nm
• Axial Load: Max.196N
• Radial Load @ Shaft Length 45mm: Max.686N
