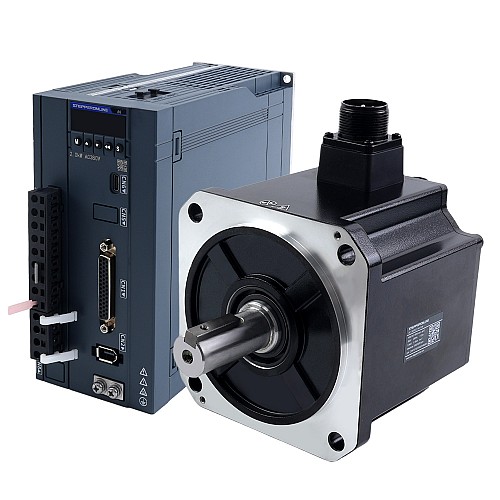

A6 Series 2000W RS485 AC Servo Motor Kit 3000rpm 6.37Nm 17-Bit Absolute Encoder IP67

This is an A6 series AC servo motor and driver kit consisting of a 380VAC 2000W motor and a three-phase 380V 2000W servo driver that supports Pulse/RS485/Analog communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

• 1 x A6-2000RS: 2000W AC Servo Motor Driver
• 1 x A6M100-2000H3A1-M17: 2000W AC Servo Motor Kit 3000rpm 6.37Nm 17-Bit Absolute Encoder IP67
• 1 x AS7-C-PWR062-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

Servo Driver Specification

• Part Number: A6-2000RS
• Pulse/RS485/Analog communication
• 2KHz speed loop bandwith
• 17-bit absolute encoder
• Rated voltage three-phase 380VAC
• Rated power 2000W
• Dimension: 280*200*120mm

Servo Motor Specification

• Part Number: A6M100-2000H3A1-M17
• Rated Voltage: 380VAC
• Rated Power: 2000W
• Rated Torque: 6.37Nm
• Peak Torque: 19.10Nm
• Rated Speed: 3000rpm
• Peak Speed: 6000rpm
• Rated Current: 6.95A
• Peak Current: 22.2A
• Torque Const: 0.917Nm/A
• Back EMF Const: 62.2V/krpm
• Resistance: 0.85ohms
• Inductance: 12.63mH
• Inertia: 3.65kg*m²*10^-4
• Poles: 10
• Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
• IP Rating: IP67
• Shaft Diameter: 24mm
• Axial Load: Max.196N
• Radial Load @ Shaft Length 45mm: Max.686N
