A6 Series 750W PROFINET AC Servo Motor Kit 3000rpm 2.39Nm 17-Bit Absolute Encoder IP67

0 reviews - Write a review

C$333.95

5 + C$322.52

10 + C$311.87

50 + C$301.88

100 + C$292.52

In Stock: 10000
Model: A6-PN750H2A1-M17
Gross Weight: 4.50kg
Certificated: ISO, CE

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

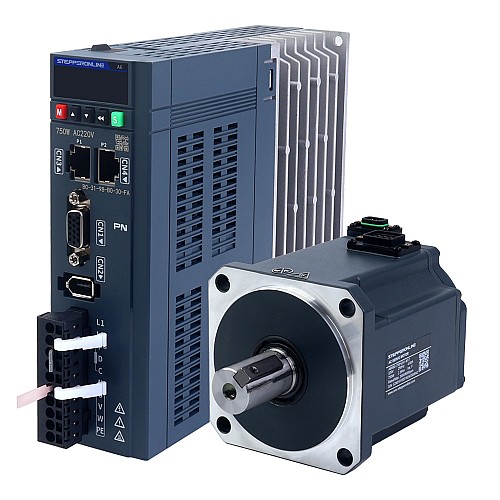

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 750W motor and a single-phase 220V 750W servo driver that supports PROFINET communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient. It has the characteristics of high response, high precision, high speed, high synchronization, etc., supporting one-button self-tuning and automatic inertia detectionetc.
The A6-PN series servo products feature in high cost-efficiency and are compatible with popular PLCs from brands such as Beckhoff and Omron, providing efficient and convenient motion control solutions for various industries.

Items in Kit

1 x A6-750PN: 750W PROFINET AC Servo Motor Driver
1 x A6M80-750H2A1-M17: 750W AC Servo Motor 3000rpm 2.39Nm 17-Bit Encoder IP67
1 x AS7-C-PWR075-3.0: 3.0m Motor Cable
1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

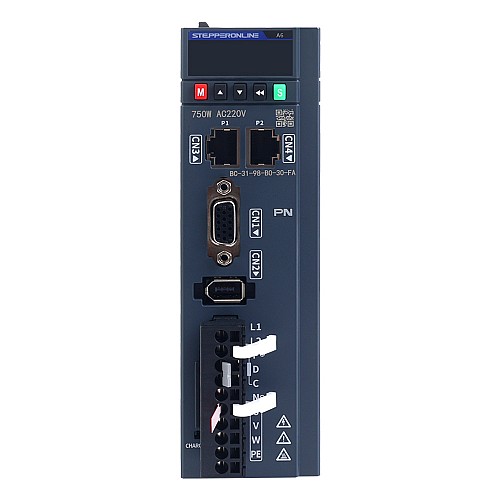

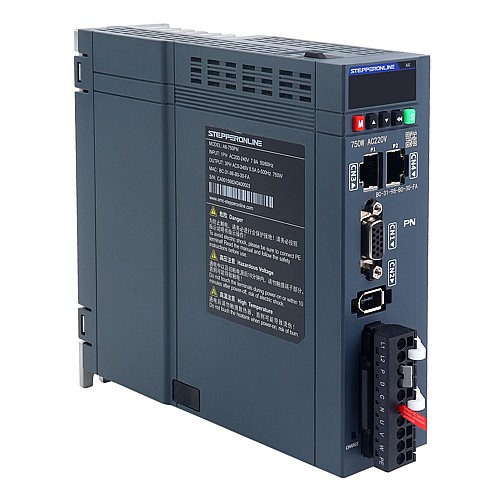

Servo Driver Specification

Part Number: A6-750PN
2KHz speed loop bandwith
17-bit absolute encoder
Rated voltage single phase 220VAC
Rated power 750W
Automatic motor identification
Dimension: 170*174*50mm
Standard PROFIDRIVE protocol, mainstream PROFINET communication PLCs

Servo Motor Specification

Part Number: A6M80-750H2A1-M17
Rated Voltage: 220VAC
Rated Power: 750W
Rated Torque: 2.39Nm
Peak Torque: 8.36Nm
Rated Speed: 3000rpm
Peak Speed: 6000rpm
Rated Current: 4.60A
Peak Current: 16.30A
Torque Const: 0.52N.m/A
Back EMF Const: 34.40V/krpm
Resistance: 0.47ohms
Inductance: 2.80mH
Inertia: 1.72kg*m²*10^-4
Poles: 10
Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
IP Rating: IP67
Shaft diameter: 19mm

Please download A6 series servo debug software here.

If you need longer motor and encoder cable combination, 5m or 10m options are available.

The default encoder in this servo motor can be used as a multi-turn absolute encoder, but it requires a 3m, 5m or 10m encoder cable which has a battery box.

If your power supply voltage is 110VAC, you need to use this transformer TR900-A220-A120 when using this servo motor.

How to choose the correct Type-C debugging cable? Please refer to this article.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

Electrical Specification
Control Modes	PROFINET
Encoder Resolution	17bit
Encoder Type	Magnetic Absolute
Input Voltage(V)	220VAC
Peak Speed(rpm)	6000
Peak Torque(Nm)	8.36
Rated Power(W)	750
Rated Speed(rpm)	3000
Rated Torque(Nm)	2.39
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	80 x 80
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	67
Shaft Diameter(mm)	19

File	Size
A6M80-750H2A1-M17.STEP	6.44MB	Download
A6M80-750H2A1-M17_Full_Datasheet.pdf	165.04KB	Download
AS7-C-PWR075-3.0.pdf	110.05KB	Download
A6-750PN.stp	14.95MB	Download
AS7-C-ENC076-3.0_Full_Datasheet.pdf	108.54KB	Download
A6-PN_Series_Servo_Drive_Manual.pdf	28.11MB	Download
A6-PNGSD20250822.7z	12.19KB	Download
