A6H Series 2900W EtherCAT AC Servo Motor Kit 1500rpm 18.60Nm 17-Bit Absolute Encoder IP67

This is an A6H series AC servo motor and driver kit consisting of a 380VAC 2900W motor and a three-phase 380V 3000W servo driver that supports EtherCAT communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This motor is a high-inertia type, suitable for applications that require high load capacity, such as traditional machine tool industry, rack and pinion transmission mechanisms, etc.
The A6-EC series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

• 1 x A6-3000EC: 3000W AC Servo Motor Driver
• 1 x A6M180-2900H3A1-M17: 2900W AC Servo Motor Kit 1500rpm 18.60Nm 17-Bit Absolute Encoder IP67

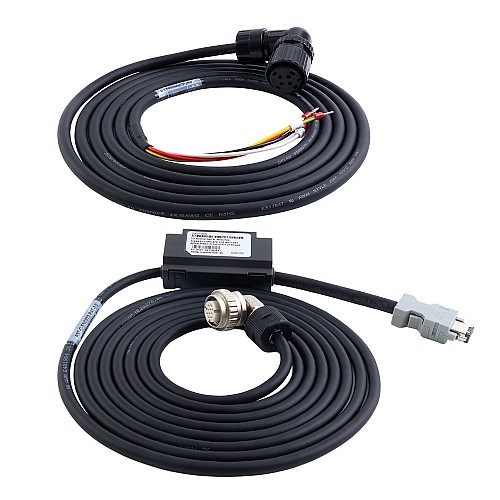

• 1 x AS7-C-PWR053-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

Servo Driver Specification

• Part Number: A6-3000EC
• EtherCAT communication
• 2KHz speed loop bandwith
• 17-bit absolute encoder
• Rated voltage three-phase 380VAC
• Rated power 3000W
• Dimension: 280*200*120mm

Servo Motor Specification

• Part Number: A6M180-2900H3A1-M17
• Rated Voltage: 380VAC
• Rated Power: 2900W
• Rated Torque: 18.60Nm
• Peak Torque: 46.50Nm
• Rated Speed: 1500rpm
• Peak Speed: 3000rpm
• Rated Current: 10.26A
• Peak Current: 25.81A
• Back EMF Const: 118.69V/krpm
• Resistance: 0.601ohms
• Inertia: 46.19kg*m²*10^-4
• Poles: 10
• Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
• IP Rating: IP67
• Shaft Diameter: 35mm
• Axial Load: Max.490N
• Radial Load @ Shaft Length 79mm: Max.1470N
