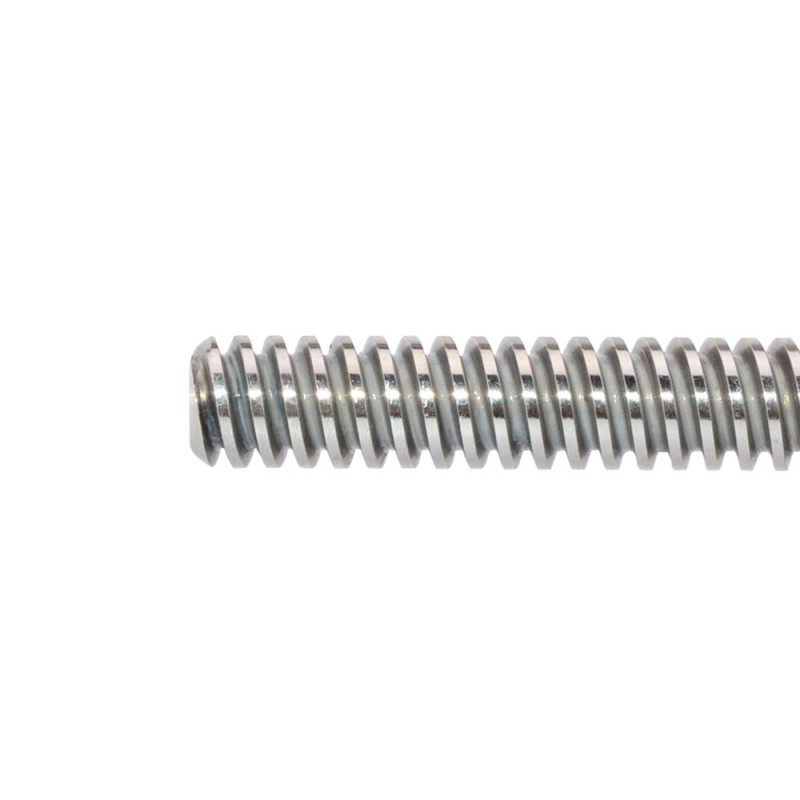

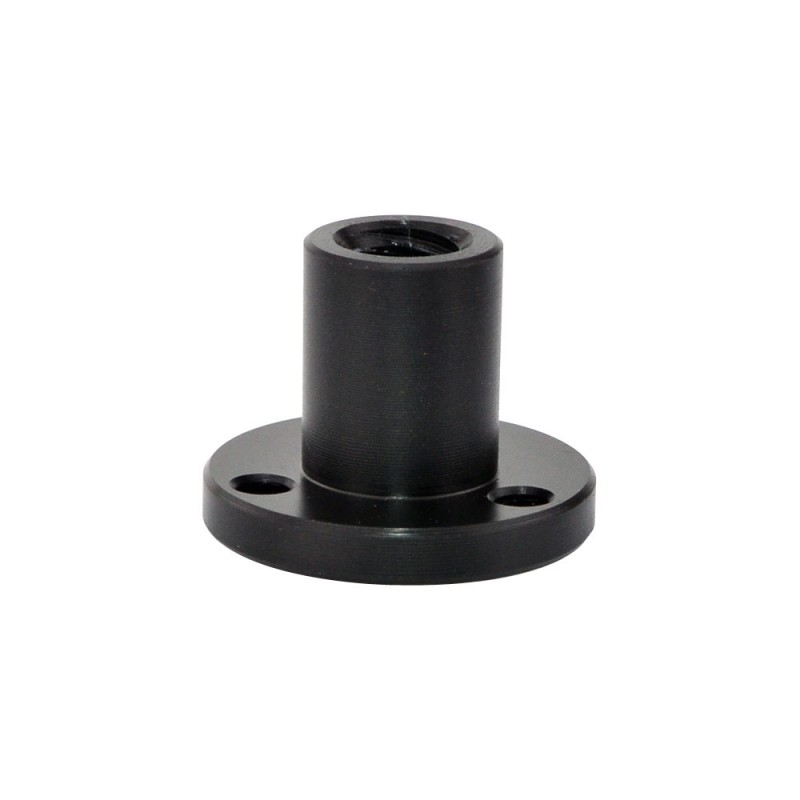

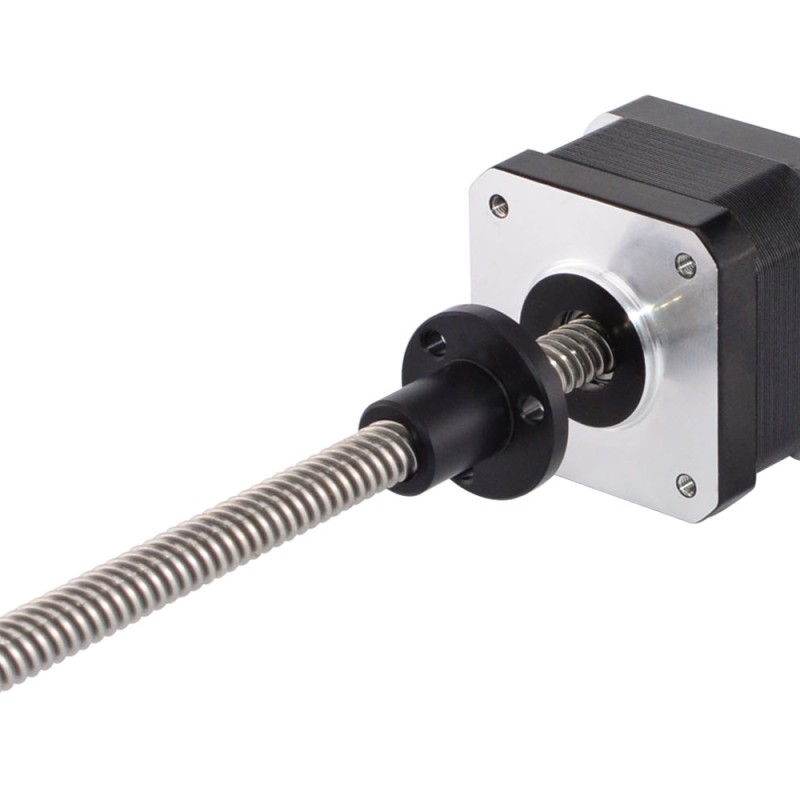

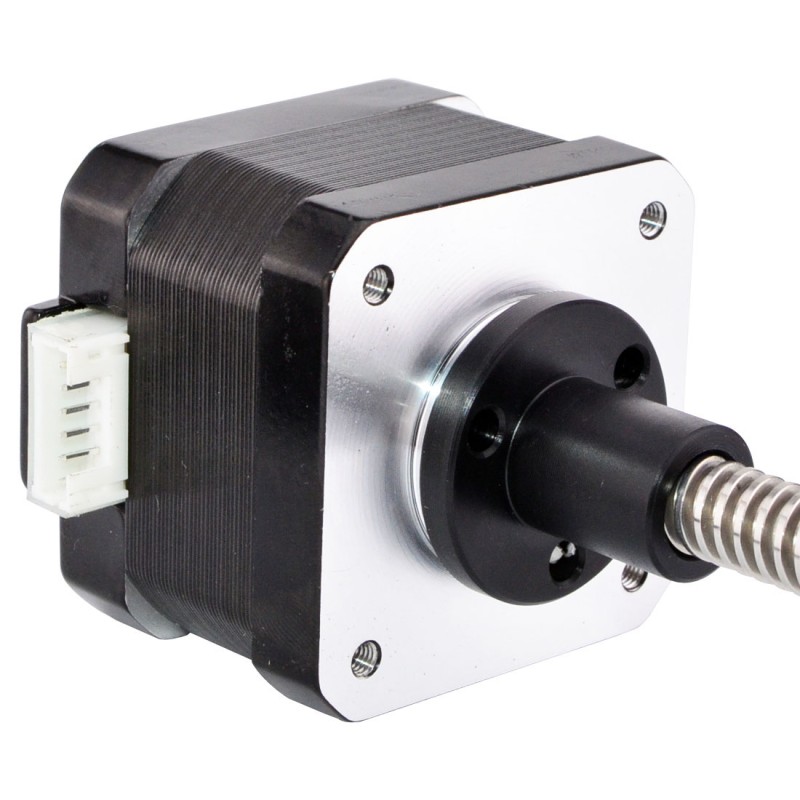

This is economy linear stepper motor which is named Nema 17 external linear actuator with a holding torque of 26Ncm(36.82oz.in), the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 200mm Tr8x8 threaded rod and has a POM nut that moves along the threaded rod.

Electrical Specification

Manufacturer Part Number: 17E13S0404MB2-200RS(17E13S0404MB-200RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Holding Torque: 26Ncm(36.82oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 37mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 200mm(7.874")
Lead Screw Diameter: Φ8mm(0.315")
Lead/Step:0.04mm(0.0015748")
Lead/Revolution: 8mm(0.315")
Number of Leads: 4
Cable Length: 400mm
Weight: 400g

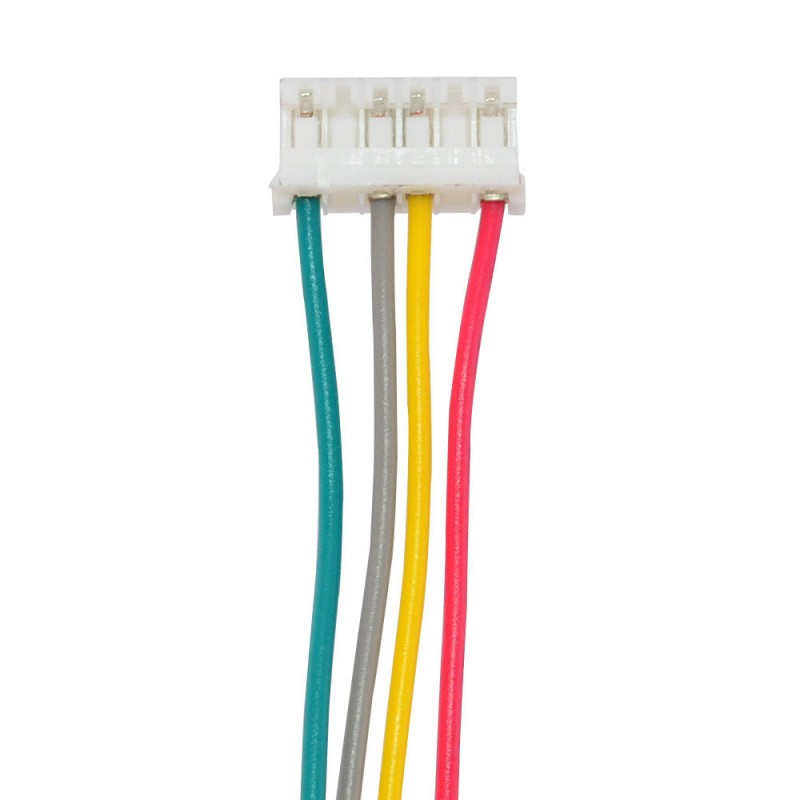

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	26
Holding Torque(oz.in)	36.82
Inductance(mH)	37
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
IP Rating	40
Lead Length(mm)	400
Lead Screw Diameter(mm)	8
Lead Screw Length(mm)	200
Lead Travel/Revolution(mm)	8
Lead Travel/Step(mm)	0.04
Linear Motor Type	External (Trapezoidal)
No. of Lead	4

Also Bought

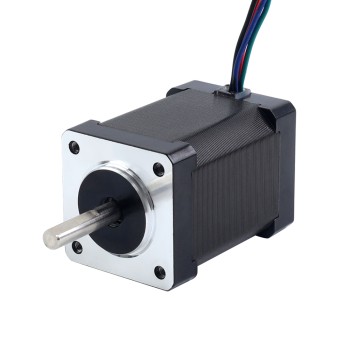

Nema 14 Bipolar 1.8deg 40Ncm(56.64oz.in) 1.5A 35x35x52mm 4 Wires

This Nema 14 stepper motor is the strongest model in Nema 14 size motors, it with step angle 1.8deg and size 35x35x52mm. It has 4 wires, each phase dr..

from

C$20.98

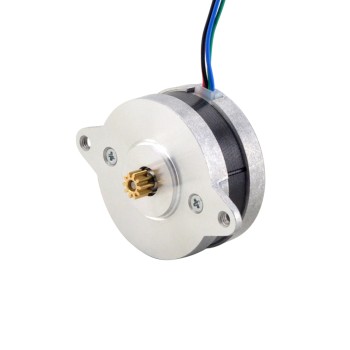

Round Nema 14 Bipolar 0.9deg 9Ncm(12.75oz.in) 1.0A Φ36x17.5mm 4 Wires for Voron Stealthburner

Electrical SpecificationManufacturer Part Number: 14HR07-1004VRN Motor Type: Bipolar Stepper Step Angle: 0.9deg Holding Torque: 9Ncm(12.75oz.i..

from

C$20.05

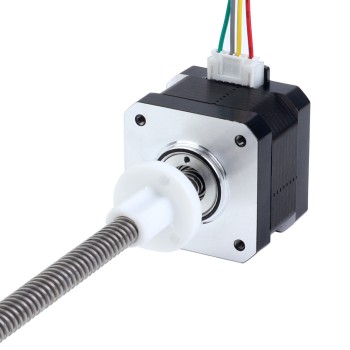

Nema 17 External 34mm Stack 0.4A Lead 8mm(0.31496") Length 150mm

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor...

from

C$26.77

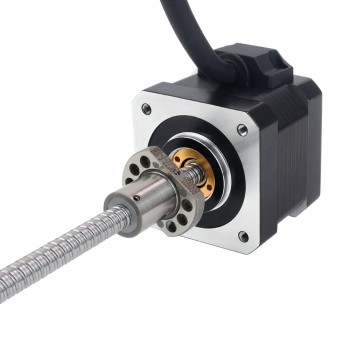

NEMA 17 External Ball Screw Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm

This model is a Nema 17 ball screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a..

from

C$148.47

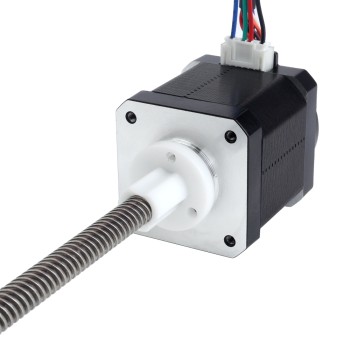

NEMA 17 External Trapezoidal Linear Stepper Motor 1.68A 48mm Stack w/ Magnetic Encoder 1000PPR(4000CPR)

This linear motor is the J5 motor in AR4-MK4/5 kit. It is composed of a 48mm long motor with 1.68A rated current, 1.8 degree step angle, a 200mm ..

from

C$94.83

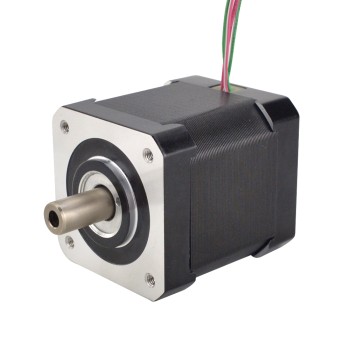

Nema 17 Hollow Shaft Stepper Motor Bipolar 0.36Nm(51oz.in) 1.5A 42x42x47.75mm

Electrical SpecificationManufacturer Part Number: 17HS19-1504H Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 0.36Nm(51oz.in) ..

from

C$25.53

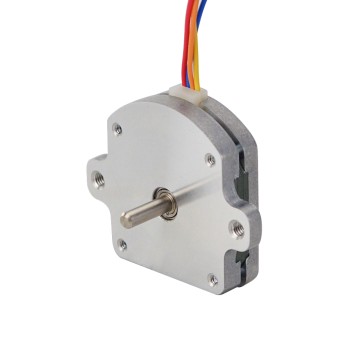

Pancake Nema 11 Bipolar 1.8deg 1Ncm(1.4164oz.in) 0.5A 28x28x9.5mm 4 Wires

This bipolar pancake Nema 11 stepper motor with step angle 1.8deg and size 28x28x9.5mm. It has 4 wires, each phase draws 0.5A, with holding torque 1Nc..

from

C$33.60

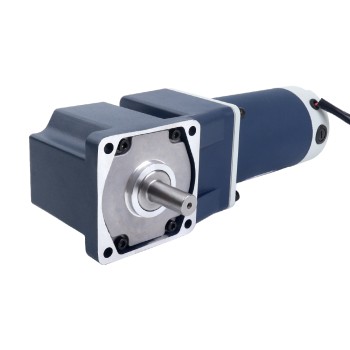

Brushed 24V 150W 16.77Nm(2374.83oz.in) 60RPM w/ 30:1 Right Angle Gearbox DC Gear Motor
