Nema 14 Bipolar 1.8deg 40Ncm(56.64oz.in) 1.5A 35x35x52mm 4 Wires

18 reviews - Write a review

C$19.31

5 + C$18.40

10 + C$17.57

50 + C$16.81

100 + C$16.12

In Stock: 10000
Model: 14HS20-1504S
Gross Weight: 0.38kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

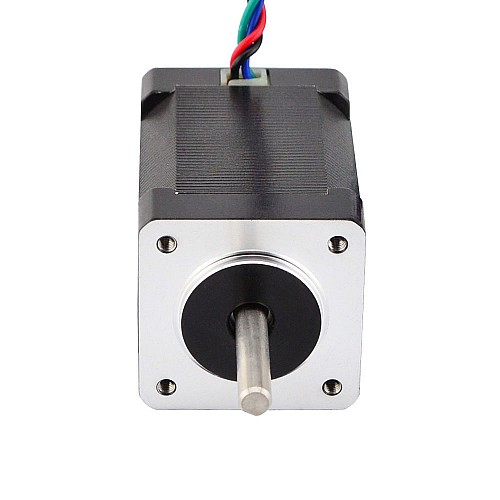

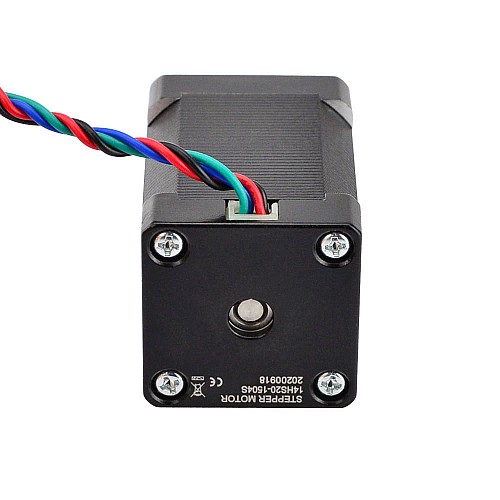

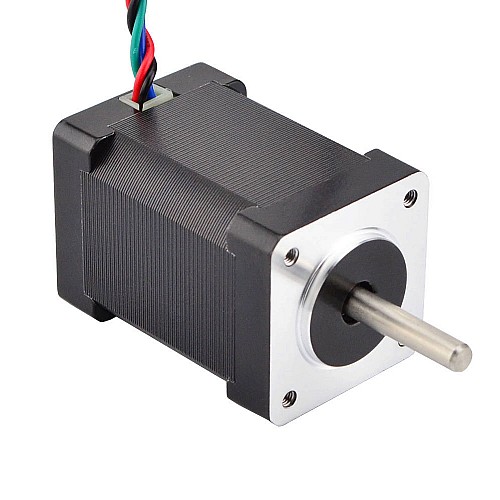

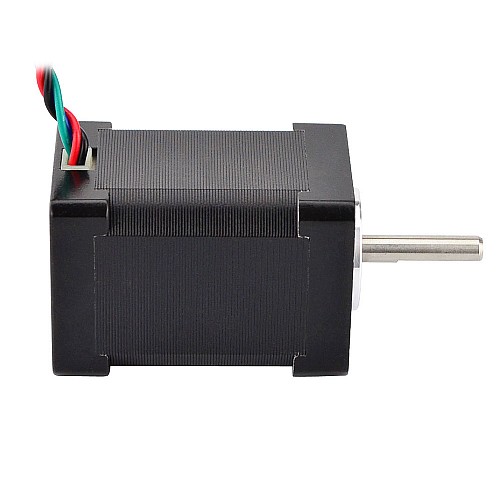

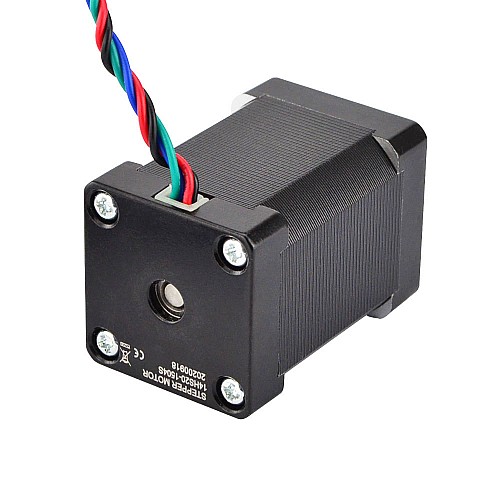

This Nema 14 stepper motor is the strongest model in Nema 14 size motors, it with step angle 1.8deg and size 35x35x52mm. It has 4 wires, each phase draws 1.5A at 4.2V, with holding torque 40Ncm(56.64oz.in).

Electrical Specification

Manufacturer Part Number: 14HS20-1504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 40Ncm(56.64oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 2.8ohms
Inductance: 3.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 52mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Cable Length: 400mm
Weight: 350g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	40
Holding Torque(oz.in)	56.64
Inductance(mH)	3.8
Phase Resistance(ohms)	2.8
Rated Current(A)	1.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	52
Cable Length(mm)	400
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	350
