Pancake Nema 11 Bipolar 1.8deg 1Ncm(1.4164oz.in) 0.5A 28x28x9.5mm 4 Wires

Hot

Pancake Nema 11 Bipolar 1.8deg 1Ncm(1.4164oz.in) 0.5A 28x28x9.5mm 4 Wires

5 reviews - Write a review

C$34.29

5 + C$32.18

10 + C$30.31

50 + C$28.65

100 + C$27.16

In Stock: 10000
Model: 11HS04-0504S
Gross Weight: 0.08kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

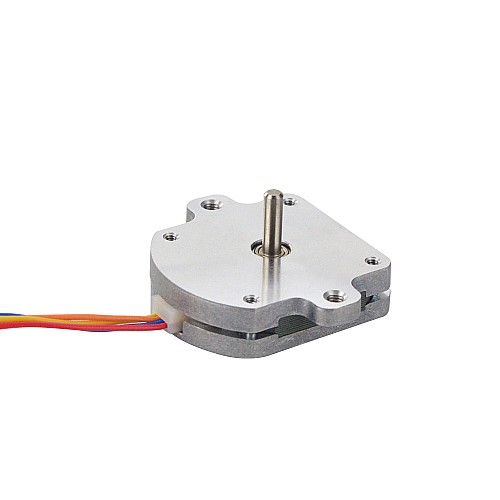

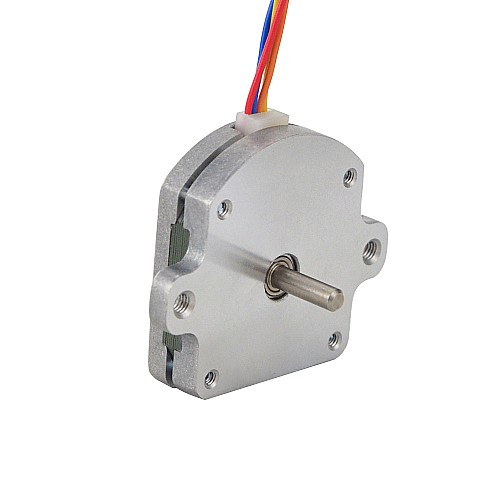

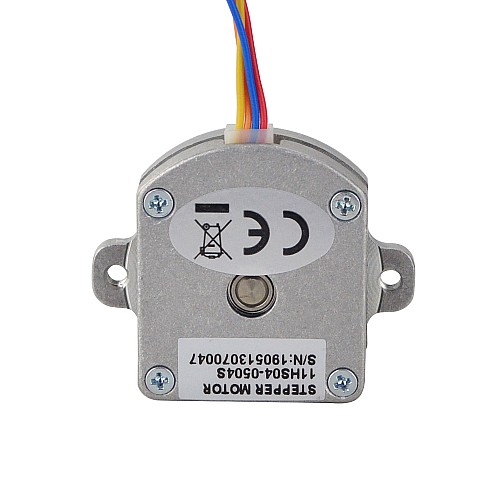

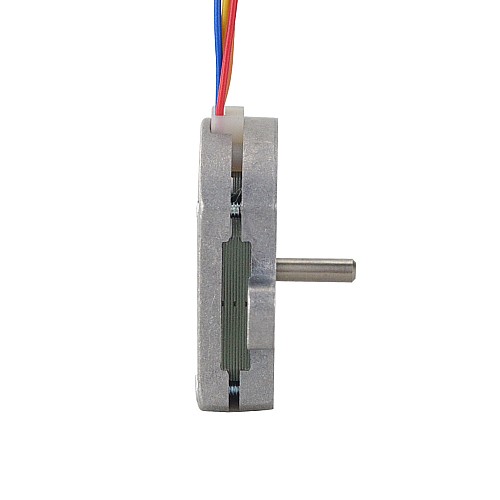

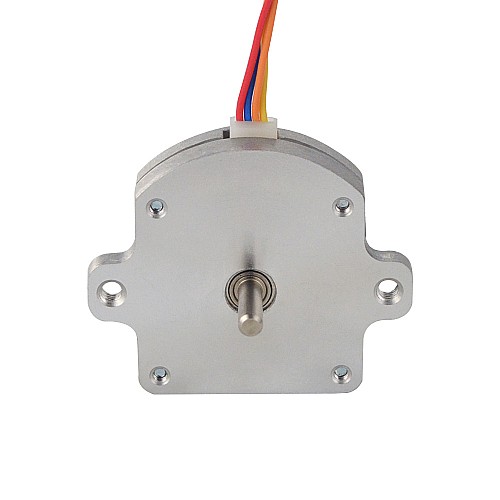

This bipolar pancake Nema 11 stepper motor with step angle 1.8deg and size 28x28x9.5mm. It has 4 wires, each phase draws 0.5A, with holding torque 1Ncm(1.4164oz.in).

Electrical Specification

Manufacturer Part Number: 11HS04-0504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1Ncm(1.4164oz.in)
Rated Current/phase: 0.5A
Phase Resistance: 4ohms
Inductance: 0.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 9.5mm
Shaft Diameter: Φ3mm
Shaft Length: 10mm
Number of Leads: 4
Lead Length: 300mm
Weight: 28g

Connection

A+	A-	B+	B-
Red	Blue	Orange	Yellow

Product Type
Product Type	Pancake Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1
Holding Torque(oz.in)	1.416
Inductance(mH)	0.8
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	4
Rated Current(A)	0.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	9.5
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	3
Shaft Length(mm)	10
Single Shaft/Dual Shaft	Single Shaft
