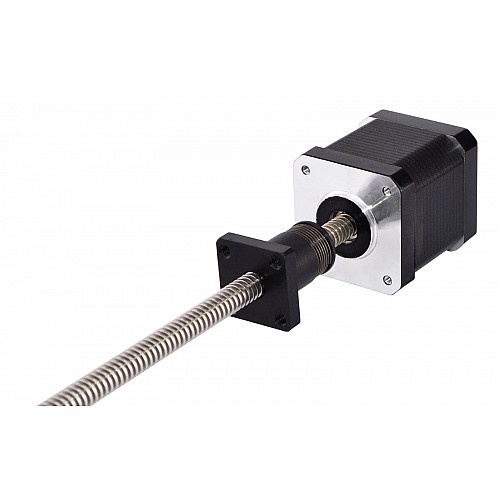

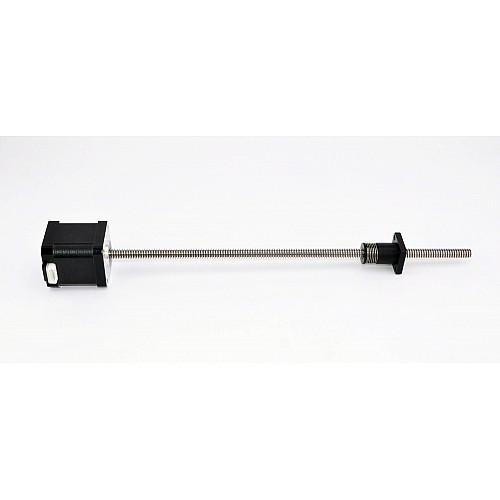

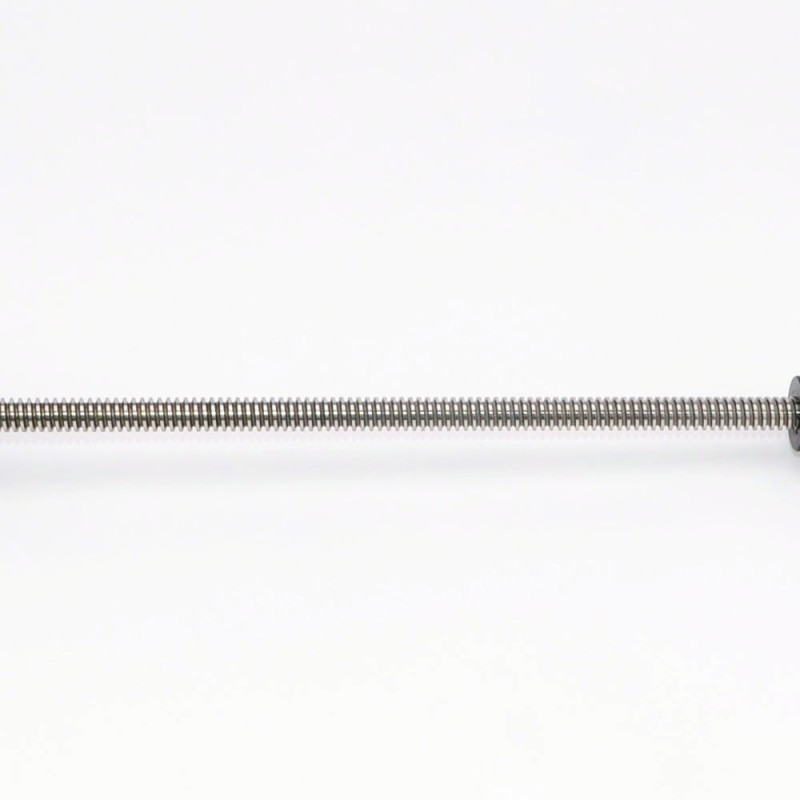

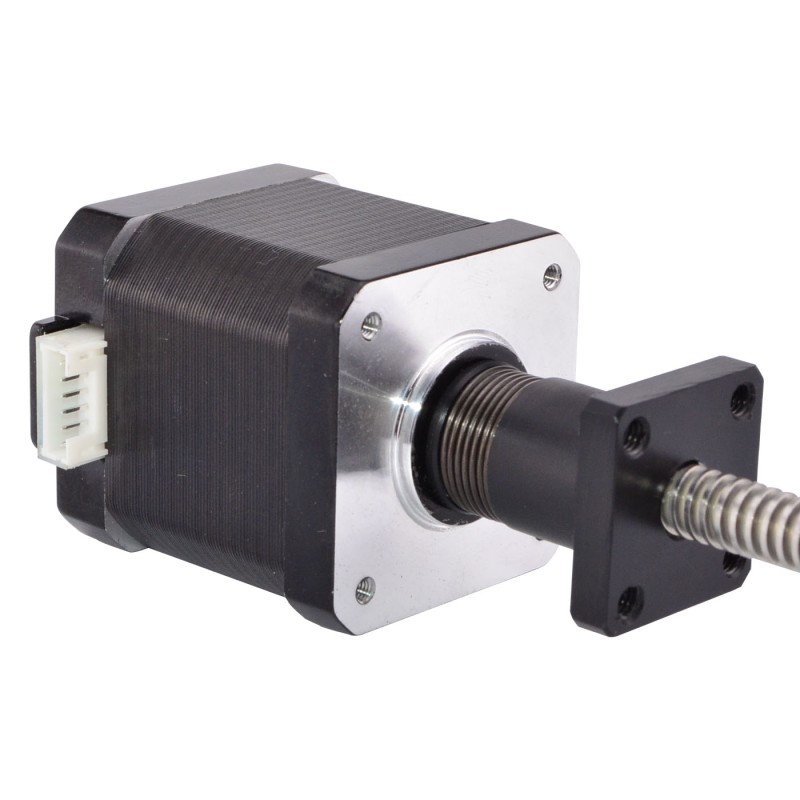

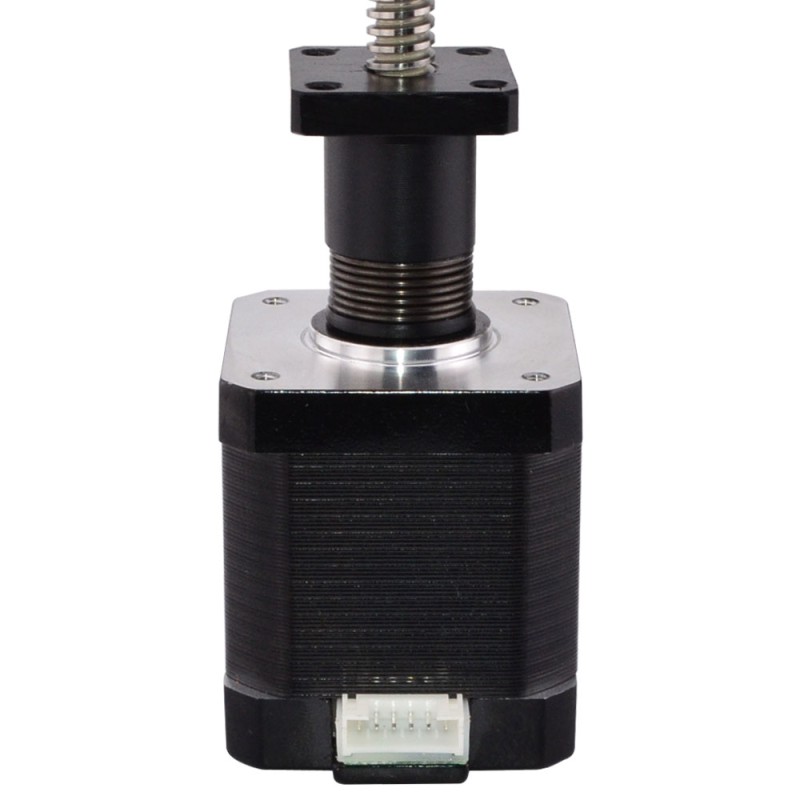

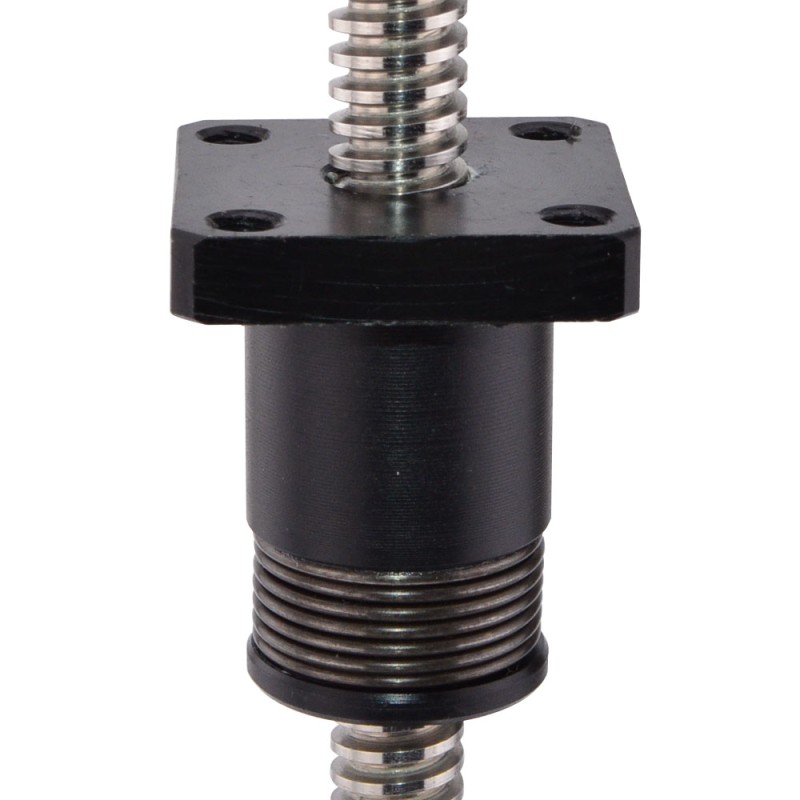

Anti-backlash Screw Nut Nema 17 External 48mm Stack 1.68A Lead 2mm(0.07874") Length 330mm
This linear motor integrated with 330mm Tr8x2 threaded rod and a Anti-backlash screw nut move along ... Read More
0 reviews • Write a review
from
C$67.14
5 + C$64.37
10 + C$61.81
50 + C$59.46
100 + C$57.28

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

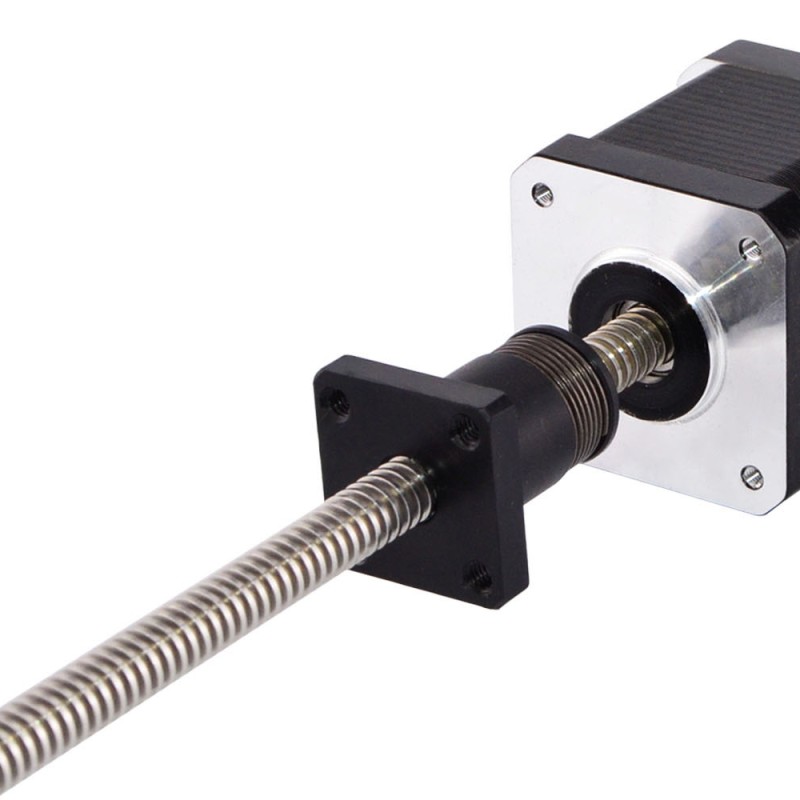

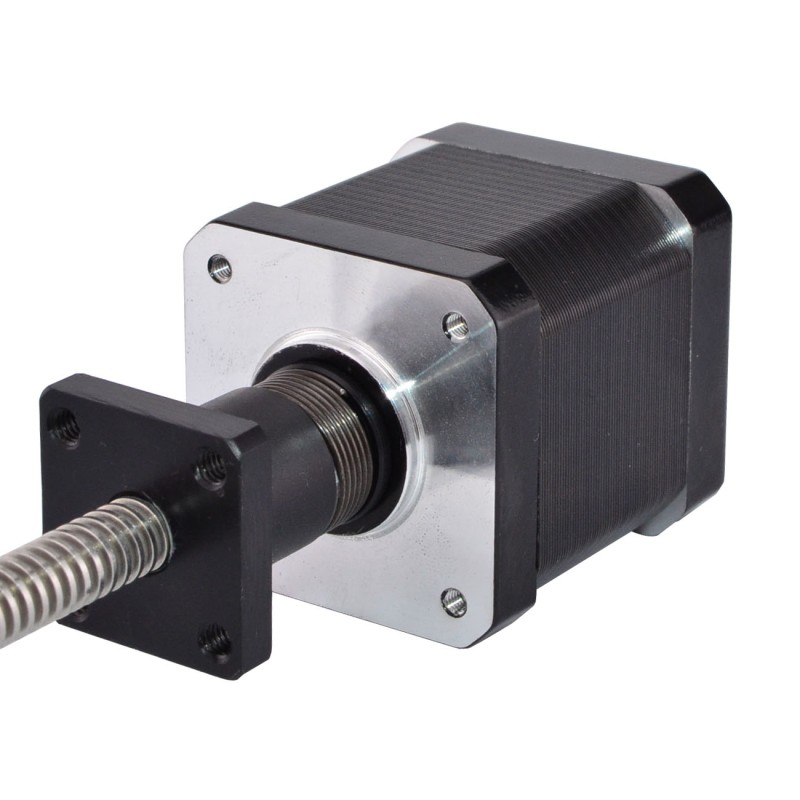

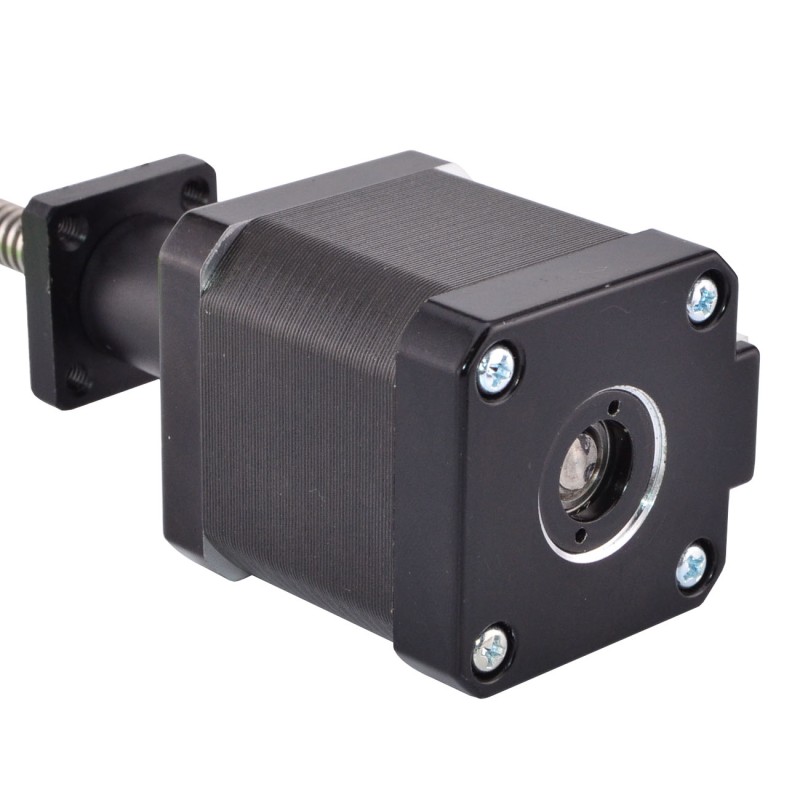

This linear motor integrated with 330mm Tr8x2 threaded rod and a Anti-backlash screw nut move along the threaded rod. With Anti-backlash screw nut, the motor part is a 1.68A 48mm 1.8 degree 4 wires Nema 17 stepper motor.

Electrical Specification

  • Manufacturer Part Number: 17E19S1684AB4-330RA
  • Motor Type: External (Trapezoidal)
  • Step Angle: 1.8deg
  • Holding Torque: 0.44Nm(62.31oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Inductance: 2.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 330mm(12.992")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Gray
Yellow
Green
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 44
Inductance(mH) 2.8
Phase Resistance(ohms) 1.65
Rated Current(A) 1.68
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
Lead Length(mm) 500
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 330
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Linear Motor Type External (Trapezoidal)
No. of Lead 4

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
NEMA 8 External Ball Screw Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm
NEMA 8 External Ball Screw Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm
This model is a Nema 8 ball screw linear stepper motor with a 38.2mm body length, 1.8 degree step angle and 0.5A rated current. It is integrated with ..
from
C$154.41
Add to Cart
Add to Wish List Compare this Product
Quickview

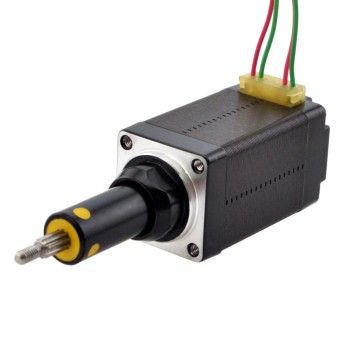

NEMA 8 Captive Acme Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 2mm(0.07874") Travel 19.1mm
NEMA 8 Captive Acme Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 2mm(0.07874") Travel 19.1mm
This model is a Nema 8 Captive ACME screw linear stepper motor with a 38.2mm body length, 1.8 degree step angle and 0.5A rated current. It is integrat..
from
C$89.07
Add to Cart
Add to Wish List Compare this Product
Quickview
NEMA 11 Non-Captive Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 1.27mm(0.05") Lead Length 200mm
Pre-order
NEMA 11 Non-Captive Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 1.27mm(0.05") Lead Length 200mm
This is integrated with a Φ4.76mm(0.1874") diameter, 200mm(7.874") lead screw length and  the linear travel is 1.27mm(0.05") per revolution. ..
from
C$53.45
Add to Cart
Add to Wish List Compare this Product
Quickview

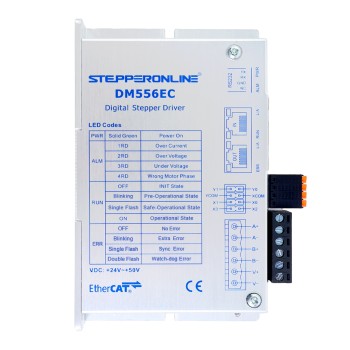

Y Series EtherCAT Digital Stepper Driver 0-5.6A 24-50VDC for Nema 23, 24, 34 Stepper Motor
