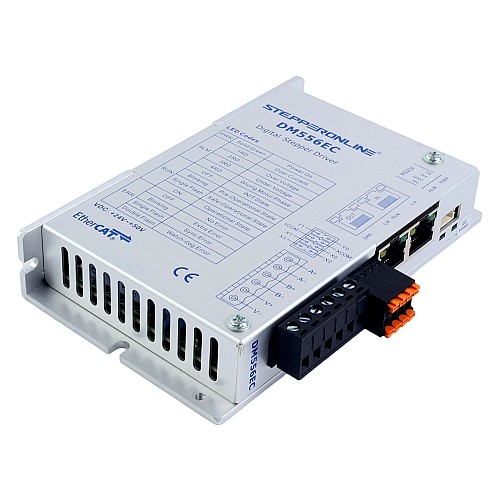

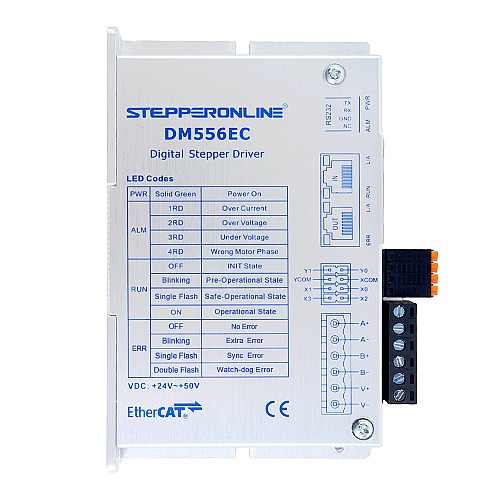

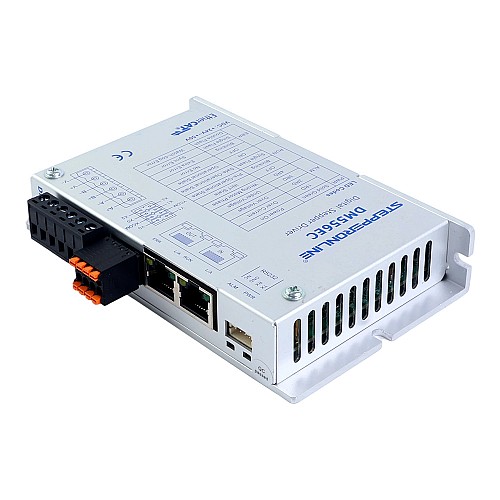

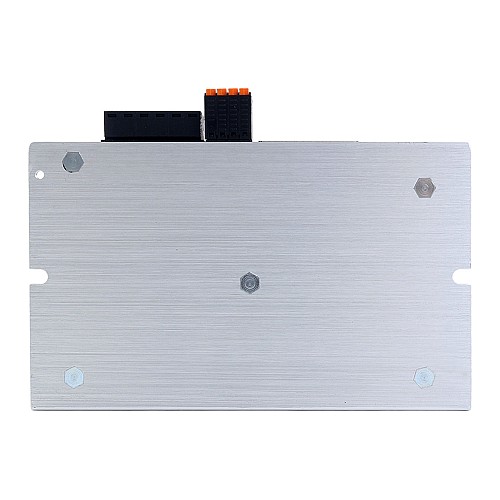

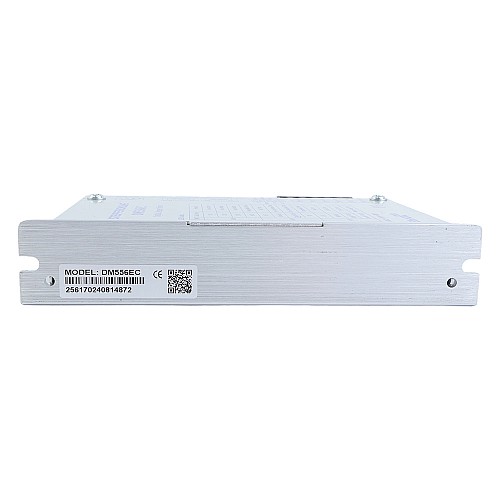

Y Series EtherCAT Digital Stepper Driver 0-5.6A 24-50VDC for Nema 23, 24, 34 Stepper Motor

The DM556EC is a high-performance open-loop driver with 32-bit DSP technology, operating at 24-50VDC and supporting up to 5.6A current. It features 100Mbps full-duplex EtherCAT communication with CoE (CiA 402) support. The driver offers multiple modes—Cyclic Sync Position, Profile Position, Velocity, and Homing—and includes dual RJ45 ports, optically isolated I/O, and flexible microstepping up to 51200. Smooth current control ensures low noise, low vibration, and minimal motor heating, with built-in protection against overvoltage, undervoltage, and overcurrent.

Key Features

• New generation 32-bit DSP technology, high cost performance, good stability, low noise, low vibration
• Based on 100BASE-TX Ethernet transmission standard, transmission rate up to 100Mbps, full- duplex communication
• Supports CANopen over EtherCAT (CoE) and complies with CiA 402 standards
• Cyclic Sync Position,Profile Position,Profile Velocity, Homing and other working modes are supported

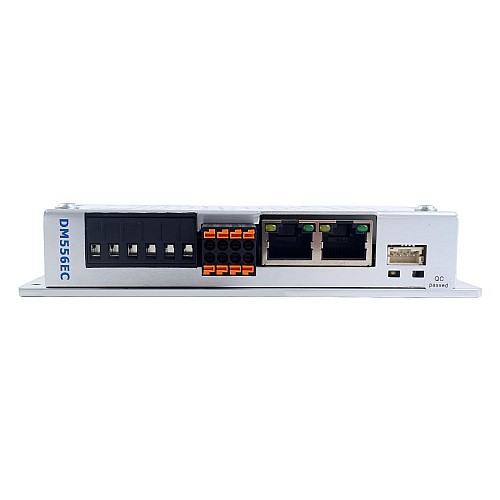

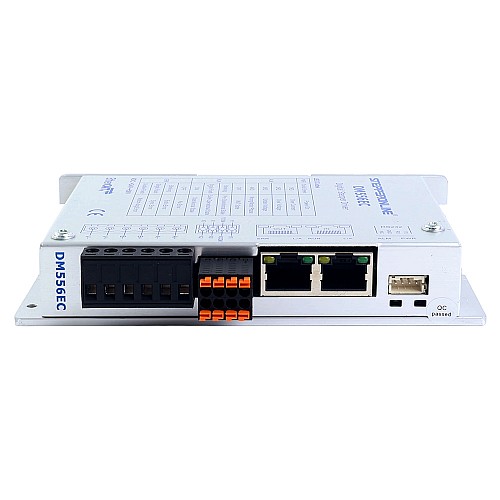

• A double-port RJ45 connector is used for EtherCAT communication
• Four optical isolation input ports with 12V to 24V input
• Two optical isolation output ports
• Subdivision 400~51200 arbitrary Settings, support electronic gear
• Smooth and accurate current control, low motor heat
• Has over voltage, under voltage, over current and other protection functions

Electrical Specifications

• Output Peak Current: 0 - 5.6A(0 - 4.0RMS)
• Input Supply Voltage: 24 - 50VDC(Typical 24/48V)
• Logic input current: 5 - 50mA(Typical 10mA)
• Logic input voltage: 12 - 24V(Typical 24V)
• Insulation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Stay away from other heating equipment, avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust are prohibited
• Ambient Temperature: 0 - 50℃
• Humidity: 40% - 90%RH
• Operating Temperature: 50℃ MAX
• Vibration: 10-50Hz/0.15mm
• Storage Temperature: -20 - 70℃
• Weight: Approx.244g(8.61oz)

Packing List

• 1 x DM556EC Driver
• 1 x CABLE-PC-2 (RS232 debugging cable)
