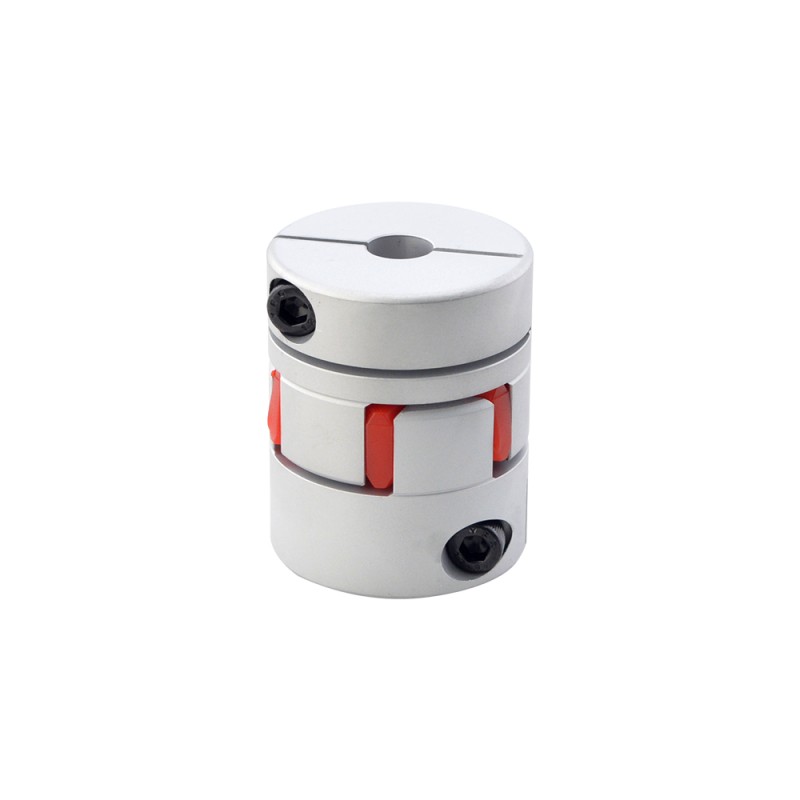

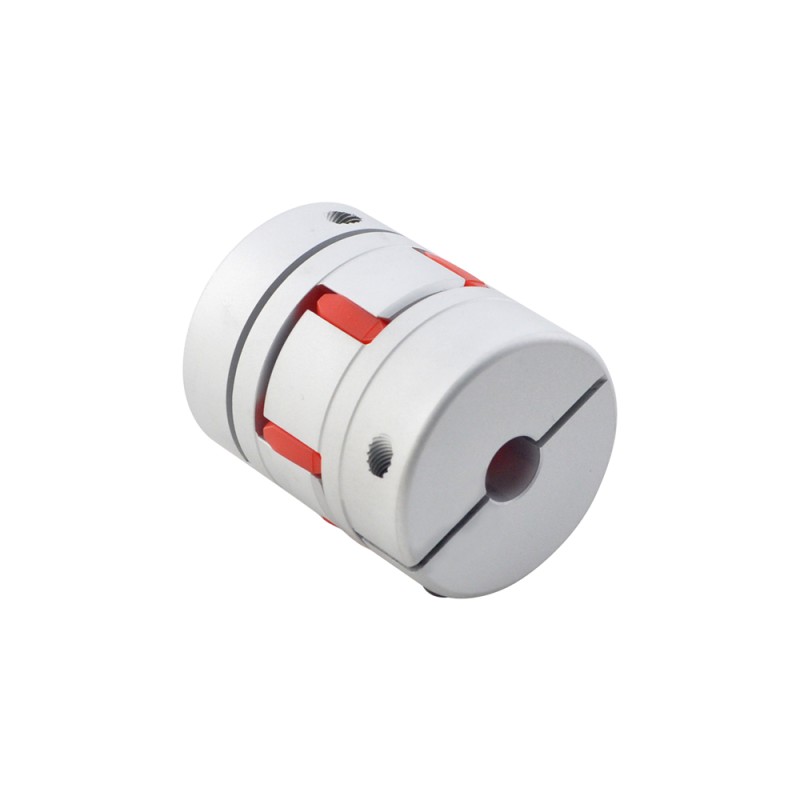

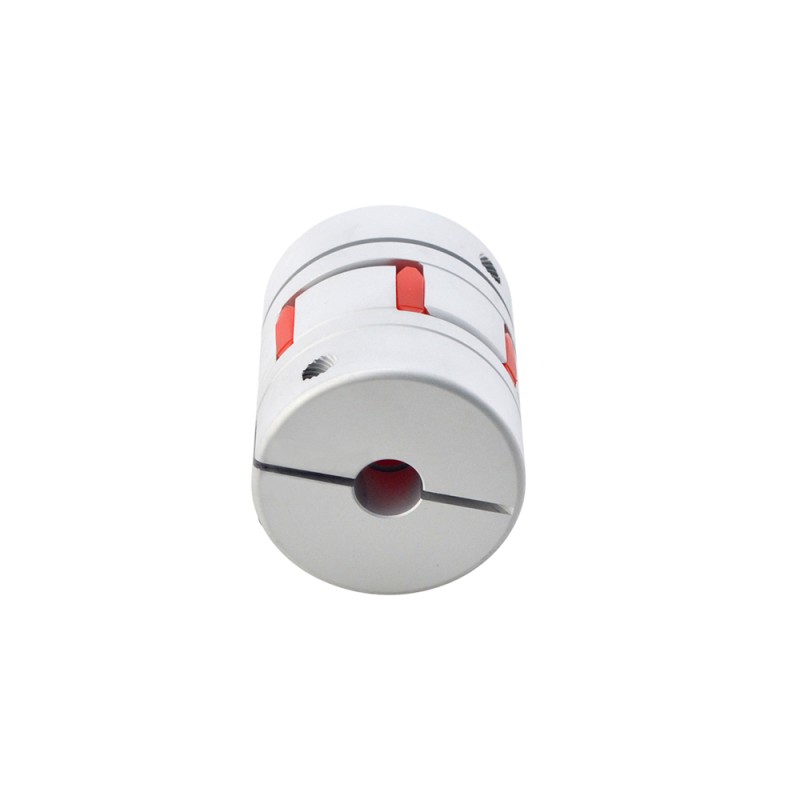

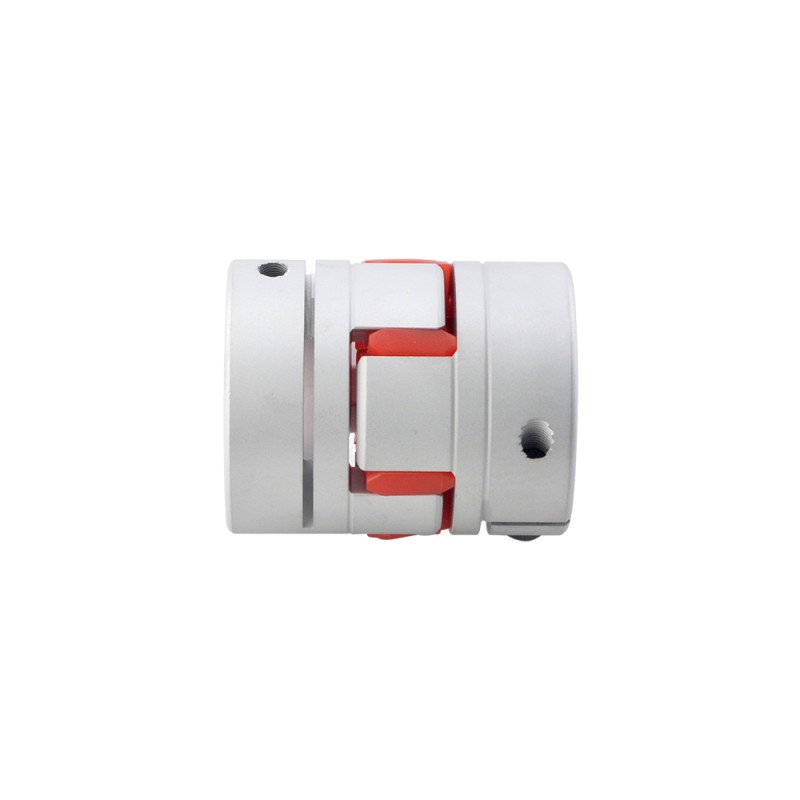

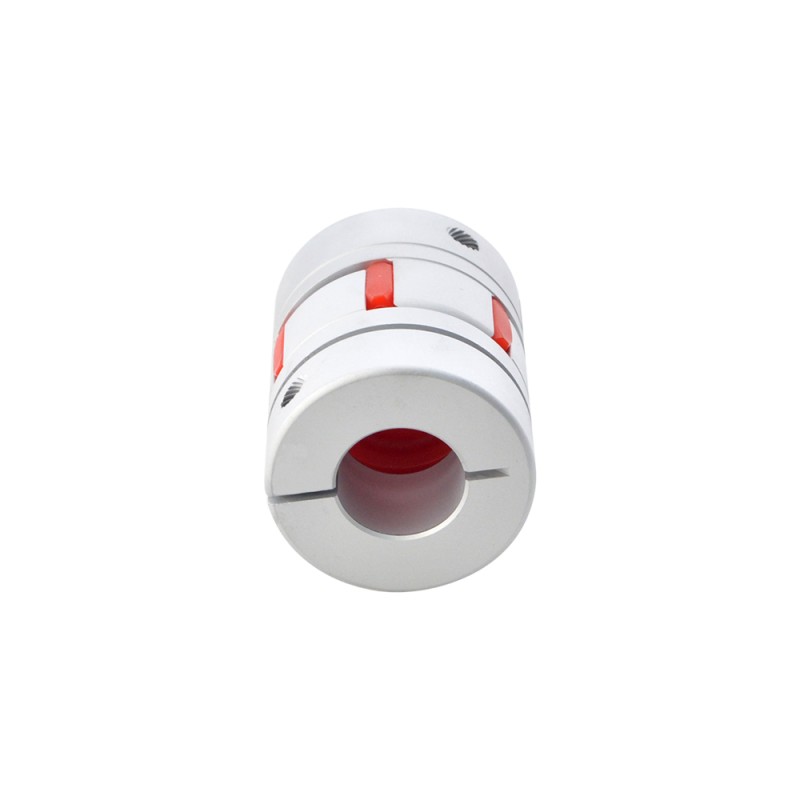

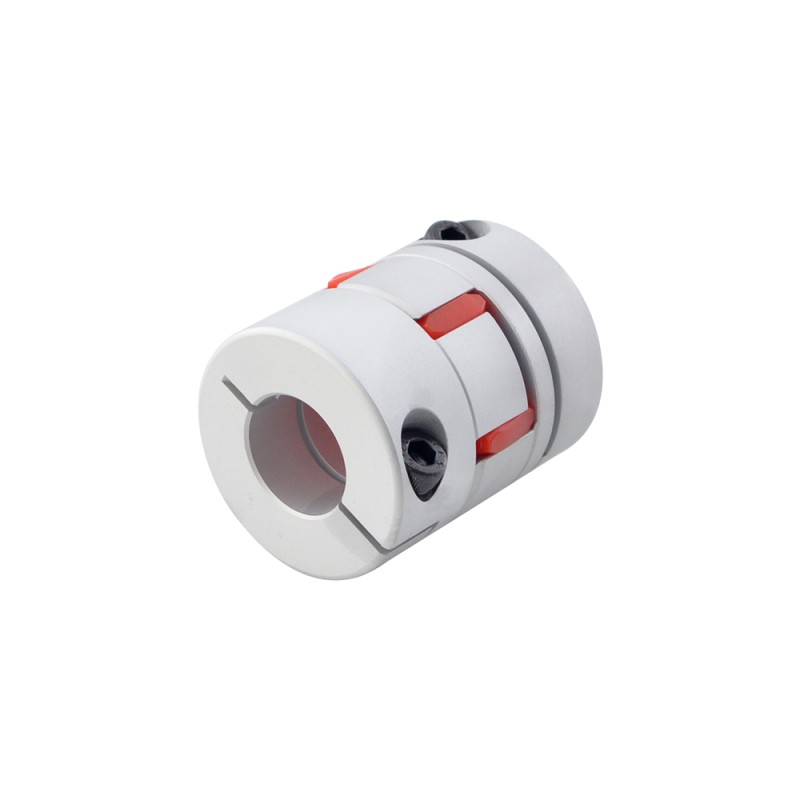

10mm - 19mm Flexible Jaw Coupling 40x50mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$16.56

5 + C$15.82

10 + C$15.14

50 + C$14.50

100 + C$13.94

In Stock: 10000
Model: ST-JC40
Gross Weight: 0.19kg
Certificated: ISO

Sold: 136

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Shaft: 10mm - 19mm
P/N: ST-JC40
Diameter: 40mm
Length: 50mm
Sleeve Material: Polyurethane
Body Material: Aluminum Alloy

Coupling Specification
Body Length(mm)	50
Coupling Type	Jaw Shaft Coupling
Diameter(mm)	40
Matching Shaft Diameter(mm)	10 - 19
Physical Specification
Inventory Method	Dedicated Inventory

Bore Diameter
With Keyway/without keyway, other special-shaped hole
Overall Length
Material(45/304 stainless steel)
Outside Diameter

Model(Jaw)	d1(mm)	d2(mm)	D(mm)	L(mm)	L1(mm)	L2(mm)	Clamp Screw				Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Static Torsional Spring Constant(Nm/rad)	Radial Deviation(°)	Angle Deviation(°)	Axial Deviation(°)	Weight
Model(Jaw)	d1(mm)	d2(mm)	D(mm)	L(mm)	L1(mm)	L2(mm)	M(mm)	Distance1(F)	Distance2(G)	Tightening Torque	Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Static Torsional Spring Constant(Nm/rad)	Radial Deviation(°)	Angle Deviation(°)	Axial Deviation(°)	Weight
MH2025-5-5	5	5	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-4	55	0.02	1	0.6	17
MH2025-5-6	5	6	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-5	55	0.02	1	0.6	17
MH2025-5-6.35	5	6.35	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-6	55	0.02	1	0.6	17
MH2025-5-8	5	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-6	55	0.02	1	0.6	17
MH2025-6-10	6	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-7	55	0.02	1	0.6	17
MH2025-6.35-6.35	6.35	6.35	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-8	55	0.02	1	0.6	17
MH2025-6.35-8	6.35	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-9	55	0.02	1	0.6	17
MH2025-6.35-10	6.35	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-10	55	0.02	1	0.6	17
MH2025-8-8	8	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-11	55	0.02	1	0.6	17
MH2025-8-10	8	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-12	55	0.02	1	0.6	17
MH2530-6.35-8	6.35	8	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-4	63	0.02	1	0.6	30
MH2530-6.35-10	6.35	10	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-5	63	0.02	1	0.6	30
MH2530-8-8	8	8	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-6	63	0.02	1	0.6	30
MH2530-8-10	8	10	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-7	63	0.02	1	0.6	30
MH2530-8-12	8	12	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-8	63	0.02	1	0.6	30
MH2530-10-12	10	12	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-9	63	0.02	1	0.6	30
MH3035-8-14	8	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-4	72	0.02	1	0.6	50
MH3035-12-14	12	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-5	72	0.02	1	0.6	50
MH3035-14-14	14	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-6	72	0.02	1	0.6	50
