Brushed 12V DC Gear Motor 3Kg.cm/73RPM 60:1 Spur Gearbox

0 reviews - Write a review

C$6.93

5 + C$6.69

10 + C$6.47

50 + C$6.26

100 + C$6.07

In Stock: 10000
Model: SGA37-33126000-G60
Gross Weight: 0.24kg
Certificated: ISO, CE

Sold: 142

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

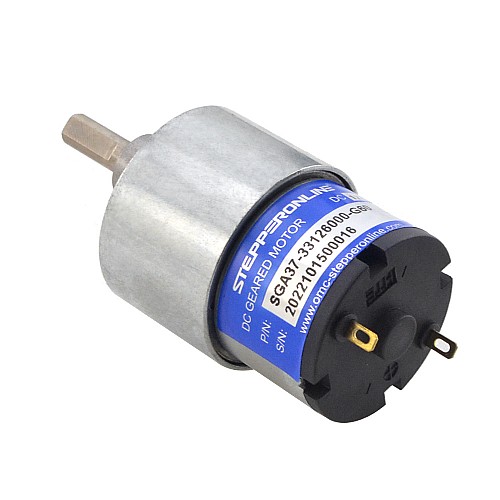

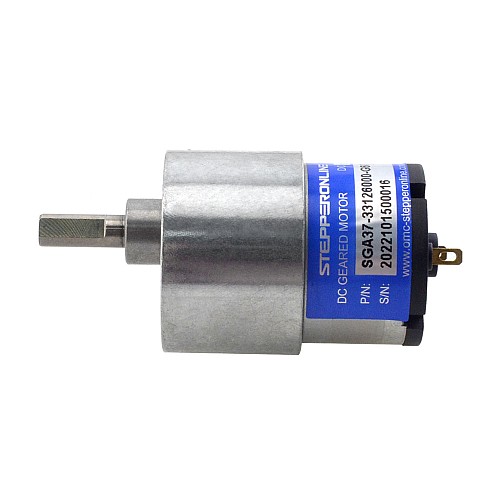

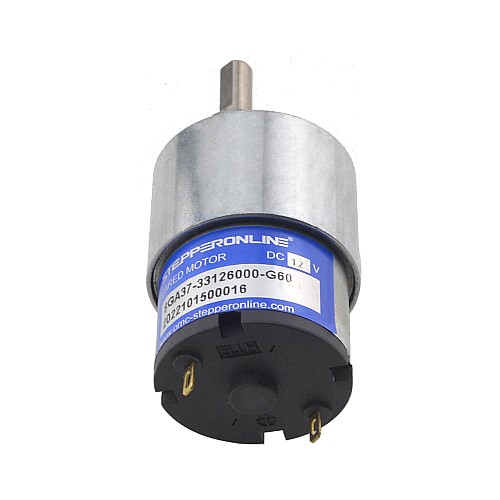

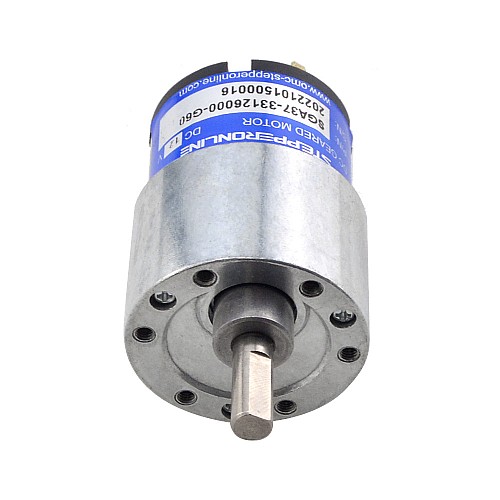

This is a standard 12 volt brushed DC gear motor, generating 3kg.cm of torque at 73rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 60 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGA37-33126000-G60
Rated Voltage: 12V
Rated Torque: 3kg.cm(41.49oz.in)
Rated Current: <=600mA
Rated Speed: 73rpm
No-load Current: <=80mA
No-load Speed: 100rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 60 : 1

Physical Specification

Motor Size: Φ33 x 22.7mm
Gearbox Size: Φ37 x 25mm
Shaft Diameter: Φ6mm
Shaft Length: 15.5mm
D-cut Length: 12mm

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.6
Rated Speed(rpm)	73
Rated Torque(kg.cm)	3
Rated Torque(oz.in)	41.49
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	60
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15.5
