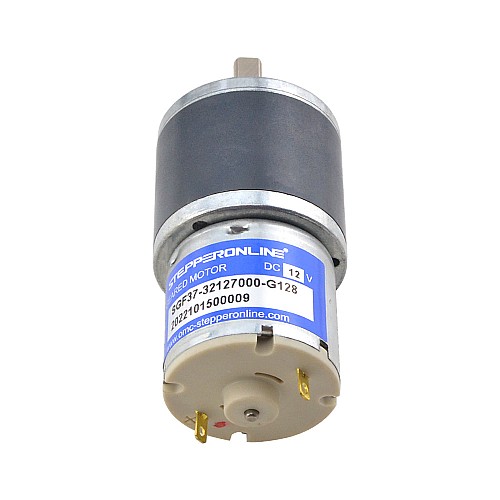

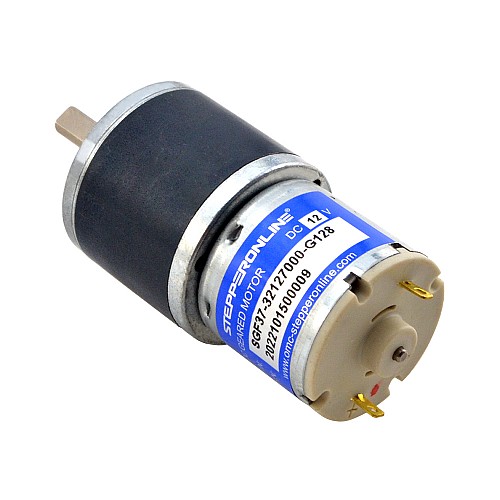

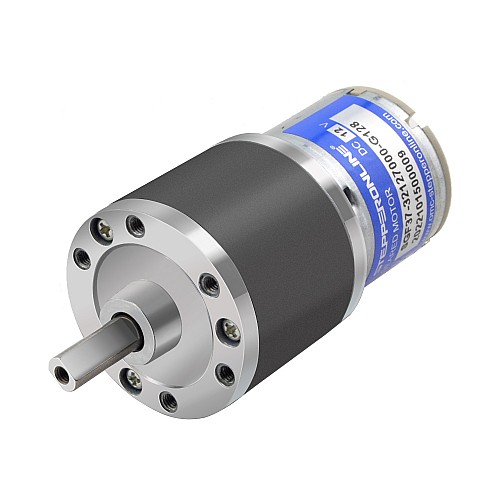

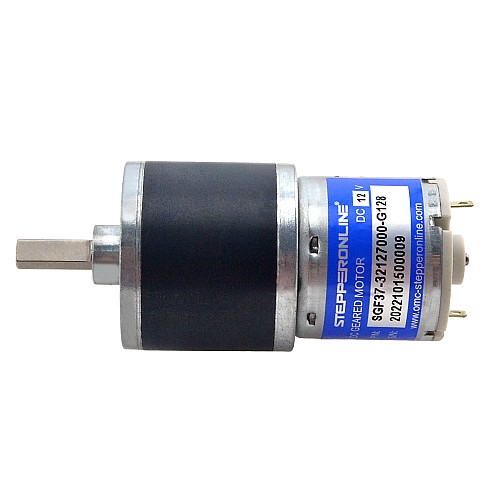

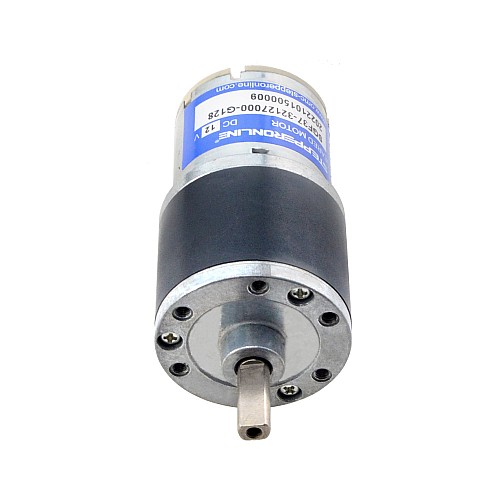

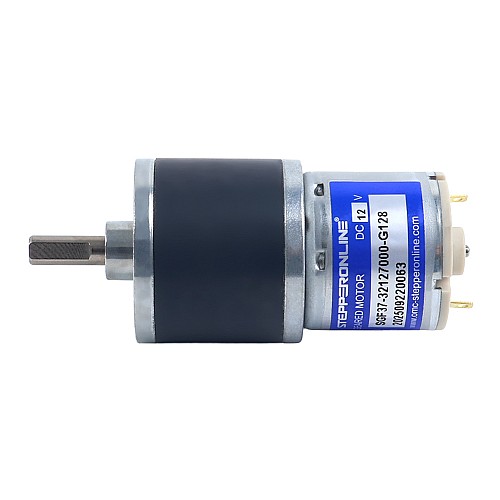

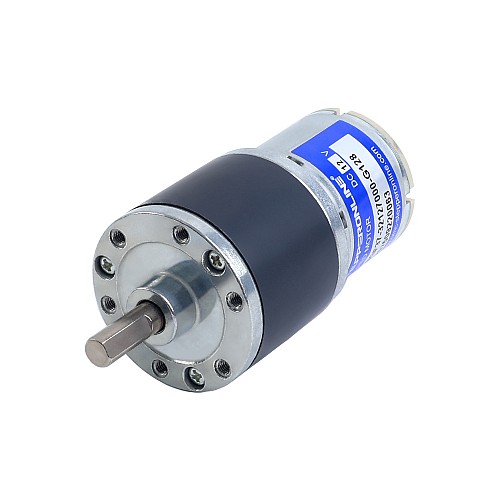

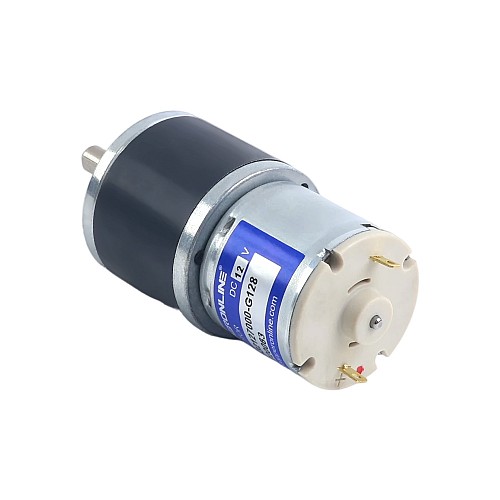

Brushed 12V DC Gear Motor 6Kg.cm/40RPM 128:1 Spur Gearbox

0 reviews - Write a review

C$17.30

5 + C$16.71

10 + C$16.16

50 + C$15.64

100 + C$15.16

In Stock: 10000
Model: SGF37-32127000-G128
Gross Weight: 0.29kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

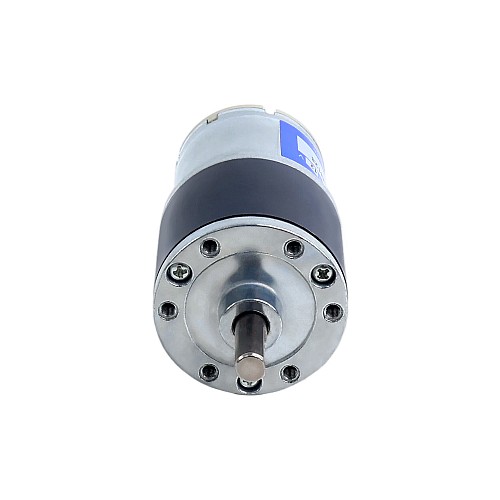

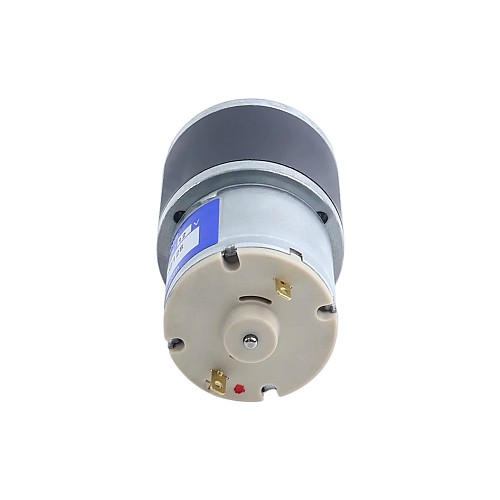

This is a standard 12 volt brushed DC gear motor, generating 6kg.cm of torque at 40rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 128 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGF37-32127000-G128
Rated Voltage: 12V
Rated Torque: 6kg.cm(82.98oz.in)
Rated Current: <=1000mA
Rated Speed: 40rpm
No-load Current: <=150mA
No-load Speed: 54rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 128 : 1

Physical Specification

Motor Size: Φ32 x 29mm
Gearbox Size: Φ37 x 33mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 15mm
D-cut Length: 10mm
Rear Shaft Diameter: Φ10mm
Rear Shaft Length: 4mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	1
Rated Speed(rpm)	40
Rated Torque(kg.cm)	6
Rated Torque(oz.in)	82.98
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	128
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15
