Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor

Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-24GU-30S/6GU50RT | StepperOnline CA
F6D250-24GU-30S/6GU50RT
Output Shaft TypeKeyway
Rated Voltage(V)24
Gear Ratio(xx:1)50
Rated Speed(rpm)60
Question

Downloads

F6D250-24GU-30S_6GU50RT.STEPSTEP · 2.89MBLog in to download
Same series
ModelOutput Shaft TypeRated Voltage(V)Gear Ratio(xx:1)Rated Speed(rpm)PriceStock
F4D60-12GN-18S/4GN100RCHollow1210018C$77.40In stock
F4D60-12GN-18S/4GN100RTKeyway1210018C$77.40In stock
F4D60-12GN-18S/4GN10RCHollow1210180C$75.28In stock
F4D60-12GN-18S/4GN10RTKeyway1210180C$75.28In stock
F4D60-12GN-18S/4GN15RCHollow1215120C$75.28In stock
F4D60-12GN-18S/4GN15RTKeyway1215120C$75.28In stock
F4D60-12GN-18S/4GN180RCHollow1218010C$77.40In stock
F4D60-12GN-18S/4GN180RTKeyway1218010C$77.40In stock
F4D60-12GN-18S/4GN20RCHollow122090C$75.28In stock
F4D60-12GN-18S/4GN20RTKeyway122090C$75.28In stock
F4D60-12GN-18S/4GN30RCHollow123060C$75.28In stock
F4D60-12GN-18S/4GN30RTKeyway123060C$75.28In stock
F4D60-12GN-18S/4GN50RCHollow125036C$75.28In stock
F4D60-12GN-18S/4GN50RTKeyway125036C$75.28In stock
F4D60-12GN-30S/4GN100RCHollow1210030C$77.40In stock
F4D60-12GN-30S/4GN100RTKeyway1210030C$77.40In stock
F4D60-12GN-30S/4GN10RCHollow1210300C$75.28In stock
F4D60-12GN-30S/4GN10RTKeyway1210300C$75.28In stock
F4D60-12GN-30S/4GN10RT-SALEKeyway1210300C$76.49In stock
F4D60-12GN-30S/4GN15RCHollow1215200C$75.28In stock
F4D60-12GN-30S/4GN15RTKeyway1215200C$75.28In stock
F4D60-12GN-30S/4GN180RCHollow1218016.67C$77.40In stock
F4D60-12GN-30S/4GN180RTKeyway1218016.67C$77.40In stock
F4D60-12GN-30S/4GN20RCHollow1220150C$75.28In stock
F4D60-12GN-30S/4GN20RTKeyway1220150C$75.28In stock
F4D60-12GN-30S/4GN30RCHollow1230100C$75.28In stock
F4D60-12GN-30S/4GN30RTKeyway1230100C$75.28In stock
F4D60-12GN-30S/4GN50RCHollow125060C$75.28In stock
F4D60-12GN-30S/4GN50RTKeyway125060C$75.28In stock
F4D60-24GN-18S/4GN100RCHollow2410018C$77.40In stock
View all in category
Brushed 24V 250W 26.10Nm(3696.06oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor
This is a 24V 250W DC gear motor with a flange of 104x104mm. The built-in 50:1 keyway shaft right ... Read More
0 reviews • Write a review
from
C$134.46
5 + C$130.85
10 + C$127.43
50 + C$124.18
100 + C$121.10

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V 250W DC gear motor with a flange of 104x104mm. The built-in 50:1 keyway shaft right angle Gearbox brings speed and torque to 60rpm and 26.10Nm(3696.06oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

  • P/N: F6D250-24GU-30S/6GU50RT
  • Output Power: 250W
  • Voltage: 24V
  • Rated Speed: 60rpm
  • Rated Torque: 26.10Nm(3696.06oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length Includes Gearbox: 324mm
  • Gearbox Type: Right Angle Gearbox
  • Gear Ratio: 50:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ20mm
  • Shaft Length: 48mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Speed(rpm) 60
Rated Torque(Nm) 26.10
Rated Torque(oz.in) 3696.06
Rated Voltage(V) 24
Physical Specification
Gear Ratio(xx:1) 50
Gearbox Shape Square
Gearbox Type Right Angle Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 20
Shaft Length(mm) 48

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview
Brushed 24V 250W 29.07Nm(4116.66oz.in) 60RPM w/ 30:1 Right Angle Gearbox DC Gear Motor
Brushed 24V 250W 29.07Nm(4116.66oz.in) 60RPM w/ 30:1 Right Angle Gearbox DC Gear Motor
This is a 24V 250W DC gear motor with a flange of 104x104mm. The built-in 30:1 keyway shaft right angle Gearbox brings speed and torque to 60rpm and..
from
C$131.56
Add to Cart
Add to Wish List Compare this Product
Quickview

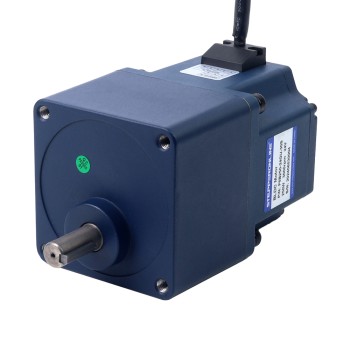

24V 250W 60RPM Geared Brushless DC Motor 26.10Nm(3696.07oz.in) 50:1 Spur Gearbox
