TG Series 90mm 20:1 Planetary Gearbox Backlash 15arc-min for Servo Motors

0 reviews - Write a review

C$126.11

5 + C$120.92

10 + C$116.14

50 + C$111.71

100 + C$107.61

In Stock: 10000
Model: TG90-G20
Gross Weight: 3.91kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

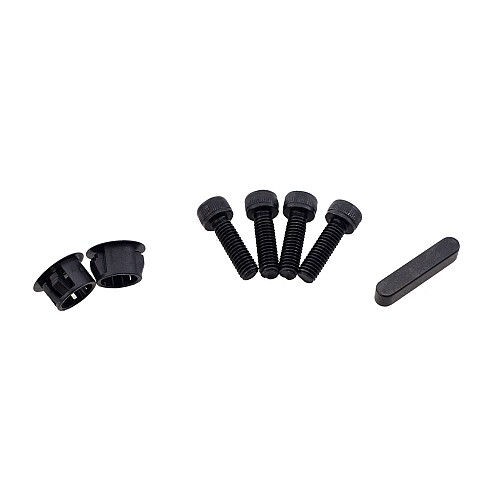

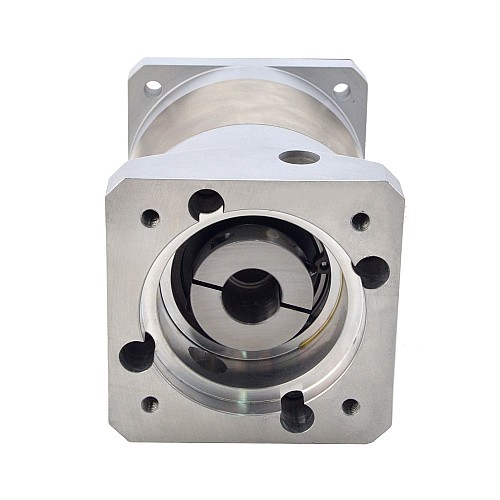

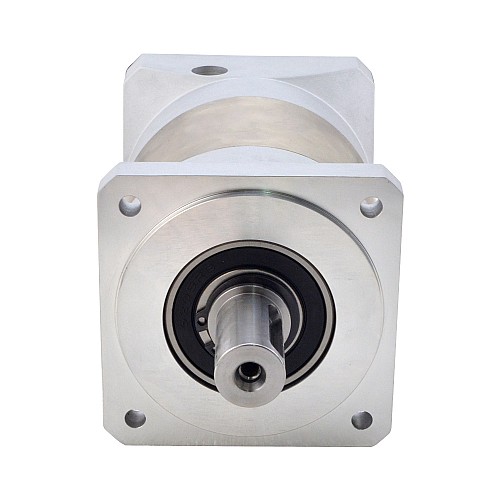

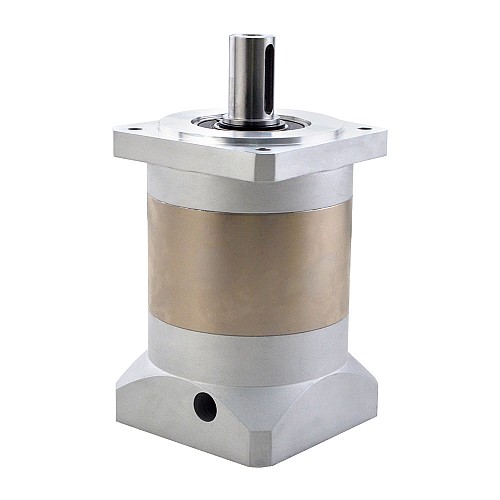

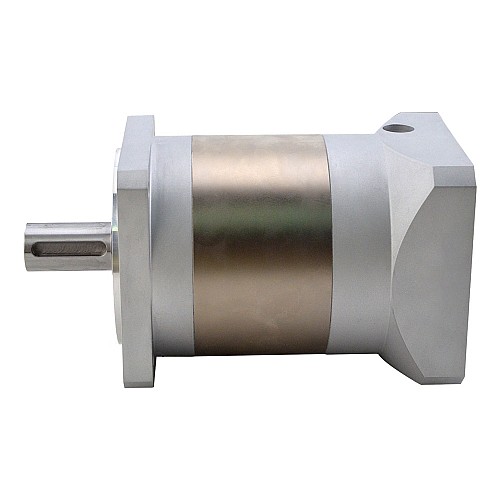

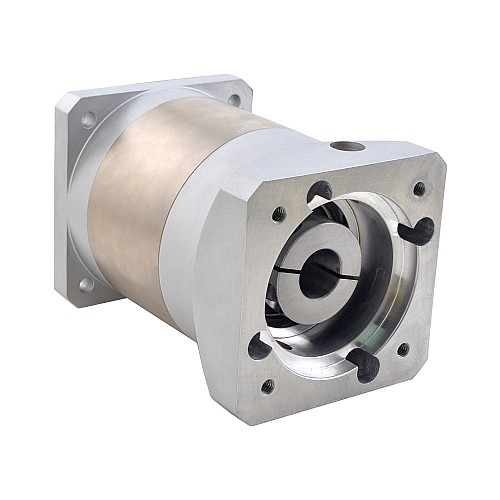

This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 20:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This in-line planetary gearbox can match most servo motors on the market.

Gearbox Specifications

Part Number: TG90-G20
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 20:1
Efficiency: 94%
Rotor Inertia: 0.13kg.cm²
Backlash at No-load: <=15arc-min
Max.Permissible Torque: 90Nm(797.13lb-in)
Moment Permissible Torque: 180Nm(1594.26lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 132mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ20mm
Output Shaft Length: 40mm
Input Shaft Diameter: Φ19mm
Input Shaft Length: 24-41mm

Other optional reduction ratios.

4 : 1	7 : 1	16 : 1	25 : 1
28 : 1	35 : 1	40 : 1	70 : 1

Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	90 x 90
Gear Material	Alloy Steel
Gear Ratio(xx:1)	20
Gearbox Length(mm)	132
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	19
Input Shaft Length(mm)	24 - 41
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 80/90 Servo Motor
Output Shaft Diameter(mm)	20
Output Shaft Length(mm)	40
Output Shaft Type	Keyway
Product Series	TG
