DSY Series 750W RS485 DC Servo Motor 24-70VDC 2.39Nm w/ Brake 3000rpm 17-Bit Incremental Encoder IP65

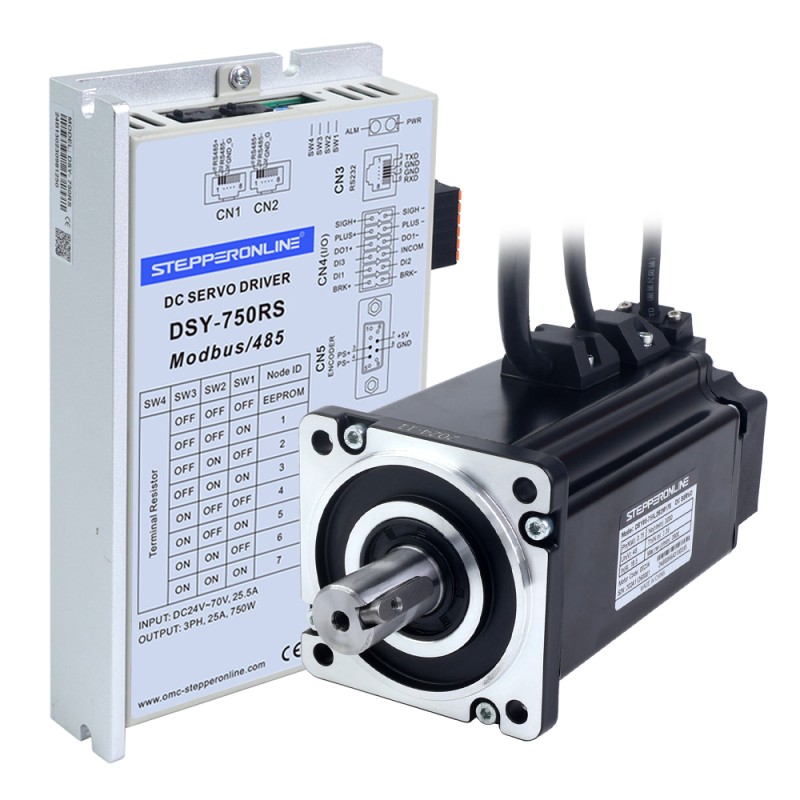

This is the latest DSY series DC servo system, consisting of a 48VDC 750W servo motor with a 24V 8.5W brake and a 24-70VDC 750W servo driver. The servo motor has a rated torque of 2.39Nm, a peak torque of 7.17Nm, and a rated speed of 3000rpm.

It comes standard with a 17-bit single-turn magnetic incremental encoder and adopts a high power density design, allowing it to deliver strong power in a compact size, achieving 3 times the instantaneous overload. The new magnetic circuit design reduces torque ripple, minimizing vibration during operation and providing smoother torque output.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

Items in Kit

• 1 x DSY-750RS: 750W Pulse/RS485 DC Servo Motor Driver

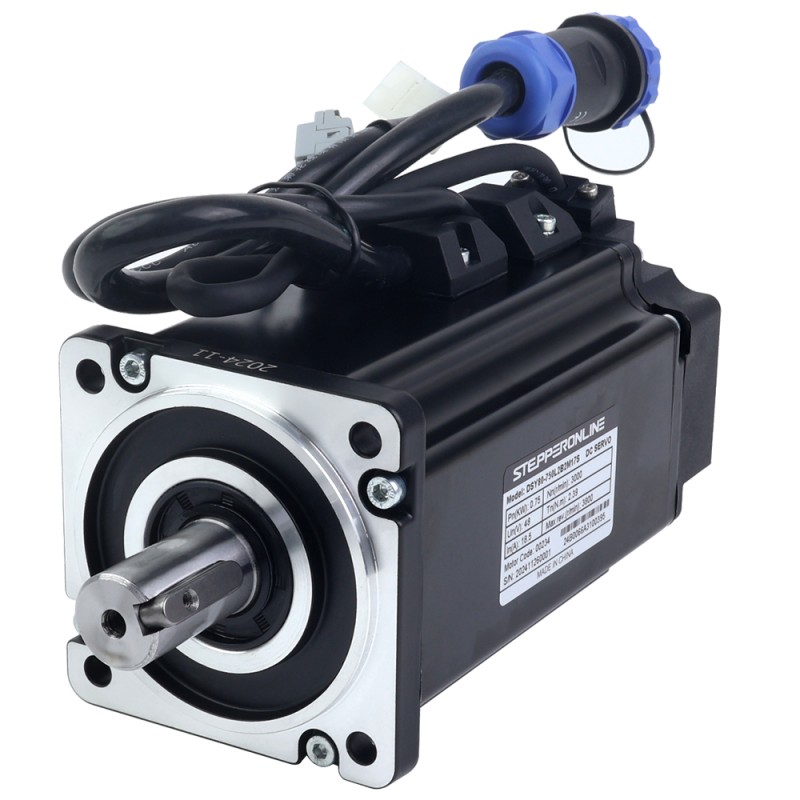

• 1 x DSY80-750L2B2M17S: 750W 48V DC Servo Motor 3000rpm 2.39Nm with Brake 17-Bit Encoder IP65

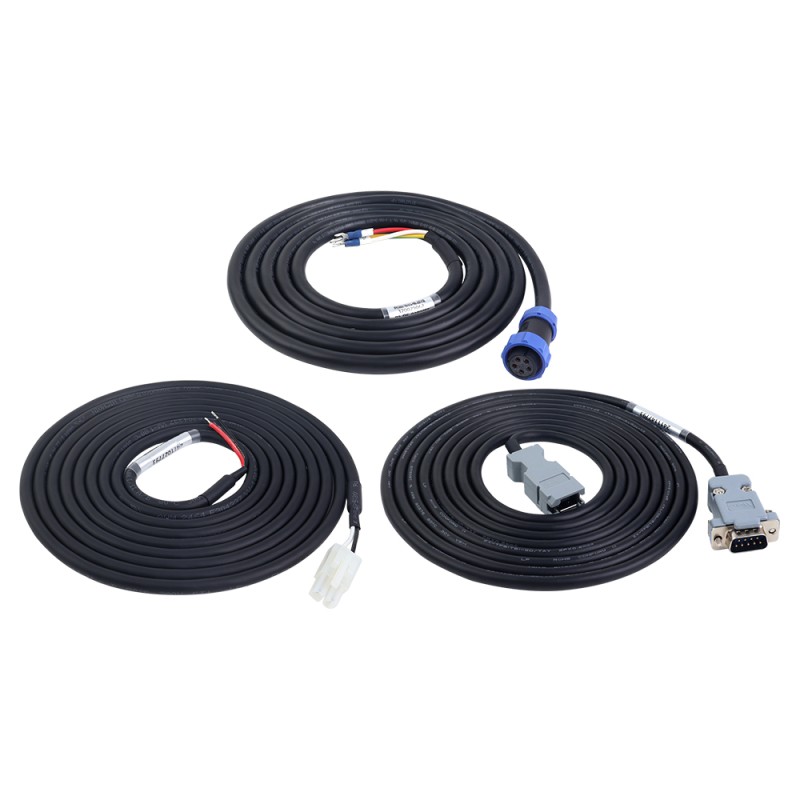

• 1 x P2-DS-03P20M: 3.0m Motor Cable
• 1 x P1-DS-03M-S: 3.0m Brake Cable
• 1 x E2-DS-03AM: 3.0m Encoder Cable
• 1 x RS232-5: 1.0m Debugging Cable

Servo Driver Specification

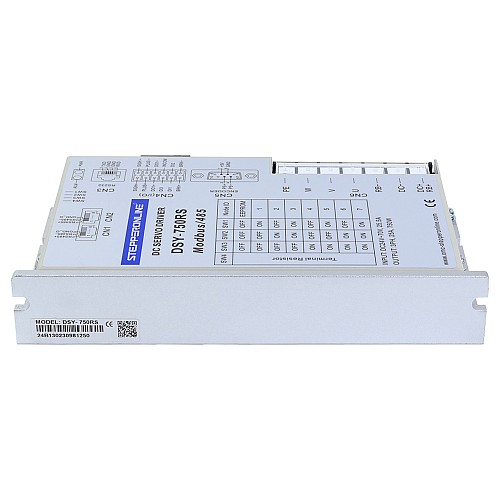

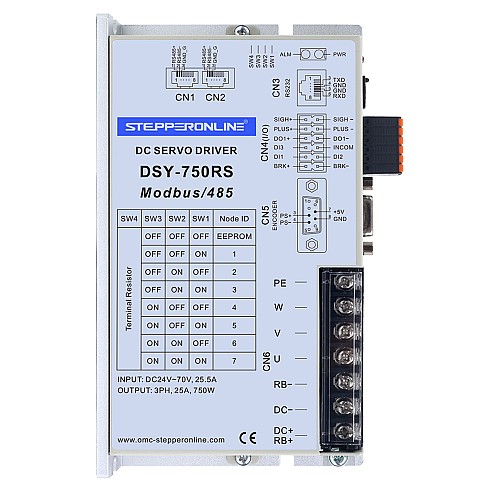

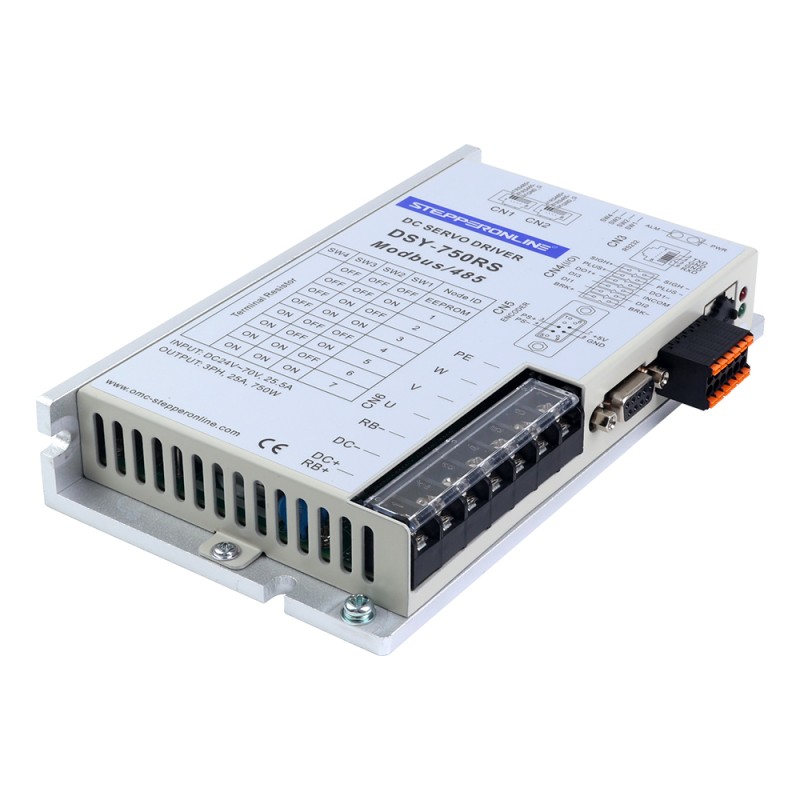

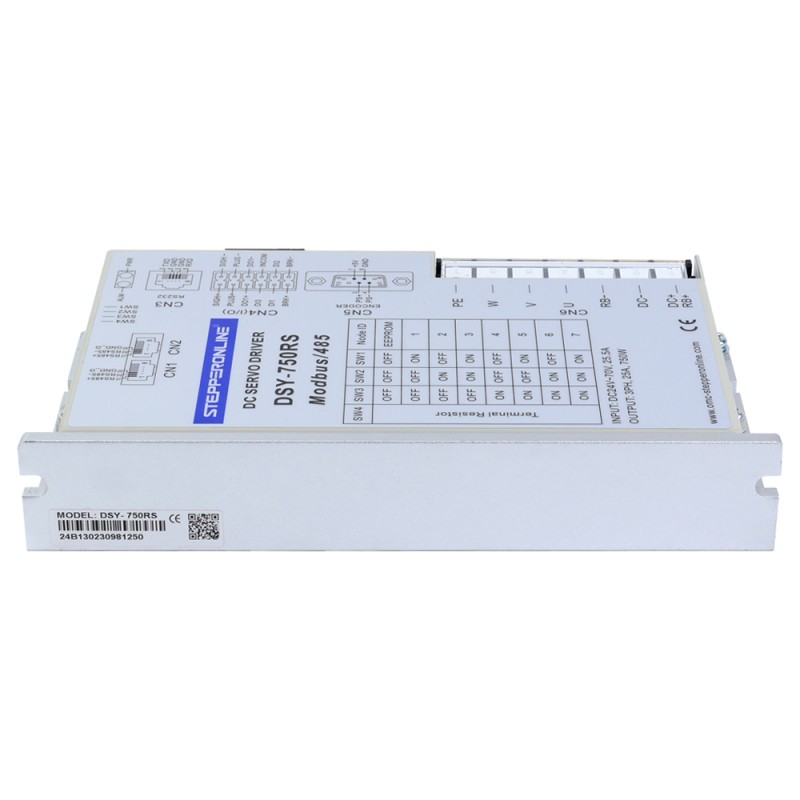

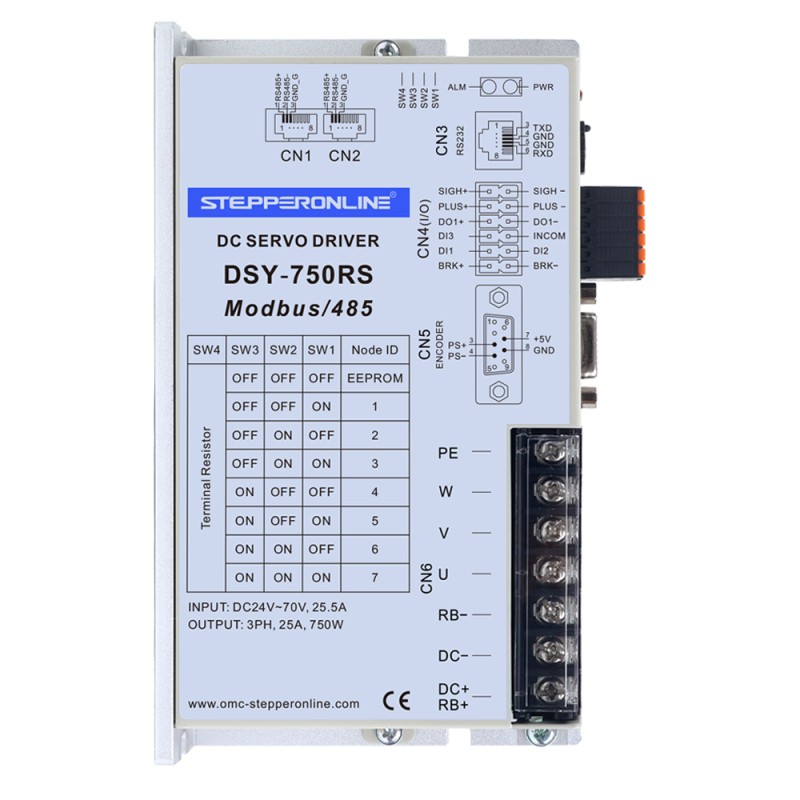

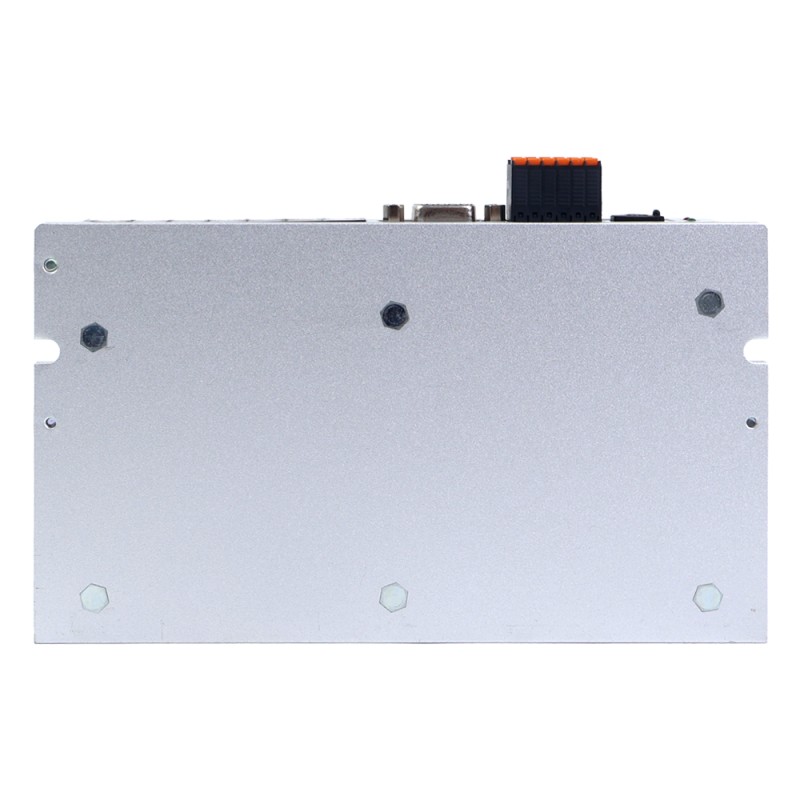

• Part Number: DSY-750RS
• Continuous Output Current: 25.0A
• Maximum Output Current: 80.0A
• Power Supply Input: 24-70VDC
• Rated power 750W
• Dimension: 174.6*100*30mm

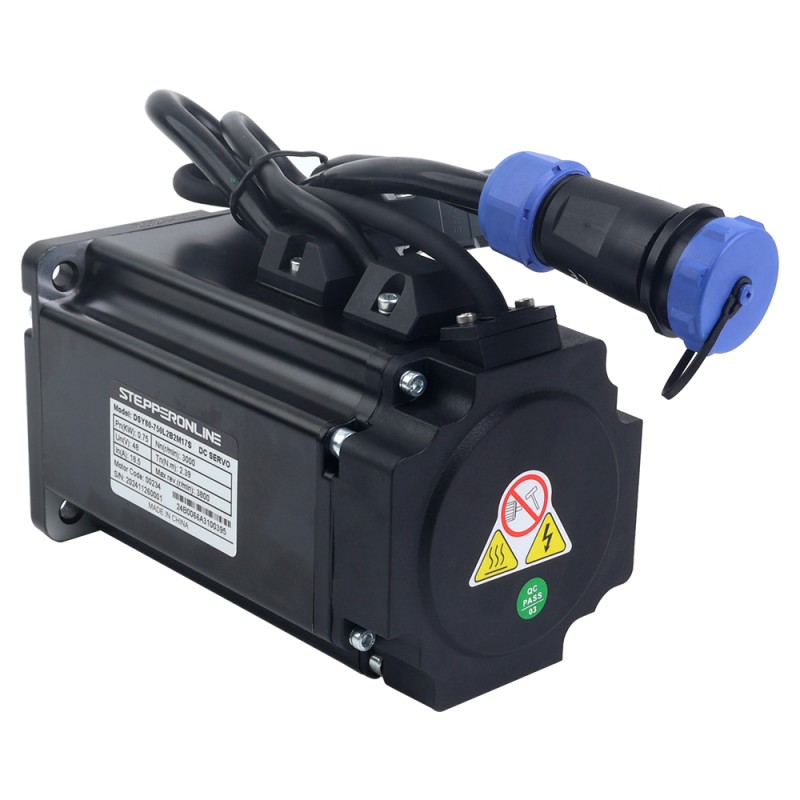

Servo Motor Specification

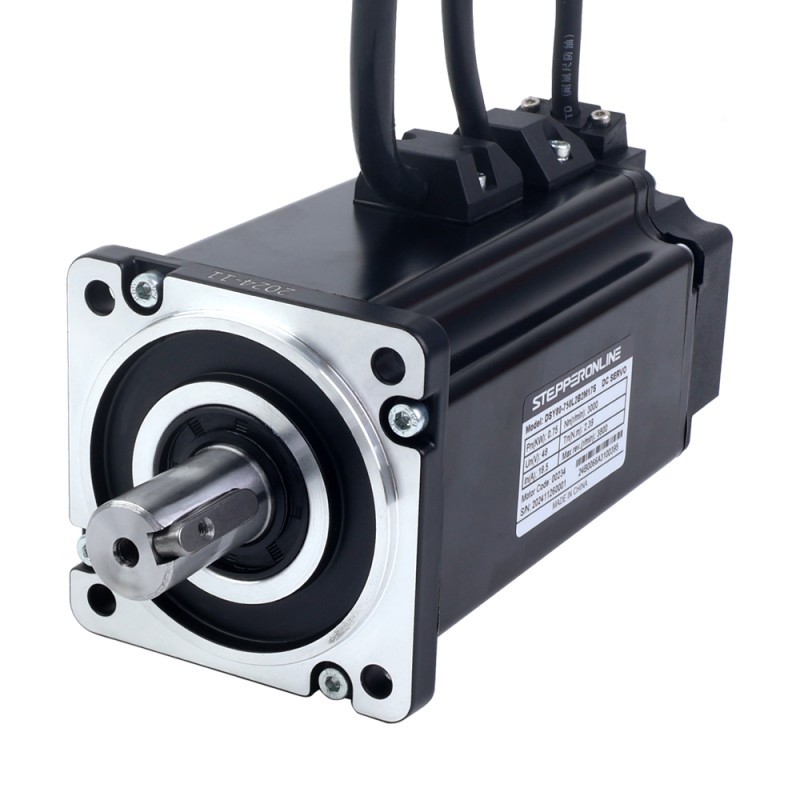

• Part Number: DSY80-750L2B2M17S
• Rated Power: 750W
• Rated Voltage: 48VDC
• Rated Torque: 2.39Nm
• Peak Torque: 7.17Nm
• Rated Current: 18.5A
• Rated Speed: 3000rpm
• Torque Const: 0.129N.m/A
• Line-line Resistance: 0.11ohms ± 10%
• Line-line Inductance: 0.43mH ± 20%
• Inertia: 1.62kg*m²*10^-4
• Encoder: 17-bit single-turn magnetic incremental encoder
• Poles: 10
• IP Rating: IP65
• Shaft diameter: 19mm
• Brake Holding Torque: 3.80Nm
• Brake Voltage: 24VDC
• Brake Power: 8.5W
• Brake Current: 0.42A
• Cable Length: 3m(optional lengths are 1.5m and 5m)
