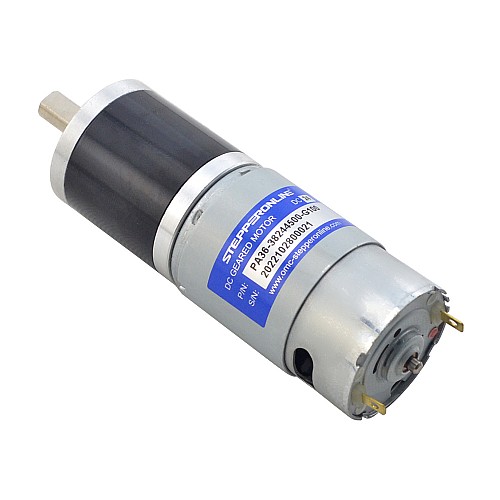

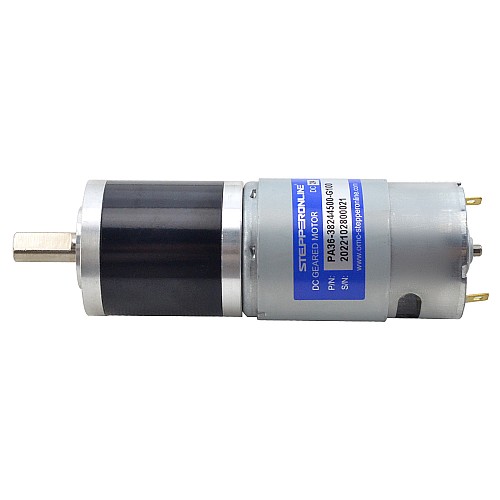

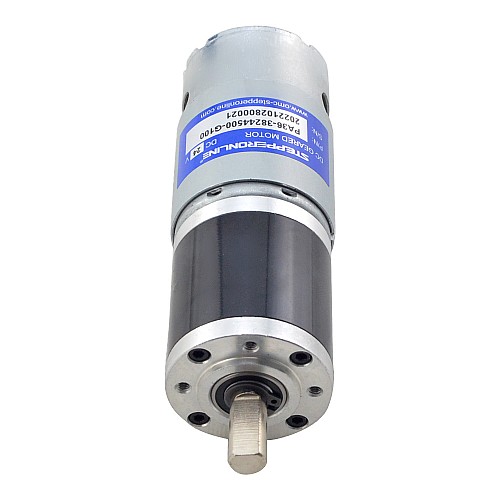

Brushed 24V DC Gear Motor 15Kg.cm/33RPM w/ 99.5:1 Planetary Gearbox

0 reviews - Write a review

C$24.39

5 + C$23.56

10 + C$22.78

50 + C$22.05

100 + C$21.37

In Stock: 10000
Model: PA36-38244500-G100
Gross Weight: 0.56kg
Certificated: ISO

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 24 volt brushed DC gear motor, generating 15kg.cm of torque at 33rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 99.5:1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: PA36-38244500-G100
Rated Voltage: 24V
Rated Torque: 15kg.cm(207oz.in)
Rated Current: 600mA
Rated Speed: 33rpm
Rated Power: 7.2W
No-load Current: 100mA
No-load Speed: 45rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Planetary
Gear Ratio: 99.5: 1
Max. Permissible Torque: 30kg.cm
Moment Permissible Torque(within 30S): 90kg.cm
Max. Permissible Radial Load: <=50N
Max. Permissible Axial Load: <=30N

Physical Specification

Motor Size: Φ37.85 x 57mm
Gearbox Size: Φ36 x 41mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm

Variable Frequency Drive Specification
Motor Type	Brushed DC Motor
Electrical Specification
Rated Current(A)	0.6
Rated Power(W)	7.2
Rated Speed(rpm)	33
Rated Torque(kg.cm)	15
Rated Torque(oz.in)	207
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	99.5
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	20
