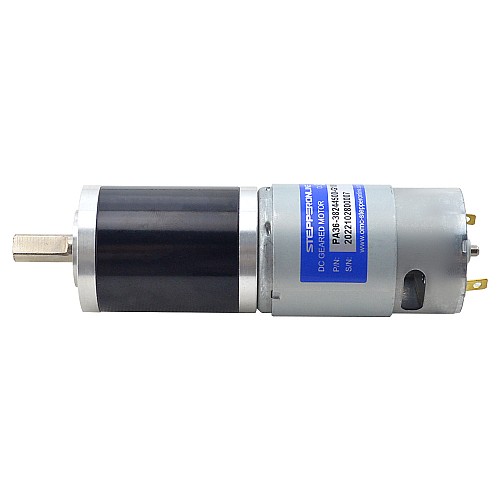

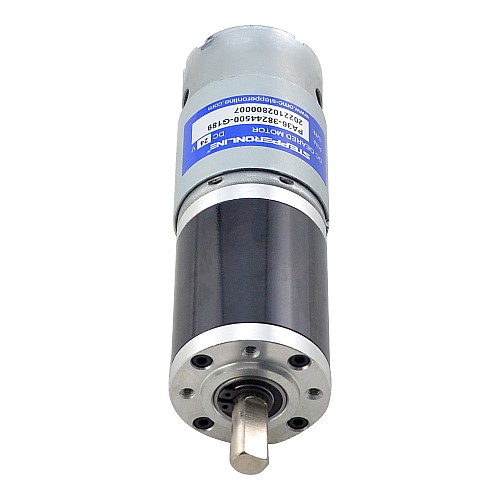

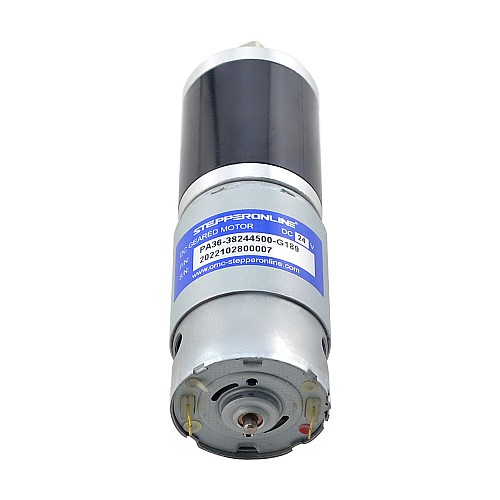

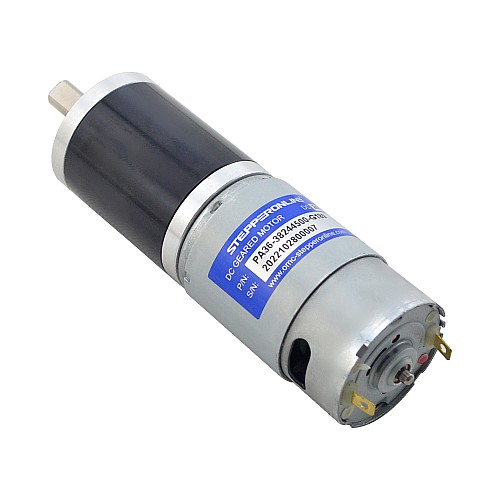

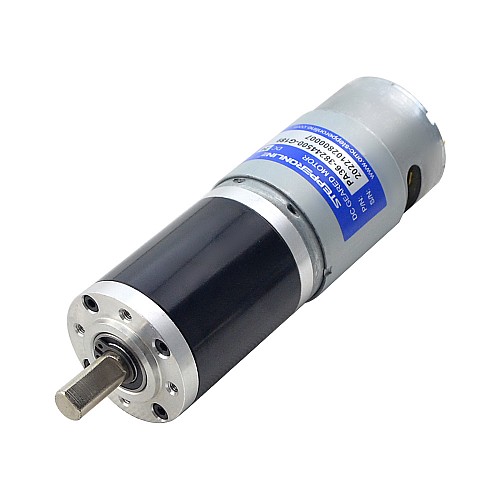

Brushed 24V DC Gear Motor 25Kg.cm/17RPM w/ 189:1 Planetary Gearbox

0 reviews - Write a review

C$26.98

5 + C$26.06

10 + C$25.20

50 + C$24.39

100 + C$23.64

In Stock: 10000
Model: PA36-38244500-G189
Gross Weight: 0.60kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 24 volt brushed DC gear motor, generating 25kg.cm of torque at 17rpm. It's a small, inexpensive motor suitable for low torque, high speed applications.

Combined with a 189:1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: PA36-38244500-G189
Rated Voltage: 24V
Rated Torque: 25kg.cm(345oz.in)
Rated Current: 600mA
Rated Speed: 17rpm
Rated Power: 7.2W
No-load Current: 100mA
No-load Speed: 24rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Planetary
Gear Ratio: 189: 1
Max. Permissible Torque: 30kg.cm
Moment Permissible Torque(within 30S): 90kg.cm
Max. Permissible Radial Load: <=50N
Max. Permissible Axial Load: <=30N

Physical Specification

Motor Size: Φ37.85 x 57mm
Gearbox Size: Φ36 x 48.8mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm

Variable Frequency Drive Specification
Motor Type	Brushed DC Motor
Electrical Specification
Rated Current(A)	0.6
Rated Power(W)	7.2
Rated Speed(rpm)	17
Rated Torque(kg.cm)	25
Rated Torque(oz.in)	345
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	189
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	20
