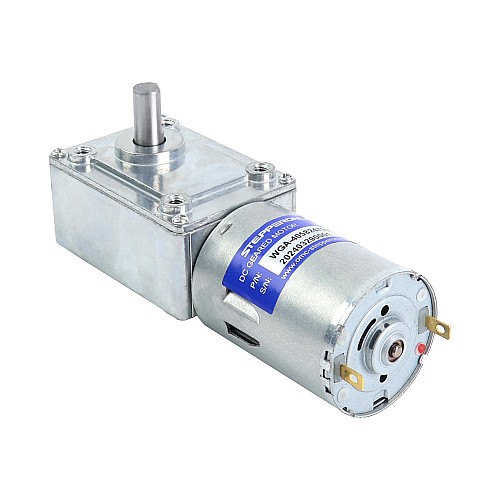

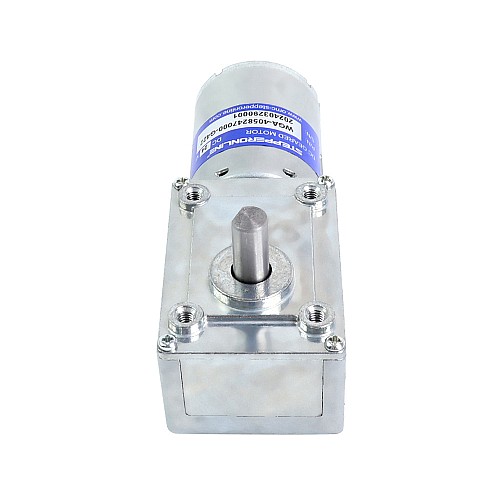

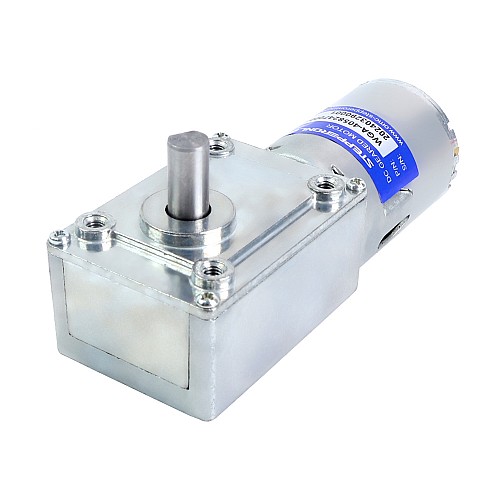

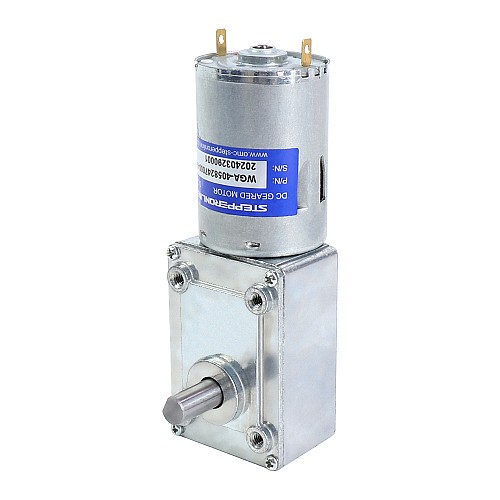

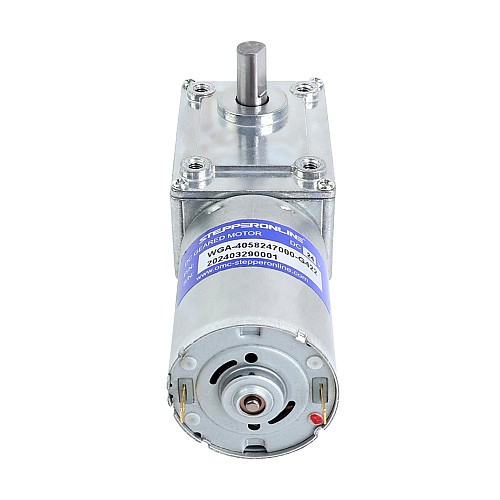

Brushed 24V DC Gear Motor 30Kg.cm/12RPM w/ 422:1 Worm Gearbox

0 reviews - Write a review

C$17.30

5 + C$16.71

10 + C$16.16

50 + C$15.64

100 + C$15.16

In Stock: 10000
Model: WGA-4058247000-G422
Gross Weight: 0.47kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 24 volt brushed DC gear motor, generating 30kg.cm of torque at 12rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 422:1 worm gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: WGA-4058247000-G422
Rated Voltage: 24V
Rated Torque: 30kg.cm(416.62oz.in)
Rated Current: <=1500mA
Rated Speed: 12rpm
No-load Current: <=550mA
No-load Speed: 16rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: worm gearbox
Gear Ratio: 422:1

Physical Specification

Motor Size: Φ36 x 51mm
Gearbox Size: 40 x 58 x 26.5mm
Shaft Diameter: Φ8mm
Shaft Length: 15mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	1.5
Rated Speed(rpm)	12
Rated Torque(kg.cm)	30
Rated Torque(oz.in)	416.62
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	422
Gearbox Shape	Rectangular
Gearbox Type	Worm Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	15
