Brushed 48V 250W 6.44Nm(911.98oz.in) 300RPM w/ 10:1 Spur Gearbox DC Gear Motor
This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 10:1 spur Gearbox brings s... Read More
0 reviews • Write a review
from
C$94.57
5 + C$92.03
10 + C$89.62
50 + C$87.35
100 + C$85.17

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

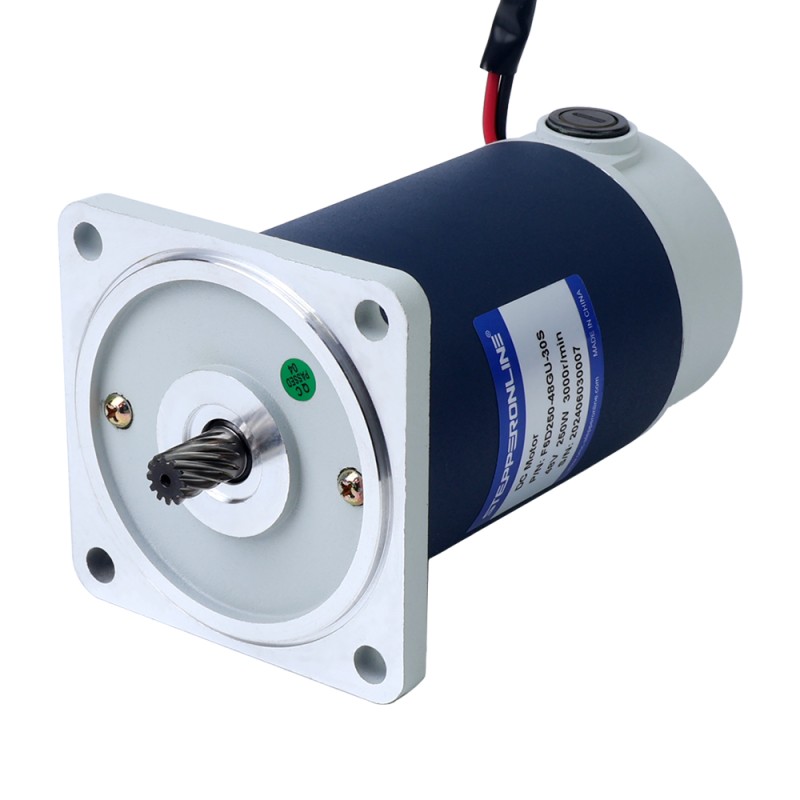

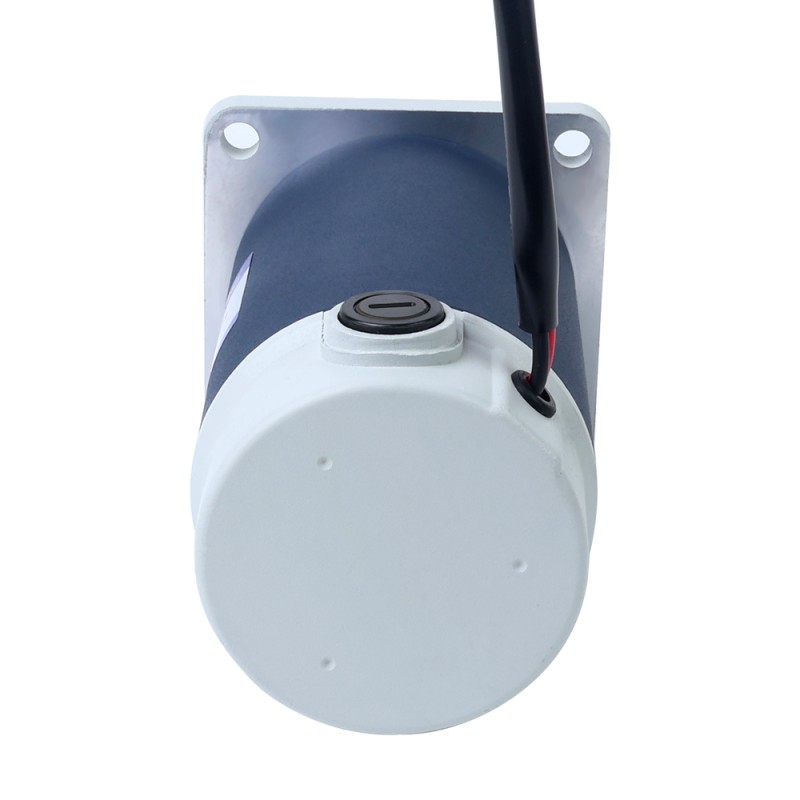

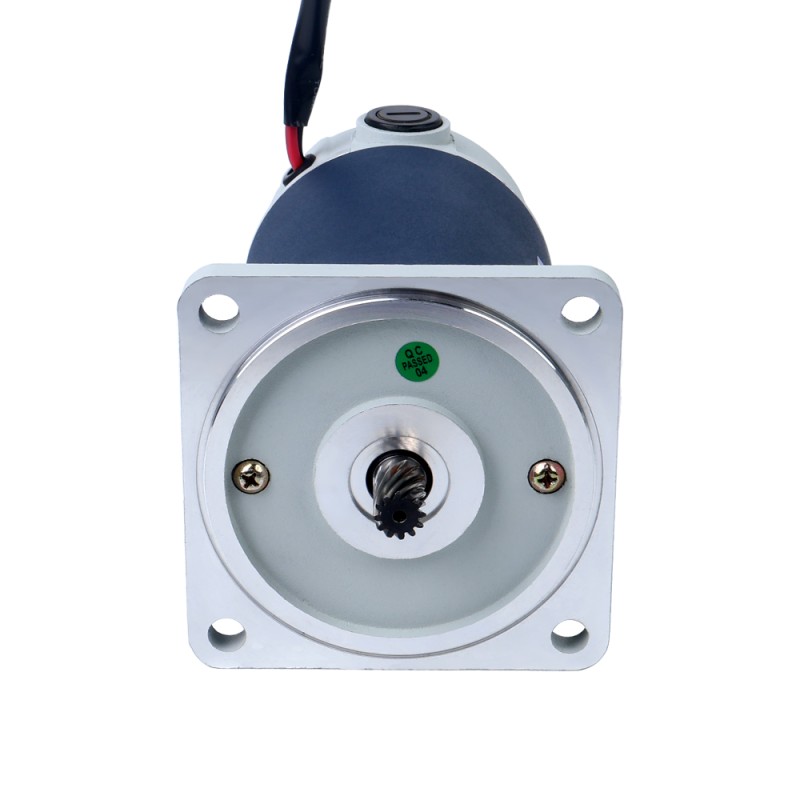

This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 10:1 spur Gearbox brings speed and torque to 300rpm and 6.44Nm(911.98oz.in). Due to its simple structure, low maintenance cost, and smooth operation, brushed DC gear motors are widely used in industrial production automation, logistics packaging equipment, medical equipment, photography equipment and other fields.

Electrical Specifications

  • P/N: F6D250-48GU-30S/6GU10K
  • Gearbox Type: Spur Gearbox
  • Output Power: 250W
  • Voltage: 48V
  • No-load Current: 0.90A
  • Gear Ratio: 10:1
  • Rated Speed: 300rpm
  • Rated Speed without Gearbox: 3000rpm
  • Rated Torque: 6.44Nm(911.98oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length: 239mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 42mm
  • Weight: 5.3kg
Electrical Specification
Motor Type Brushed DC Motor
No-load Current(A) 0.9
Rated Speed(rpm) 300
Rated Torque(Nm) 6.44
Rated Torque(oz.in) 911.98
Rated Voltage(V) 48
Physical Specification
Gear Ratio(xx:1) 10
Gearbox Shape Square
Gearbox Type Spur Gearbox
Output Shaft Type Keyway
Shaft Diameter(mm) 15
Shaft Length(mm) 42

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

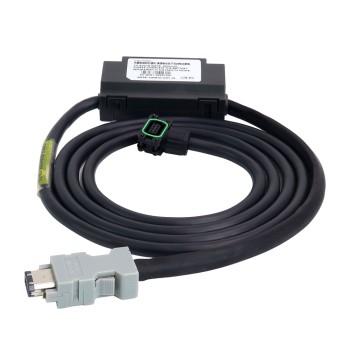

1.5m Encoder Cable with Battery Box for T6 Servo Motors with 23-bit Absolute Encoder
1.5m Encoder Cable with Battery Box for T6 Servo Motors with 23-bit Absolute Encoder
1.5m Encoder cable with battery box for T6 servo motors with 23-bit absolute encoder. Only with this line can you use the 23-bit absolute encoder 1..
from
C$30.89
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 90mm 50:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
TG Series 90mm 50:1 Planetary Gearbox Backlash 15arc-min for Servo Motors
This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 50:1 and a maximum 15arc-min backlash. It's an excellent ..
from
C$123.55
Add to Cart
Add to Wish List Compare this Product
Quickview

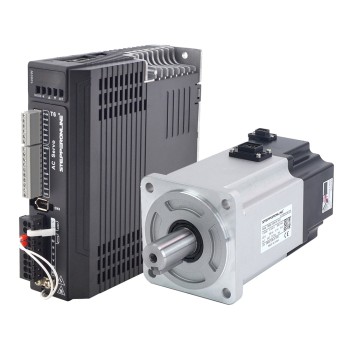

T6 Series 1000W AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 23-Bit Encoder IP67
Pre-order
T6 Series 1000W AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 23-Bit Encoder IP67
T6 Series 1000W AC 3000rpm 3.18Nm with brake 23-bit AC servo products are cost-effective AC digital servo which is designed for position high acc..
from
C$518.29
Add to Cart
Add to Wish List Compare this Product
Quickview

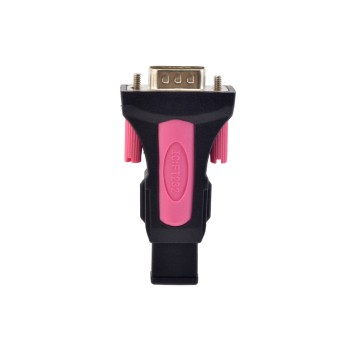

USB 2.0 to Serial RS232 Adapter with 1m Cable Converter
