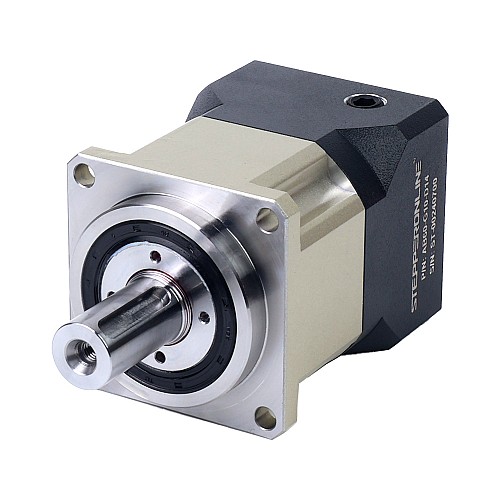

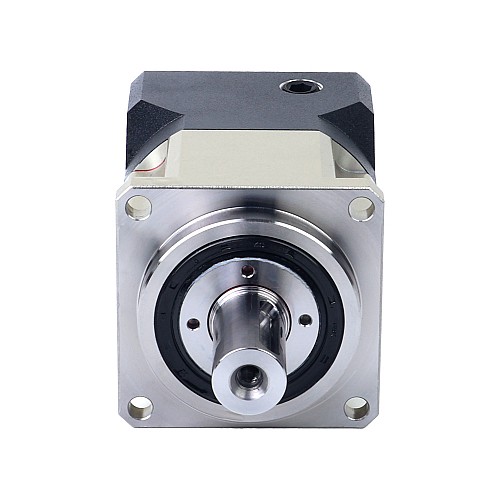

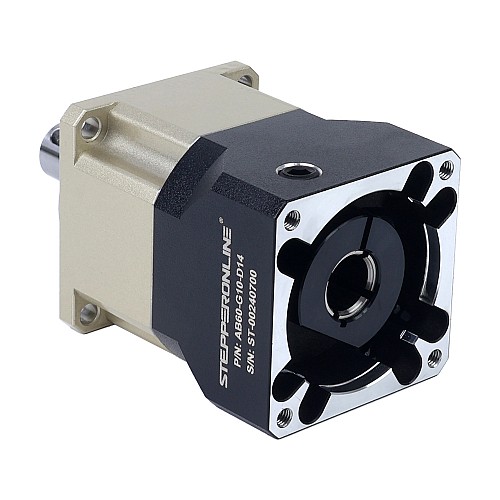

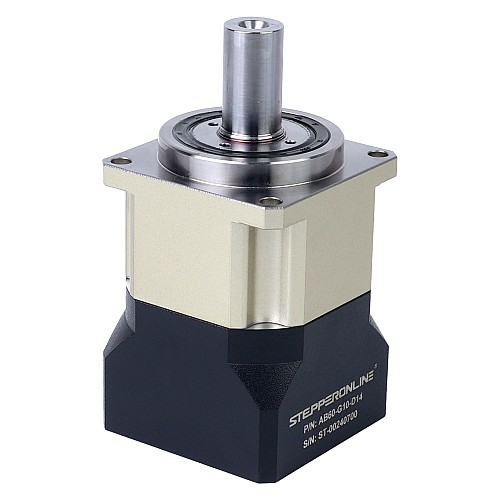

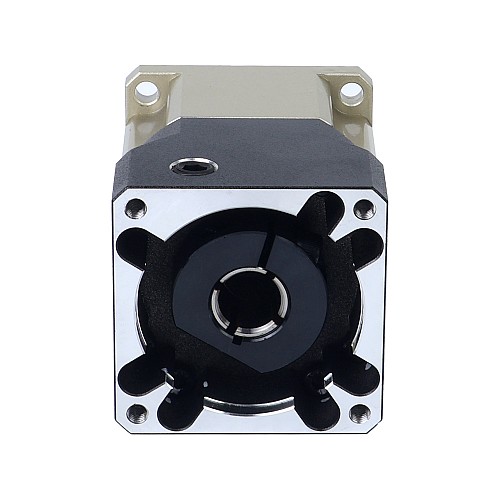

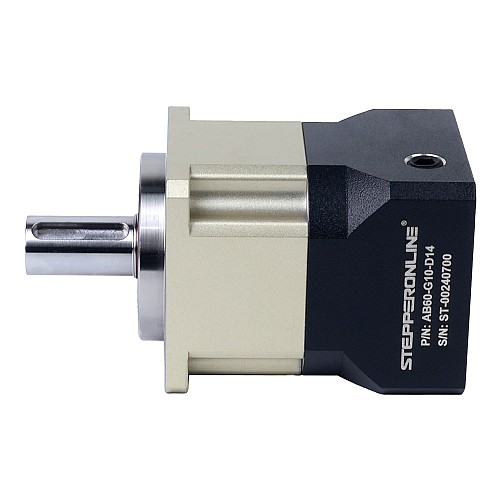

AB Series 60mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65

0 reviews - Write a review

C$0.00

In Stock: 1
Model: AB60-G10-D14
Gross Weight: 1.43kg
Certificated: ISO, CE, REACH

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

The size of this gearbox is 60 x 60mm and the input shaft diameter is 14mm. This AB series helical planetary gearbox offers a gear ratio of 10:1 with a backlash of 5arcmin. It is designed for servo motors with a size of 60mm and a shaft diameter of 14mm.
This gearbox is designed for harsh environments with a high protection rating of IP65 and features helical gearing for smooth, quiet operation with high torque and accuracy. In addition, the design offers high load capacity for demanding applications like automated production lines, packaging machines, textile machines, etc.

Gearbox Specifications

Part Number: AB60-G10-D14
Gearbox Type: Helical Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 95%
Backlash at No-load: 5arc-min
Rated Input Speed: 3000rpm
Maximum Input Speed: 6000rpm
Max.Permissible Torque: 36Nm(318.63lb-in)
Moment Permissible Torque: 108Nm(955.88lb-in)
Shaft Maximum Axial Load: 765N
Shaft Maximum Radial Load: 1530N
Waterproof Rating: IP65
Lifetime: 20000hours

Physical Specifications

Frame Size: 60 x 60mm
Gearbox Length: 78mm
Input Shaft Diameter: Φ14mm
Input Shaft Length: Max. 33mm
Output Shaft Diameter: Φ16mm
Output Shaft Length: 37mm
Output Shaft Type: Keyway

Physical Specification
Backlash at No-load	5arcmin
Frame Size(mm)	60 x 60
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	78
Gearbox Type	Helical Planetary
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	33
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 60 Servo Motor
Output Shaft Diameter(mm)	16
Output Shaft Length(mm)	37
Output Shaft Type	Keyway
Product Series	AB
