Dual Shaft Nema 23 Bipolar 2.8Nm(396.51oz.in) 4.2A 57x57x113mm 4 Wires

Hot

Dual Shaft Nema 23 Bipolar 2.8Nm(396.51oz.in) 4.2A 57x57x113mm 4 Wires

1 reviews - Write a review

C$56.05

5 + C$53.41

10 + C$51.02

50 + C$48.81

100 + C$46.80

In Stock: 10000
Model: 23HS45-4204D
Gross Weight: 1.85kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

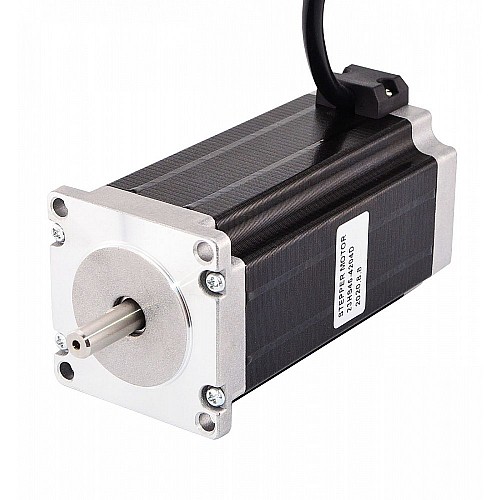

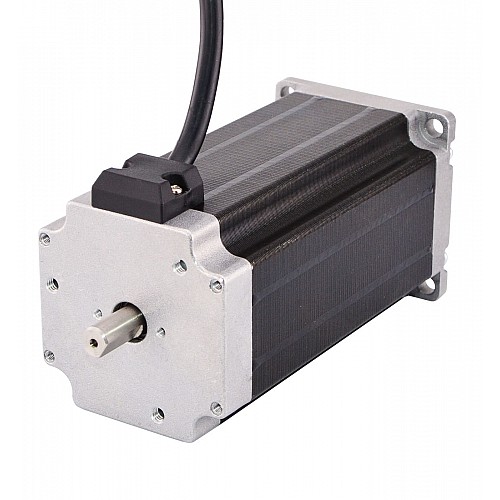

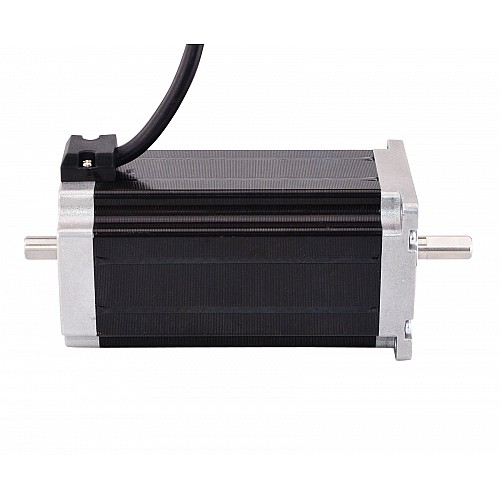

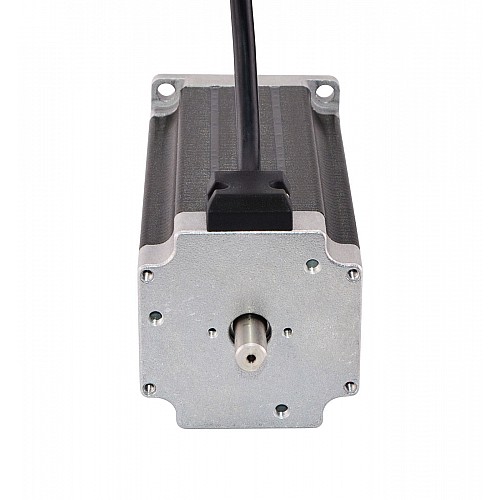

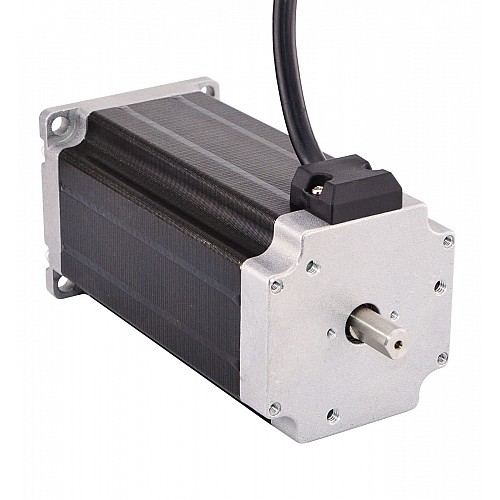

This is a dual-shaft motor with a 13.5mm long rear shaft and holding torque of 2.8Nm(396.51oz.in) , and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

Manufacturer Part Number: 23HS45-4204D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 2.8Nm(396.51oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.9ohms
Inductance: 3.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Length: 15mm
Rear Shaft Length: 13.5mm
Rear Shaft Diameter: Φ8mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	280
Holding Torque(oz.in)	396.51
Inductance(mH)	3.8
Phase Resistance(ohms)	0.9
Rated Current(A)	4.2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	113
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	1750
