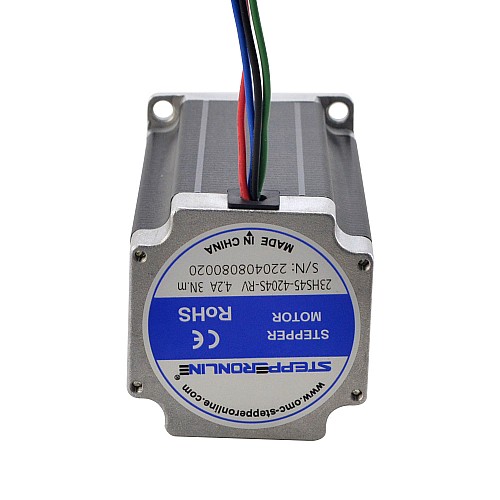

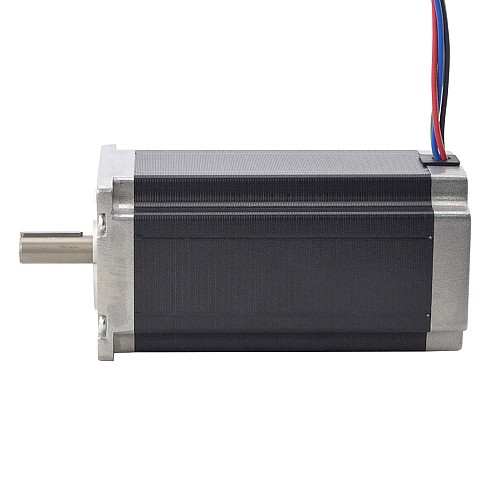

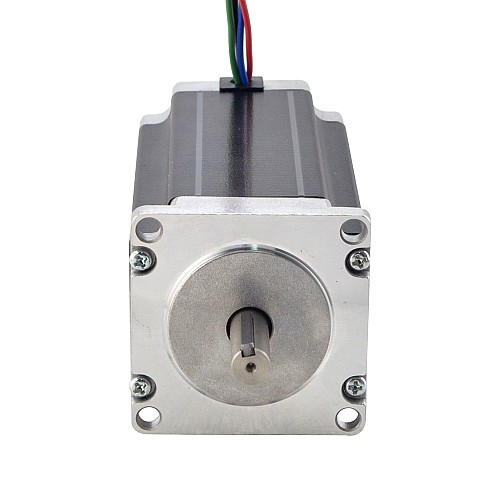

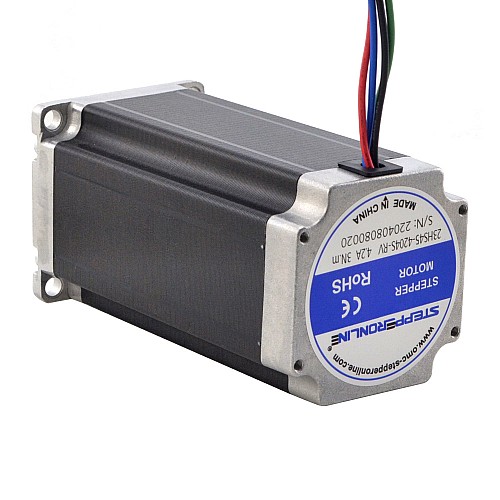

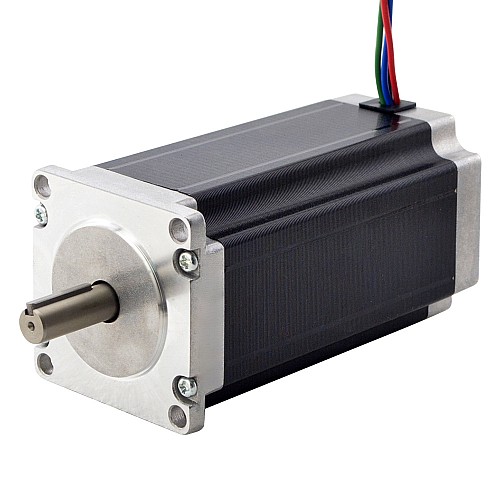

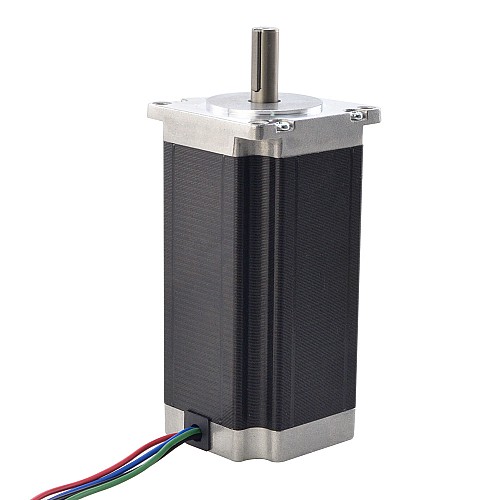

Nema 23 Stepper Motor 3Nm(425oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer

0 reviews - Write a review

C$53.03

5 + C$50.26

10 + C$47.79

50 + C$45.54

100 + C$43.48

In Stock: 10000
Model: 23HS45-4204S-RV
Gross Weight: 1.90kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 334

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This motor has a torque of 3.0Nm(425oz.in) and its shaft is a 9mm keyway shaft, it can fit with NMRV30 Worm Gearbox directly.

Electrical Specification

Manufacturer Part Number: 23HS45-4204S-RV
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms
Inductance: 3.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ9mm
Shaft Length: 25mm
Key-way Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Weight: 1.8kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Inductance(mH)	3.4
Phase Resistance(ohms)	0.88
Rated Current(A)	4.2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	113
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	9
Shaft Length(mm)	25
Single Shaft/Dual Shaft	Single Shaft
