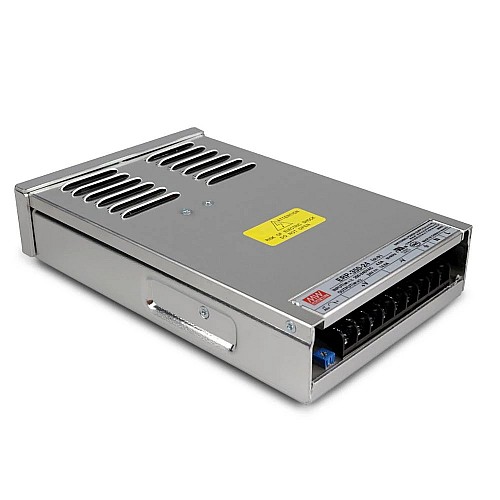

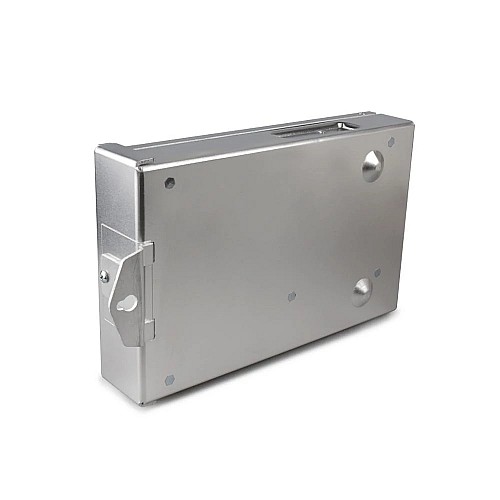

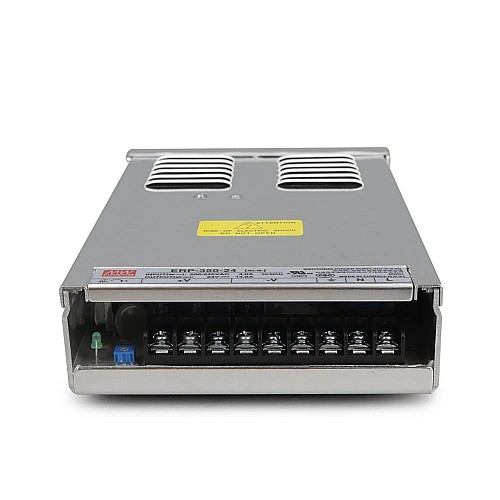

ERP-350-24 MEANWELL 350.4W 14.6A 230VAC Single Output Switching Power Supply
0 reviews - Write a review
C$54.09
5 + C$52.51
10 + C$51.02
50 + C$49.61
100 + C$48.28
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: ERP-350-24
  • Gross Weight: 0.90kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 14.6A output
  • AC input voltage range: 180 ~ 264VAC
  • Rated power: 350.4W
  • Withstand 300VAC surge input for 5 seconds
  • Design against rain splash
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • LED indicator for power on
  • Low cost, high reliability
  • 100% full load burn-in test
  • 3 years warranty

Applications

  • LED strip lighting
  • LED channel letters
  • LED display
Electrical Specification
Efficiency(%) 89%
Max. Output Current(A) 14.6
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 220.4 x 130 x 48
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 180 - 264 / 254 - 370
Output Voltage(VDC) 24
PFC Function No
Power Type Switching Power Supply
Power(W) 350.4
Physical Specification
Inventory Method Shared Inventory
File Size
ERP-350.pdf 638.69KB Download
