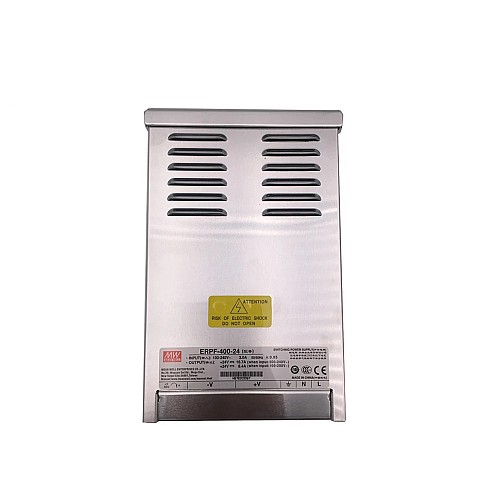

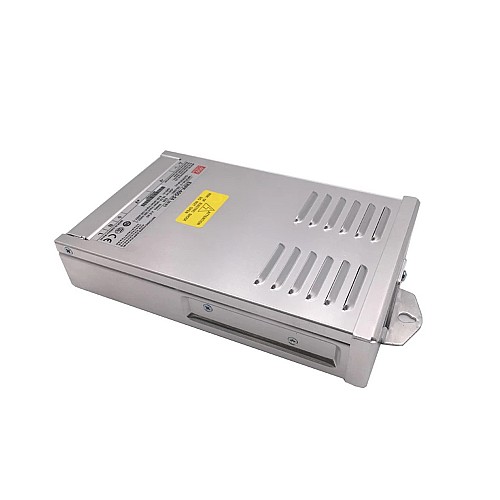

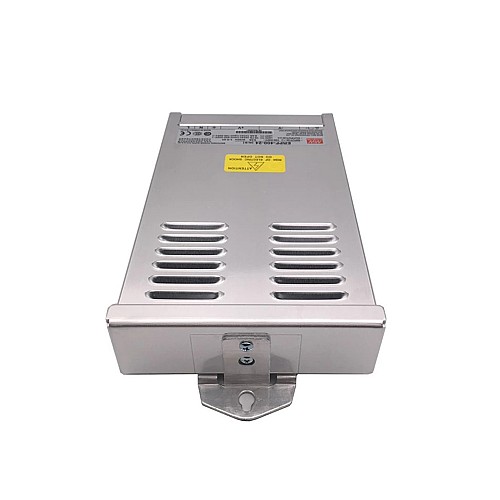

ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply

ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply - ERPF-400-24 | StepperOnline CA
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply
0 reviews - Write a review
C$62.32
5 + C$60.50
10 + C$58.79
50 + C$57.16
100 + C$55.63
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: ERPF-400-24
  • Gross Weight: 1.10kg
  • Certificated: ISO, CE, RoHS
Sold: 1

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 16.7A output
  • AC input voltage range: 180 ~ 264VAC
  • Rated power: 400.8W
  • Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)
  • Built-in active PFC function
  • High efficiency up to 91%
  • Design against rain splash
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • LED indicator for power on
  • Low cost, high reliability
  • 100% full load burn-in test
  • 3 years warranty

Applications

  • LED strip lighting
  • LED channel letters
  • LED display
Electrical Specification
Efficiency(%) 90%
Max. Output Current(A) 16.7
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 220.4 x 130 x 48
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 90 - 264 / 127 - 370
Output Voltage(VDC) 24
PFC Function Yes
Power Type Switching Power Supply
Power(W) 400.8
Physical Specification
Inventory Method Shared Inventory
File Size
ERPF-400.pdf 683.96KB Download
