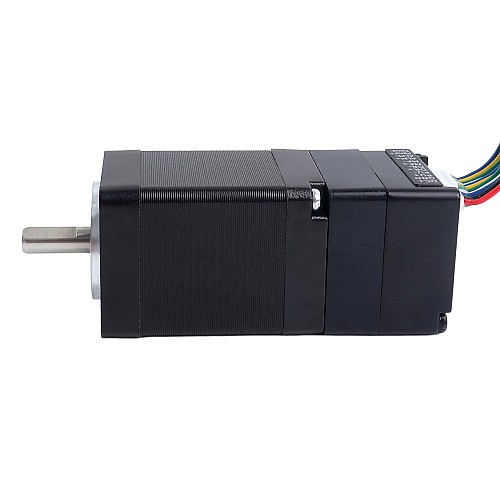

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated Closed Loop Stepper Servo Motor 24VDC 16-bit Encoder
0 reviews - Write a review
C$91.52
5 + C$88.39
10 + C$85.48
50 + C$82.74
100 + C$80.17
  • In Stock: 200
  • Model: ESS11-P01
  • Gross Weight: 0.21kg
  • Certificated: ISO, CE

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product

This is a ESS series Nema 11 integrated stepper motor features a holding torque of 7.4Ncm(10.48oz.in), peak current range of 0.1 to 1.2A, input voltage of 24VDC, and a 16-bit incremental encoder.
It adopts next-generation 32-bit ARM control technology and power angle control technology. It can achieve a maximum speed of over 3000 RPM, with high-speed torque attenuation significantly lower than that of ordinary open-loop drivers, effectively reducing motor heating and vibration. Equipped with a 16-bit magnetic encoder, it greatly improves the machining efficiency and accuracy of the equipment. The load-based current control technology effectively reduces motor heating and extends the motor's service life. The built-in alarm output signal of the driver facilitates monitoring and control by the host computer, while the position out-of-tolerance (excessive position error) alarm ensures safe operation of the machining equipment.

Features

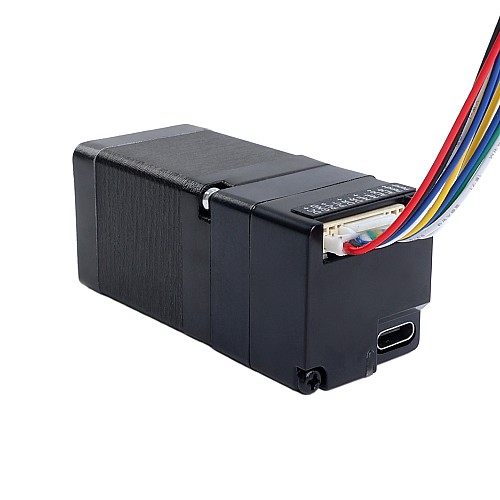

  • Type-C debugging port
  • Operating voltage: DC24V
  • Excellent high-speed performance and rigidity
  • Next-generation 32-bit ARM technology
  • Integrated design combining driver and motor into one unit
  • Easy installation, small footprint, and simple wiring
  • Low torque attenuation, speed up to 3000 rpm
  • Built-in protection functions including overvoltage, undervoltage, and overcurrent
  • Built-in alarm output for easy monitoring and control
  • Intelligent current regulation reduces vibration, noise, and heating, with 35% efficiency improvement

Electrical Specifications

  • Manufacturer Part Number: ESS11-P01
  • Holding Torque: 7.4Ncm(10.48oz.in)
  • Input Voltage: 24VDC
  • Output Peak Current: 0.1 - 1.2A
  • Logic Input Current: 10mA
  • Logic Input Voltage: 5V
  • Rotor Inertia: 10g·cm²
  • Encoder Type: Incremental
  • Encoder Output Type: Differential
  • Encoder Resolution: 16bit
  • Isolation Resistance: More than 100MΩ
  • Dielectric strength: 500VAC for 1MIN.
  • Insulation Class: B 130°C[266°F]

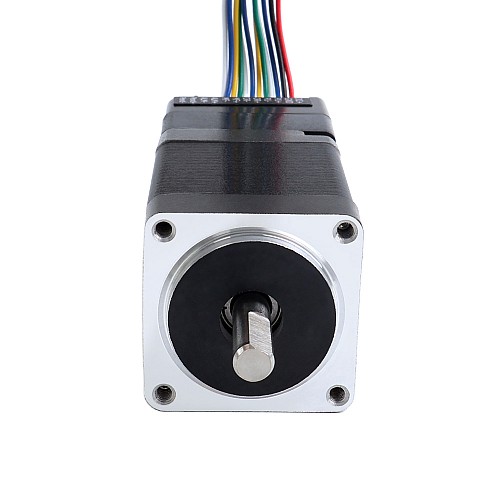

Physical Specifications

  • Frame Size: 28 x 28mm
  • Body Length: 62.1mm
  • Shaft Diameter: Φ5mm
  • D-cut Shaft Length: 10mm
  • Shaft Length: 15mm
  • Weight: 170g

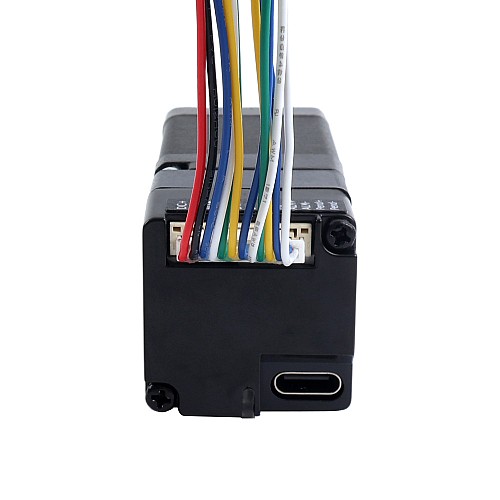

Connector Specification

  • Housing Model: 502380-1200
  • Terminal Model: 5023810000

Connection

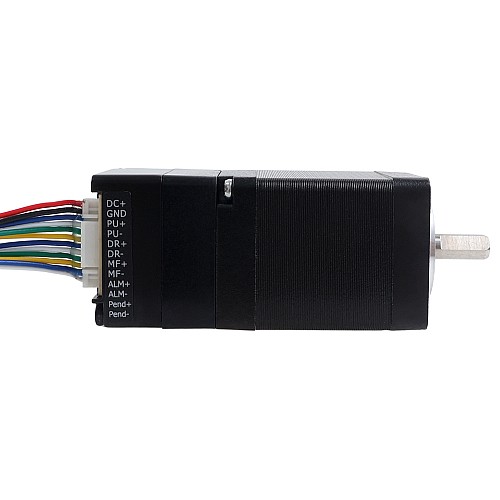

DC+
GND
PUL+
PUL-
DR+
DR-
MF+
MF-
ALM+
ALM-
PEND+
PEND-
Red
Black
Blue
White
Green
Yellow
Blue
White
Green
Yellow
Blue
White
Product Type
Product Type Integrated Stepper Motor
Electrical Specification
Analog Input No
Control Modes Pulse Mode
Encoder Feedback Yes (Closed Loop)
Encoder Resolution 16-bit
Encoder Type Incremental
Holding Torque(Ncm) 7.4
Holding Torque(oz.in) 10.48
Input Voltage Reference(V) 24 - 36DC
Input Voltage(V) 24DC
Physical Specification
Body Length(mm) 62.1
Frame Size(mm) Nema 11 (28 x 28)
IP Rating 40
Shaft Diameter(mm) 5
Shaft Length(mm) 15



File Size
ESS11-P01_Full_Datasheet.pdf 180.77KB Download

Write a review

Note: HTML is not translated!
Bad Good
Tags: Shaft Diameter(mm): 5, Shaft Length(mm): 15, Input Voltage(V): 24DC, Encoder Resolution: 4096, Output Signal Channels: 2, Holding Torque(Ncm): 7.4, Holding Torque(oz.in): 10.48, Body Length(mm): 38.9, Frame Size(mm): Nema 11 (28 x 28), Product Type: Integrated Stepper Motor, Encoder Type: Incremental, IP Rating: 40, Control Modes: Pulse Mode, Analog Input: No, Encoder Feedback: Yes (Closed Loop), Input Voltage Reference(V): 24 - 36DC, Inventory Method: Dedicated Inventory
