Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 5:1 Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$134.68

5 + C$127.31

10 + C$120.69

50 + C$114.73

100 + C$109.33

In Stock: 10000
Model: 11HS20-1004D-E1000-PG5
Gross Weight: 0.36kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

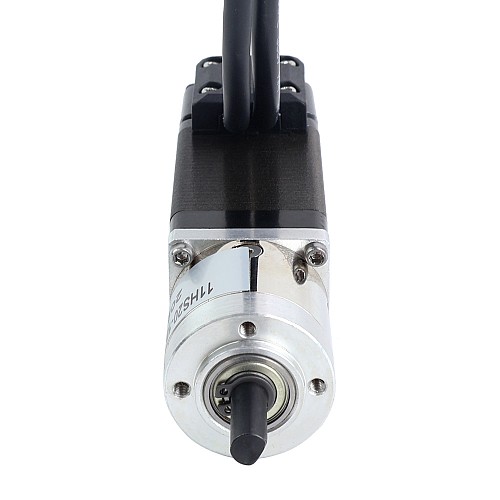

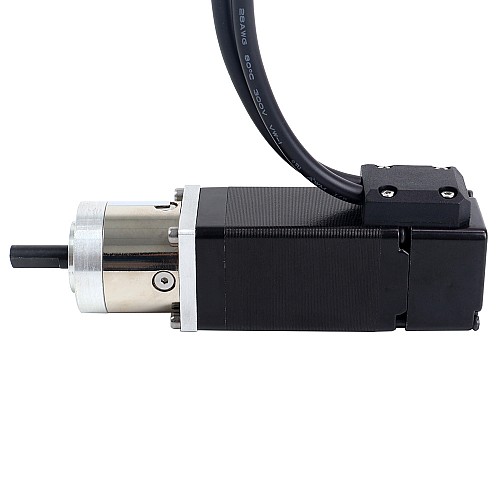

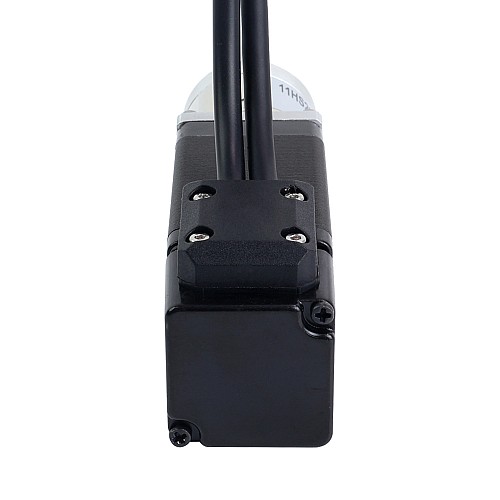

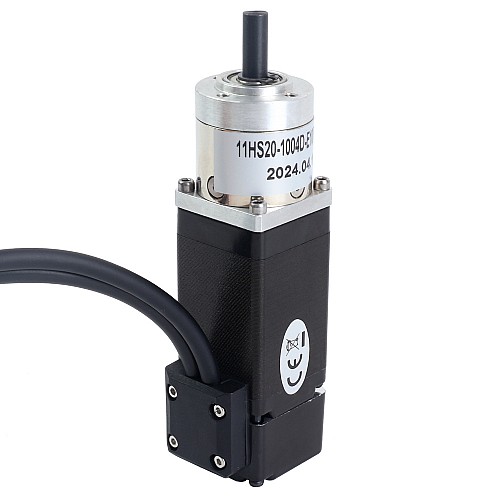

This is a Nema 11 closed loop stepper motor that is consist of a 1000ppr(4000cpr) incremental optical encoder and a planetary gearbox with a gear ratio of 5.18:1. The built-in encoder and gearbox make the motor perfect for applications that have limited spaces and require accurate positioning capabilities and high torque delivery at low speeds.

Motor Specification

Manufacturer Part Number: 11HS20-1004D-E1000-PG5
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.14Nm(19.83oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.5ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Number of Leads: 4
Lead Length: 300mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 29.2mm
Gear Ratio: 5.18:1
Efficiency: 90%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)

Encoder Specification

Output Circuit Type: Differential Type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 Channels
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
High Level Output Voltage: 2.4V - Vcc
Low Level Output Voltage: ≤ 0.4V

Connection

Pin	1	2	3	4
Motor	A+	A-	B+	B-
Color	Black	Green	Red	Blue

Encoder	VCC	GND	EA+	EA-	EB+	EB-	EZ+	EZ-
Color	Red	Black	White	Yellow	Orange	Gray	Green	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	14
Inductance(mH)	3.2
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	3.5
Rated Current(A)	1.0
Stepper Motor with	Encoder/Gearbox
Physical Specification
Body Length(mm)	51
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	5
Gearbox Type	PG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
