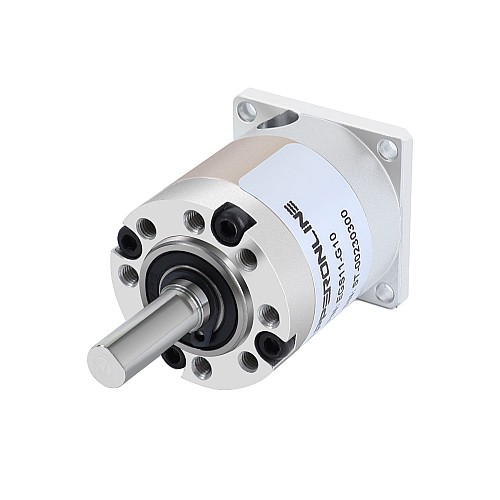

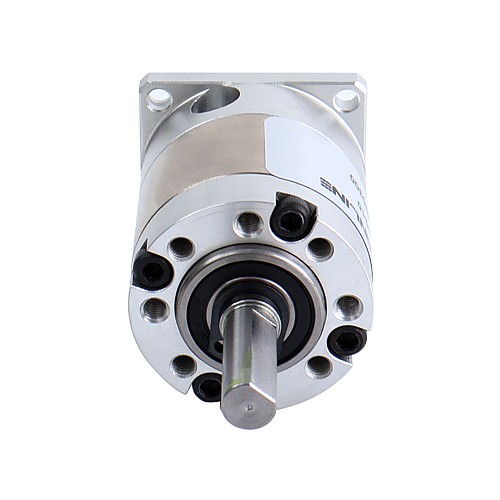

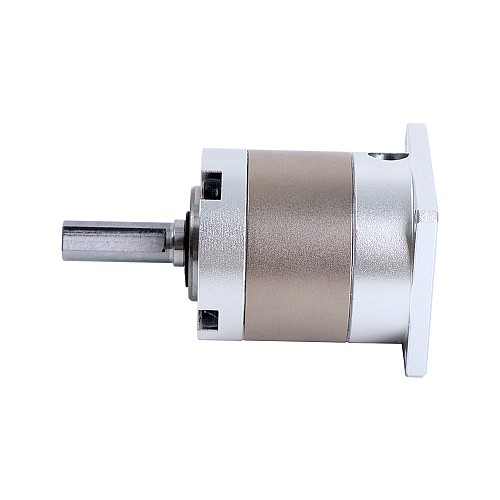

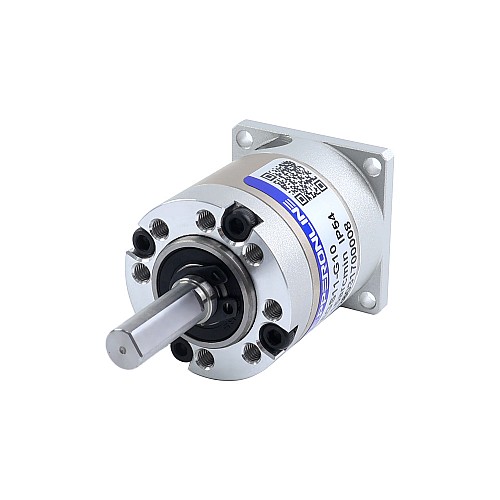

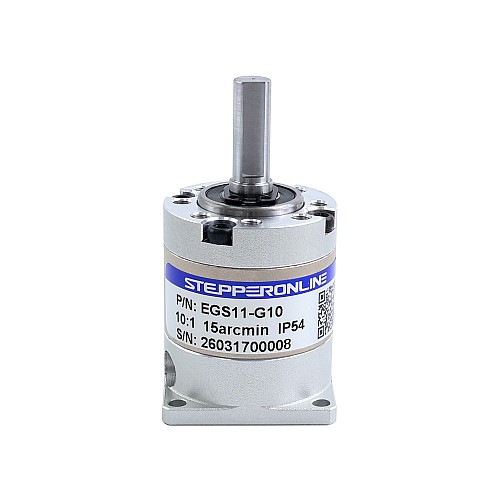

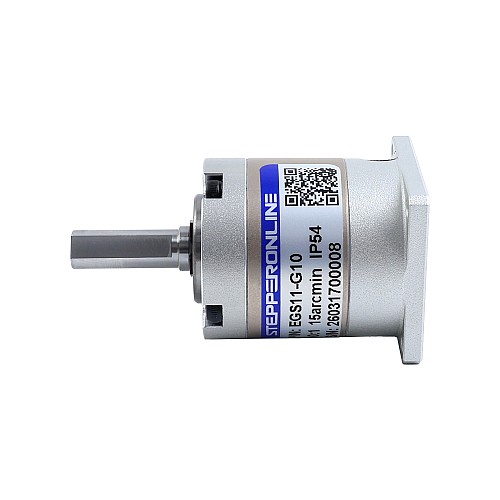

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 11 Stepper Motor

1 reviews - Write a review

C$42.03

5 + C$40.30

10 + C$38.72

50 + C$37.24

100 + C$35.88

In Stock: 10000
Model: EGS11-G10
Gross Weight: 0.15kg
Certificated: ISO, CE, REACH

Sold: 131

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

The size of this gearbox is 28 x 28mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 10:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Gearbox Specifications

Part Number: EGS11-G10
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 96%
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 1Nm(8.85lb-in)
Moment Permissible Torque: 2Nm(17.7lb-in)
Rated Input Speed: 1000rpm
Noise: <=55dB(1000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 28 x 28mm
Gearbox Length: 33mm

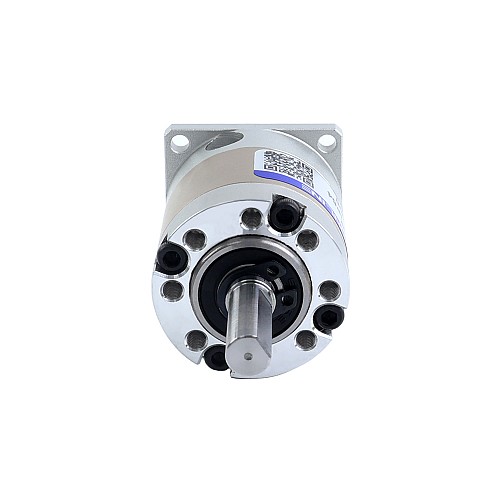

Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 20mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 6.5-10.5mm

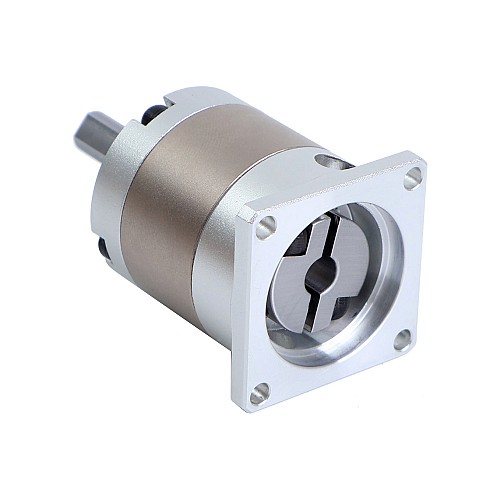

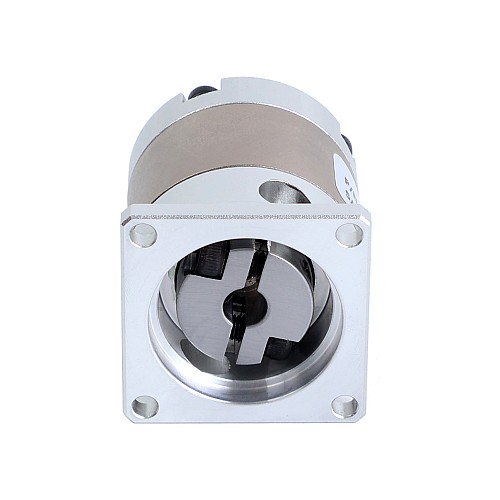

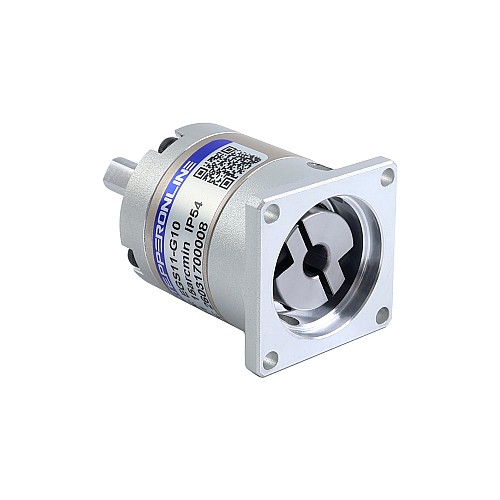

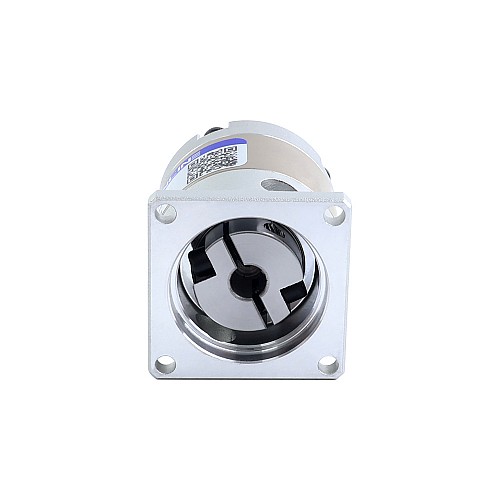

This in-line planetary gearbox has a built-in input shaft coupling and can only match Nema 11 stepper motors with a diameter of 5mm and a shaft length of 6.5-10.5mm. Currently, we have these motors 11HS12-1004D-E1000-EGS,11HS20-1004D-E1000-EGS,11HS12-0704S and 11HS20-0704S available to match this gearbox.

Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	28 x 28
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	33
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	6.5 - 10.5
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 11 Stepper Motor
Output Shaft Diameter(mm)	6
Output Shaft Length(mm)	20
Output Shaft Type	D
Product Series	EG
