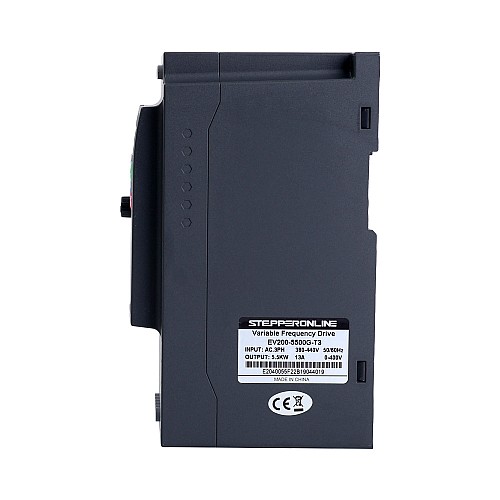

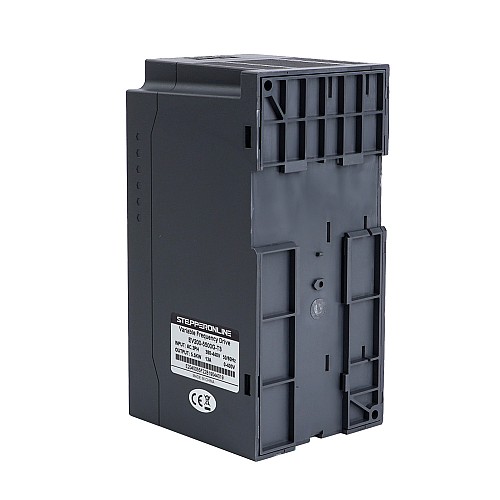

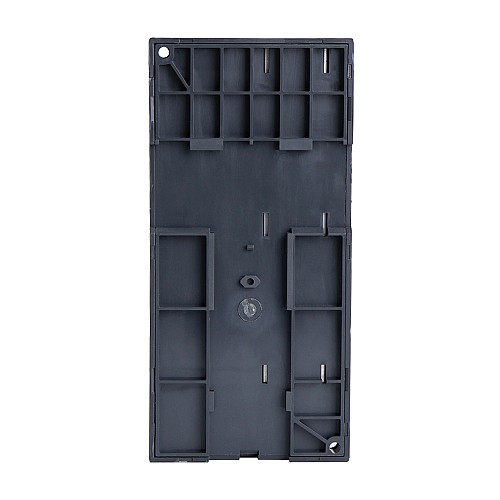

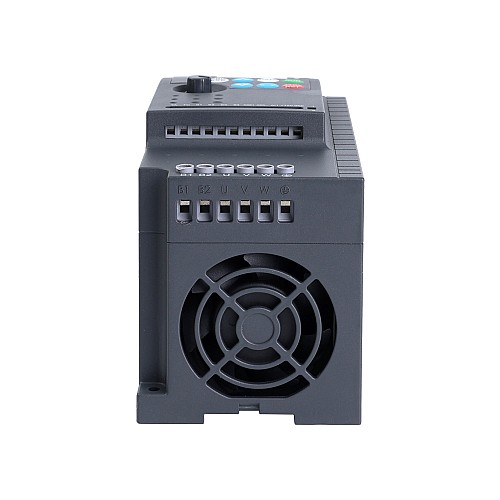

EV200 Series VFD 7.5HP 5.5KW 13.0A Three Phase 380V Variable Frequency Drive

Discontinued

EV200 Series VFD 7.5HP 5.5KW 13.0A Three Phase 380V Variable Frequency Drive

0 reviews - Write a review

C$0.00

In Stock: 1
Model: EV200-5500G-T3
Gross Weight: 1.38kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

This is a 7.5HP 5.5KW 13.0A three phase 380V variable frequency drive. EV200 series high-performance small inverter is a new generation of high-quality, high-reliability small inverter. Based on the needs of small power, small size and simple speed regulation, single-Three-phase 380VAC and three-Three-phase 380VAC small inverters are targetedly launched, which are easy to operate and more cost-effective.

Key Features

New narrow body design, compact structure layout, smart design, which is conducive to saving installation space and reducing power distribution costs
Independent air duct, straight up and down, efficient heat dissipation; can be installed side by side, rational use of installation space, greatly reducing the cost of power distribution cabinet
The keyboard can be external

Key Specification

Input Voltage: Three-phase 380VAC
Input Current: 14.6A
Output Current: 13.0A
Rated Output Voltage: Three-phase 380VAC
Output Frequency: 0 - 500Hz
Power: 5.5Kw
Dimension: 85.5*180*116.4mm
Mounting Size: 73*168mm

This inverter is not suitable for single-phase motors.

Variable Frequency Drive Specification
Input Current	14.6A
Input Frequency	50 / 60Hz
Input Voltage	3PH 380VAC
Output Current	13.0A
Output Frequency	500HZ
Output Power	7.5HP / 5.5KW
Physical Specification
Inventory Method	Dedicated Inventory

File	Size
EV200_Simple_Manual.pdf	821.38KB	Download
EV200_Series_User_Manual.pdf	688.69KB	Download
EV200_Series_Full_User_Manual.pdf	1.51MB	Download
EV200_Series_Definition_of_Communication_Data_Address.pdf	1.01MB	Download
