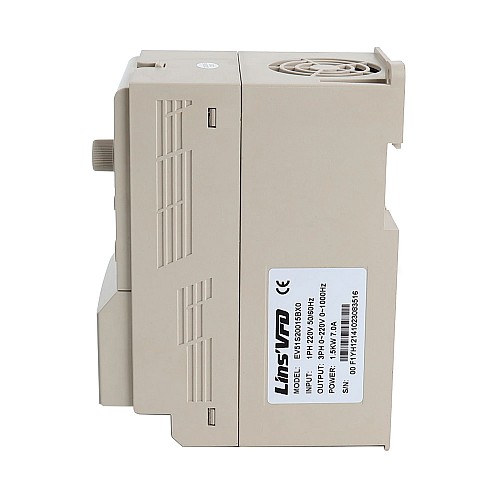

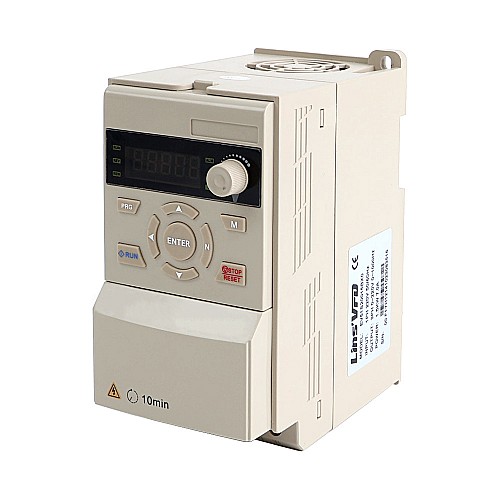

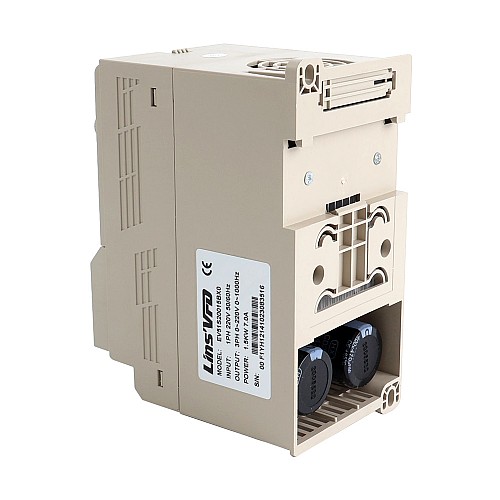

EV51 Series VFD 2HP 1.5KW 7.0A Single Phase 220V CNC Spindle Motor Variable Frequency Drive

0 reviews - Write a review

C$85.85

5 + C$83.66

10 + C$82.61

50 + C$81.59

100 + C$80.59

In Stock: Pre-order
Brand: LinsVFD
Model: EV51S20015BX0
Gross Weight: 1.17kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This VFD with power 2HP(1.5KW) and single phase 220V input voltage. This model is designed for the engraving machine industry, it has been optimized in software and hardware to make its performance better match the operating characteristics of the CNC spindle motor.

Key Specification

Rated Input Voltage: 1-Phase 220V
Allowed Input Voltage: 180~260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 8.2A
Power: 2HP(1.5KW)
Output Current: 7.0A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Humidity	5%~95%RH, No condensation
Store Temperature	-40℃ ~ +70℃
Variable Frequency Drive Specification
Acceleration/Deceleration Curve	Line / S-curve
Allowed Input Voltage	180 - 260VAC
Altitude	Derating use abouve 1000M, derating 10% per 1000M
Command Source	Keypad, Terminal, Communication
Control Modes	V/F, SVC
Environment Temperature	-10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use)
External Keypad	Yes
Frequency Accuracy	Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%)
Frequency Resolution	Digital (0.1Hz) / Anolog (Max. Frequency+/-1%)
Input Current	8.2A(1PH)
Input Frequency	50 - 60Hz
Input Voltage	1PH 220VAC
LED Display	Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm
Modulation Mode	SVPWM
Motor Type	Asynchronous Motor, Synchronour Motor, Single Phase Motor
None-stop When Instantaneous Power Off	None-stop when instantaneous power off, automatic frequency drop
Output Capacity	150% Rated Current 60s, 180% Rated Current 2s
Output Current	7.0A
Output Frequency	1000HZ
Output Power	2HP / 1.5KW
Output Voltage	0 - Rated Input Voltage
PID	Support main setting + PID
Protection Function	Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc
Rapid Current Limit	Limit current rapidly within the current protection value, to ensure the safety of the equipment
Set Value Source	Digital, Analog, Multi-speed, Communication
Speed Range	1 : 100(SVC)
Start Torque	1Hz / 150%
Store Environment	Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc
Vibration	<5.9M/S (0.6g)
