CNC Spindle Motor Air Cooled 220V 1.5KW 24000RPM 400Hz ER11 Collet

0 reviews - Write a review

C$155.80

5 + C$151.26

10 + C$146.96

50 + C$142.91

100 + C$139.08

In Stock: 10000
Model: GDZL80x73-1.5B4
Gross Weight: 4.03kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

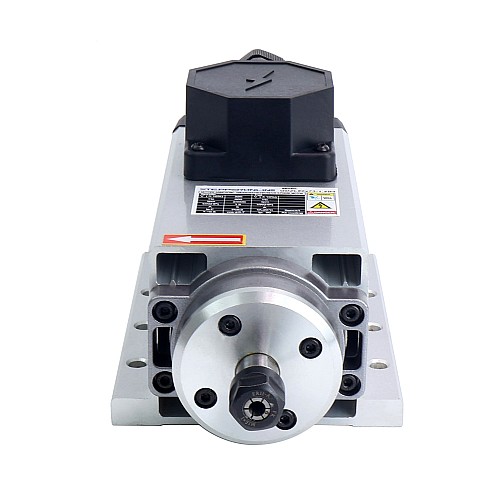

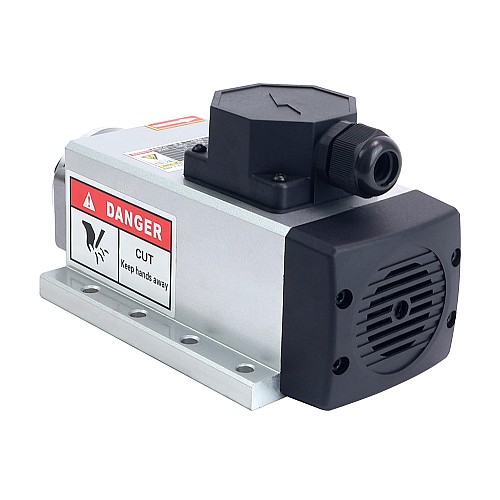

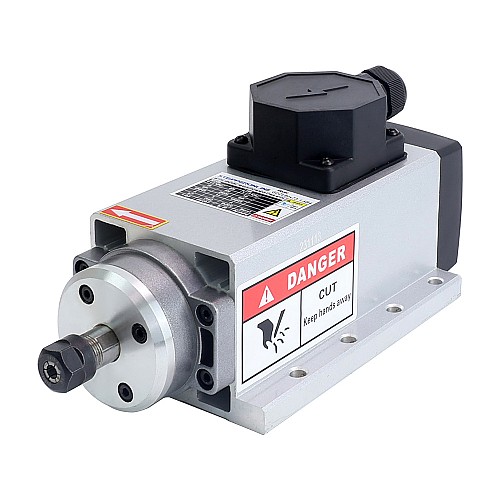

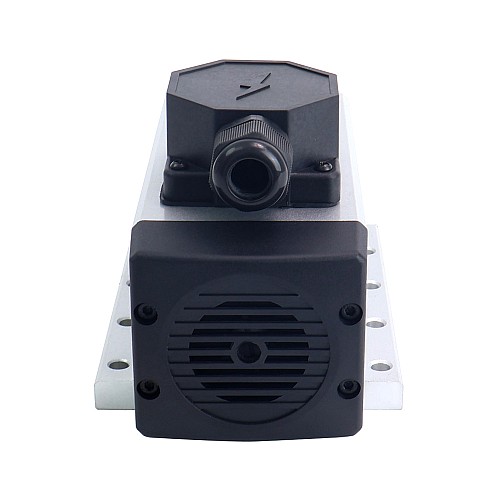

This air cooled 1.5KW square spindle motor,comes with 24000rpm high speed, ER11 collet, works at 3 phase 220V 400Hz, has dimension of 175.5x80x73mm and flange for easy installation. It is designed for applications that require motors to operate accurately at extremely high speeds and widely applied in engraving machines, cutting plotter, textile machine, 3D printer, medical instruments, robot and cnc machine, etc.

Specification

Manufacturer Part Number: GDZL80x73-1.5B4
Rated Torque: 0.6Nm(84.97oz.in)
Material: Stainless steel
Power: 1.5KW
Voltage: 220VAC
Current: 5.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER11 Collet
Size: 175.5 x 80 x 73mm(Length: 175.5mm, Width: 80mm, Height: 73mm)

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	175.5
Collet Size	ER11
Material	Stainless steel
Power(Kw)	1.5
Shape	Square
Voltage(VAC)	220
Electrical Specification
Current(A)	5.0
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	4
Inventory Method	Dedicated Inventory
