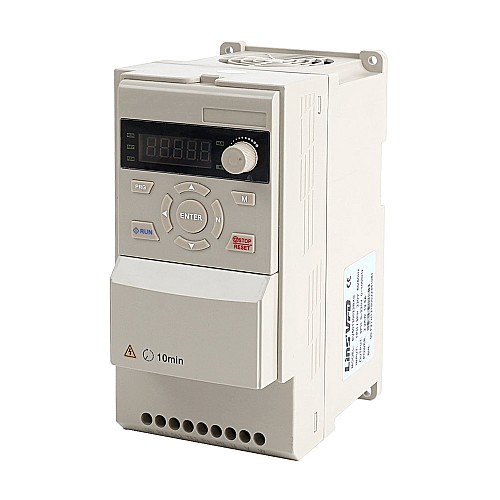

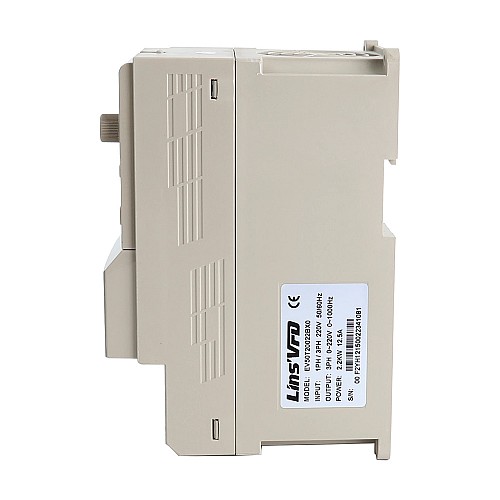

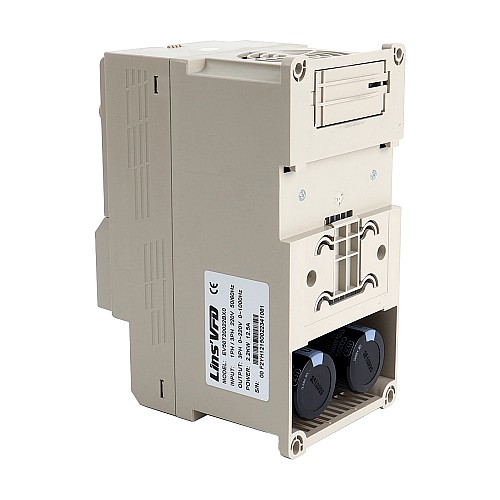

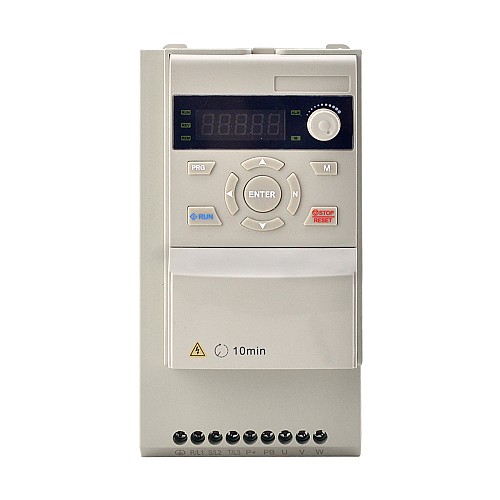

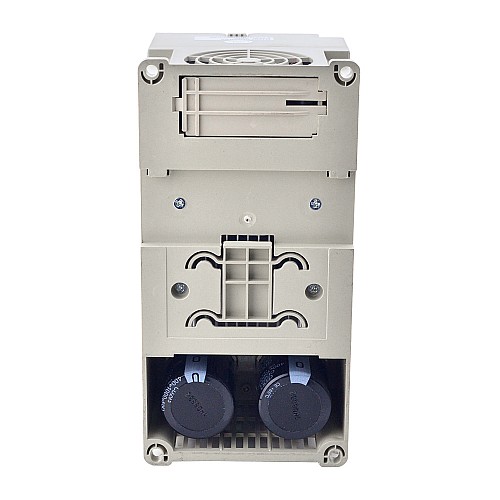

EV50 Series VFD 3HP 2.2KW 12.5A Single/Three Phase 220V Variable Frequency Drive

0 reviews - Write a review

C$117.54

5 + C$114.55

10 + C$113.12

50 + C$111.71

100 + C$110.33

In Stock: Pre-order
Brand: LinsVFD
Model: EV50T20022BX0
Gross Weight: 1.71kg
Certificated: ISO, CE

Sold: 117

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This VFD with power 3HP(2.2KW) and single/three phase 220V input voltage. The EV50 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.

Key Specification

Rated Input Voltage: 1-Phase / 3-Phase220V
Allowed Input Voltage: 1-Phase / 3-Phase180~260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 1-Phase 23A, 3-Phase 13.5A
Power: 3HP(2.2KW)
Output Current: 12.5A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Humidity	5%~95%RH, No condensation
Store Temperature	-40℃ ~ +70℃
Variable Frequency Drive Specification
Acceleration/Deceleration Curve	Line / S-curve
Allowed Input Voltage	1PH / 3PH 220V
Altitude	Derating use abouve 1000M, derating 10% per 1000M
Command Source	Keypad, Terminal, Communication
Control Modes	V/F, SVC
Environment Temperature	-10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use)
External Keypad	Yes
Frequency Accuracy	Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%)
Frequency Resolution	Digital (0.1Hz) / Anolog (Max. Frequency+/-1%)
Input Current	23A(1PH) / 13.5A(3PH)
Input Frequency	50 - 60Hz
Input Voltage	1PH 220V / 3PH 220VAC
LED Display	Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm
Modulation Mode	SVPWM
Motor Type	Asynchronous Motor, Synchronour Motor, Single Phase Motor
None-stop When Instantaneous Power Off	None-stop when instantaneous power off, automatic frequency drop
Output Capacity	150% Rated Current 60s, 180% Rated Current 2s
Output Current	12.5A
Output Frequency	1000HZ
Output Power	3HP / 2.2KW
Output Voltage	0 - Rated Input Voltage
PID	Support main setting + PID
Protection Function	Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc
Rapid Current Limit	Limit current rapidly within the current protection value, to ensure the safety of the equipment
Set Value Source	Digital, Analog, Multi-speed, Communication
Speed Range	1 : 100(SVC)
Start Torque	1Hz / 150%
Store Environment	Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc
Vibration	<5.9M/S (0.6g)
Physical Specification
Inventory Method	Dedicated Inventory

H0110, H0200 customized function card.
Customizable variable frequency drive power 11KW, 15KW, 18.5KW, 22KW, 30KW, 37KW, 45KW, 55KW, 75KW, 90KW, 110KW, 132KW and160KW.
