T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm 23-Bit Encoder IP67

0 reviews - Write a review

C$305.16

5 + C$294.73

10 + C$284.99

50 + C$275.87

100 + C$267.32

In Stock: Pre-order
Model: T6-RS400H2A1-M23
Gross Weight: 2.91kg
Certificated: ISO, CE

Sold: 158

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

T6 Series 400W 3000rpm 1.27Nm 23-bit AC servo products are cost-effective AC digital servo which is designed for position high accurate control, which can provide a perfect solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 23bit, it can provide machines a intelligent performance.
The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption.

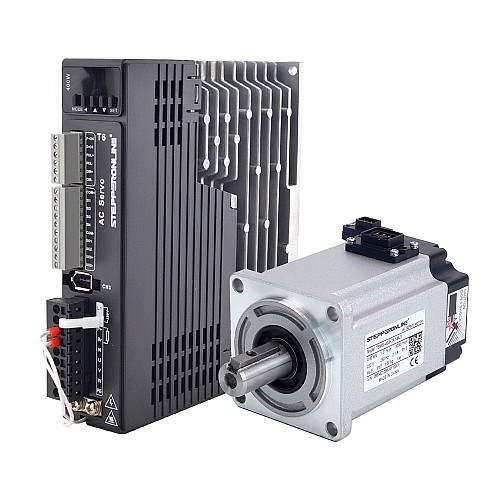

Items in kit

1 x T6-400RS: 400W AC Servo Motor Driver

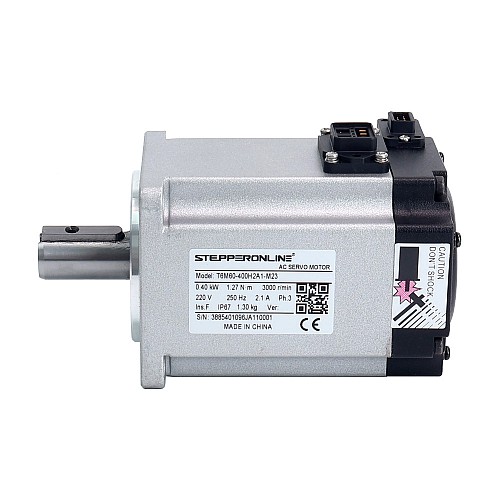

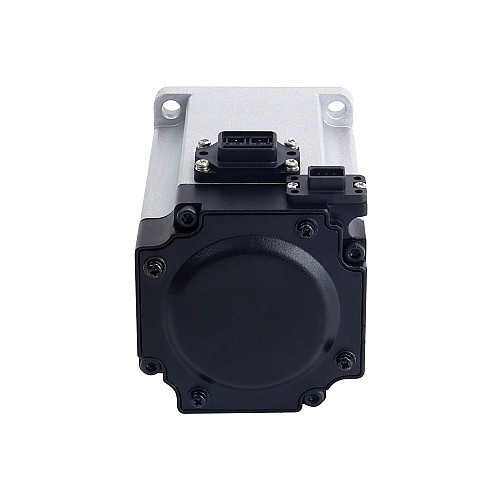

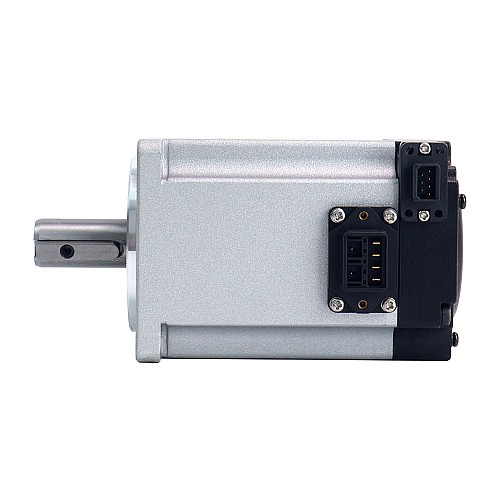

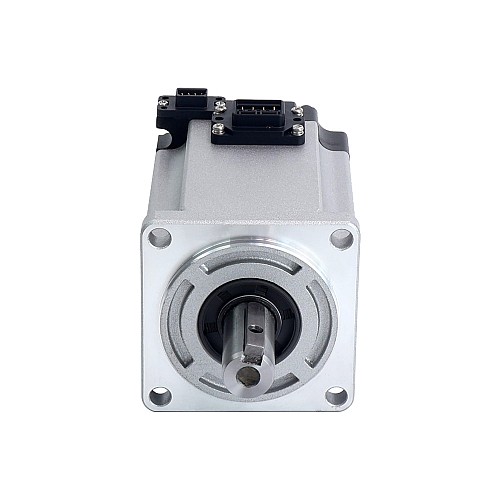

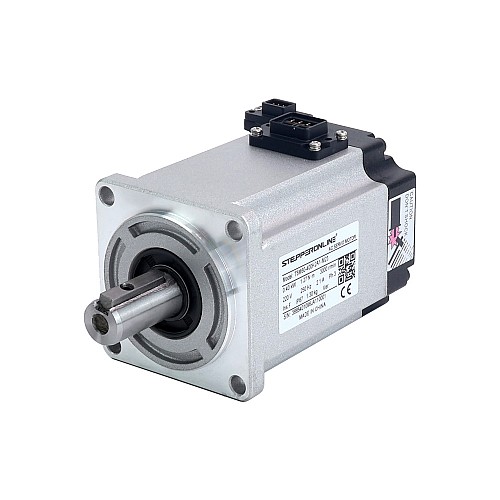

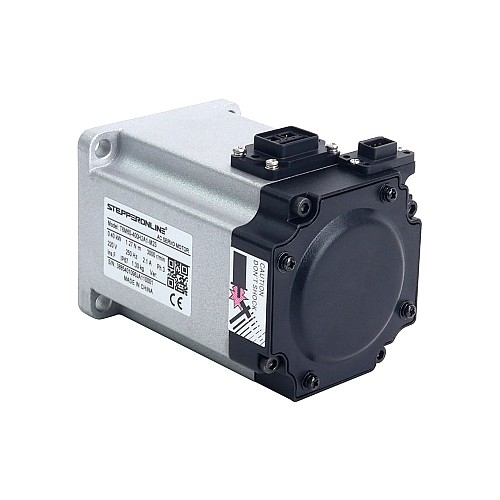

1 x T6M60-400H2A1-M23: 400W AC Servo Motor 3000rpm 1.27Nm 23-Bit Encoder IP67
1 x CMST1M5-2: 1.5m Motor Extension Cable with IP67 Connector
1 x CEST1M5-2: 1.5m Encoder Extension Cable with IP67 Connector
1 x Servo Driver Debugging Cable
1 x USB 2.0 to Serial RS232 Adapter with 1m Cable Converter (option, need purchase separately)
1 x CEAST1M5-2 1.5m Encoder Cable with Battery Box for T6 Servo Motors with 23-bit Absolute Encoder(option, need purchase separately)

Servo Driver Specification

Part Number: T6-400RS
Modbus RS485 communication
Support pulse control
PR function, 16 paths
Encoder signals A/B/Z differential output and Z OC output
4 inputs and 3 outputs
Rated voltage 220VAC 1ph
Rated power 400W
Available 17-bit/23-bit encoder
Automatic motor identification
Dimension: 175*168*40mm
Control Mode: Position Mode, Velocity Mode, Torque Mode, Pr Mode

Servo Motor Specification

Part Number: T6M60-400H2A1-M23
Rated Voltage: 220VAC
Rated Power: 400W
Rated Torque: 1.27Nm
Peak Torque: 3.81Nm
Rated Speed: 3000rpm
Peak Speed: 5000rpm
Rated Current: 2.1A
Peak Current: 6.5A
Torque Const: 0.645N.m/A
Back EMF Const: 39V/krpm
Resistance: 5.7ohm
Inductance: 12mH
Inertia: 0.56kg*m²*10^-4
Poles: 10
Encoder: 23bit absolute, magnetic encoder
IP Rating: IP67
Cable Length: 1.5m (optional lengths are 3m, 5m, 10m)
Shaft diameter: 14mm
Mass Weight: 1.3Kg

The extension cable is also available in lengths of 3m, 5m and 10m in the warehouse in China. You can replace it by paying the price difference. If necessary, please leave a message with the length you expect.

To learn more about the difference between 17-bit and 23-bit T6 servo motors, please refer to this article.

Note: 23-bit encoder can be used as absolute or incremental. If you expect to use 23bit multi-turns encoder as an absolute encoder, please use the absolute encoder cable CEAST1M5-2 and RS485 communication for control, the absolute encoder cable CEAST1M5-2 can also be used as incremental.

If your power supply voltage is 110VAC, you need to use this transformer TR500-A220-A120 when using this servo motor.

Electrical Specification
Control Modes	Pulse/RS485
Encoder Resolution	23bit
Encoder Type	Magnetic Absolute, Magnetic Incremental
Input Voltage(V)	220VAC
Integrated STO or not?	No
Peak Speed(rpm)	5000
Peak Torque(Nm)	3.81
Rated Power(W)	400
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.27
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	67
Shaft Diameter(mm)	14

File	Size
T6M60-400H2A1-M23.pdf	184.22KB	Download
T6_Servo_Quick_Start.pdf	2.01MB	Download
T6M60-400H2A1-M23.STEP	3.63MB	Download
T6_Servo_Simple_Manual.pdf	538.54KB	Download
T6_Servo_Full_Manual.pdf	5.04MB	Download
T6_Debug_Software.zip	19.84MB	Download
T6-400RS.stp	11.21MB	Download
