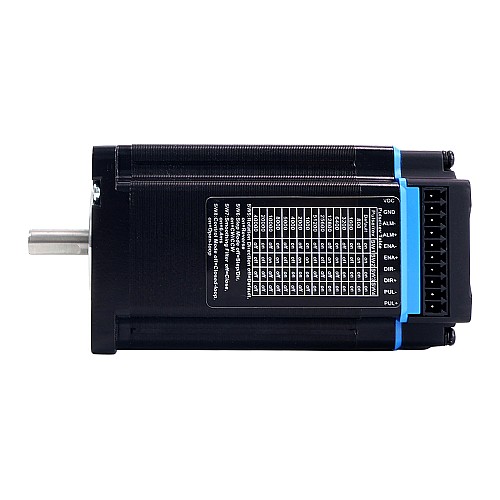

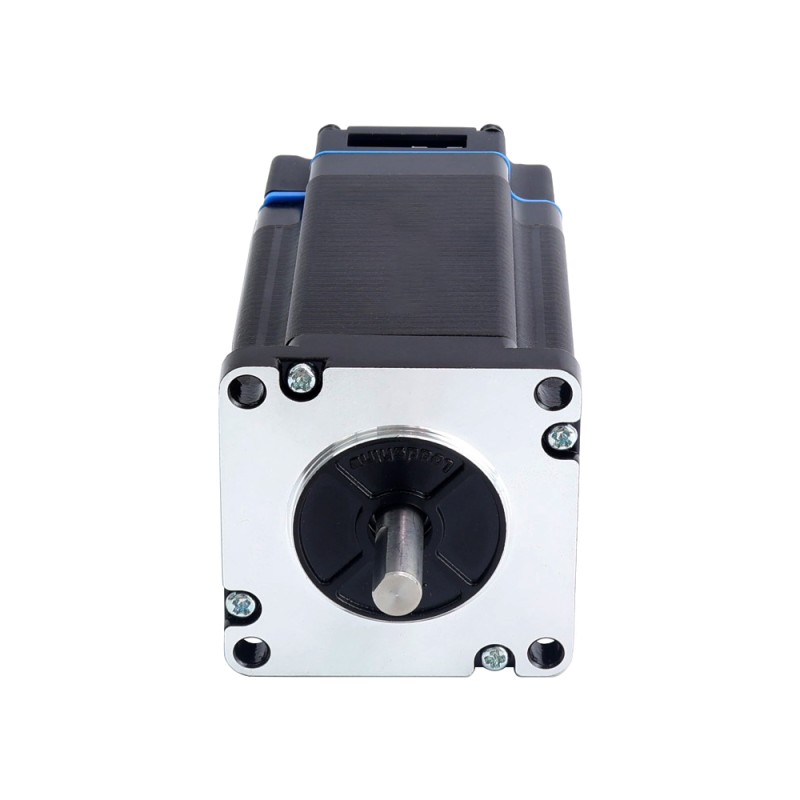

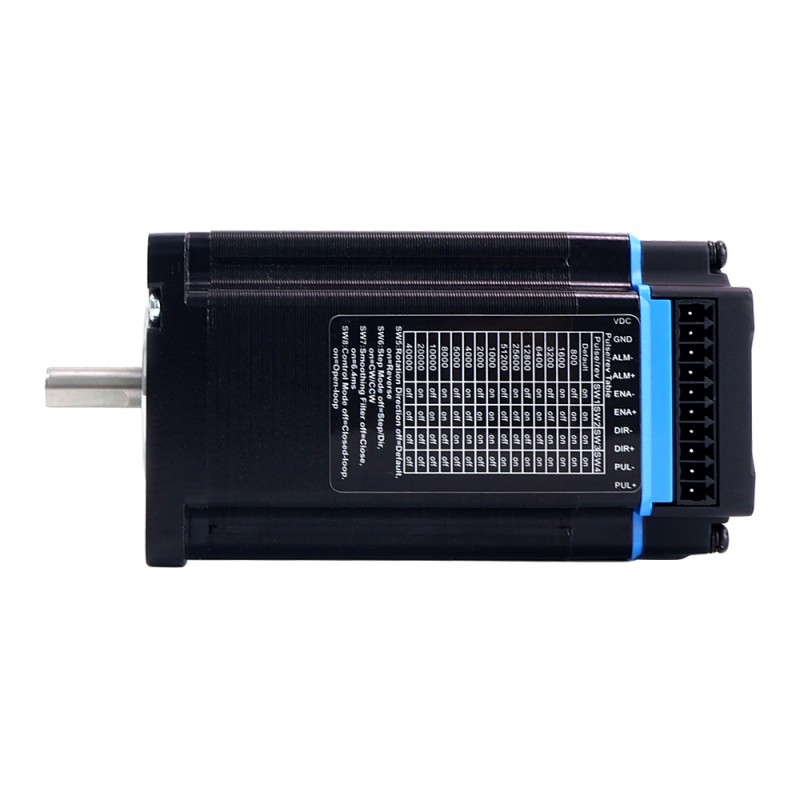

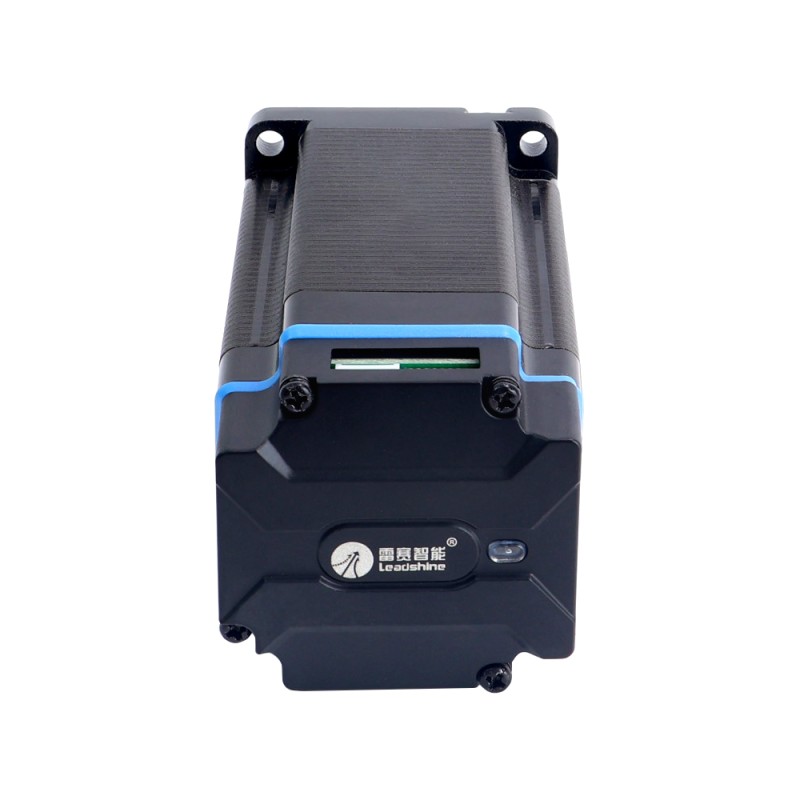

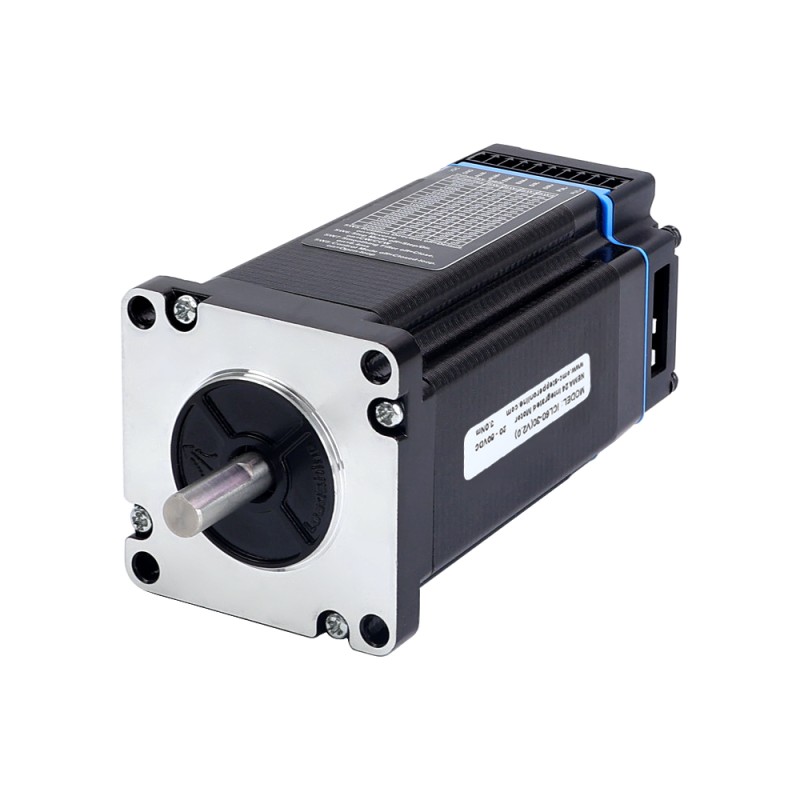

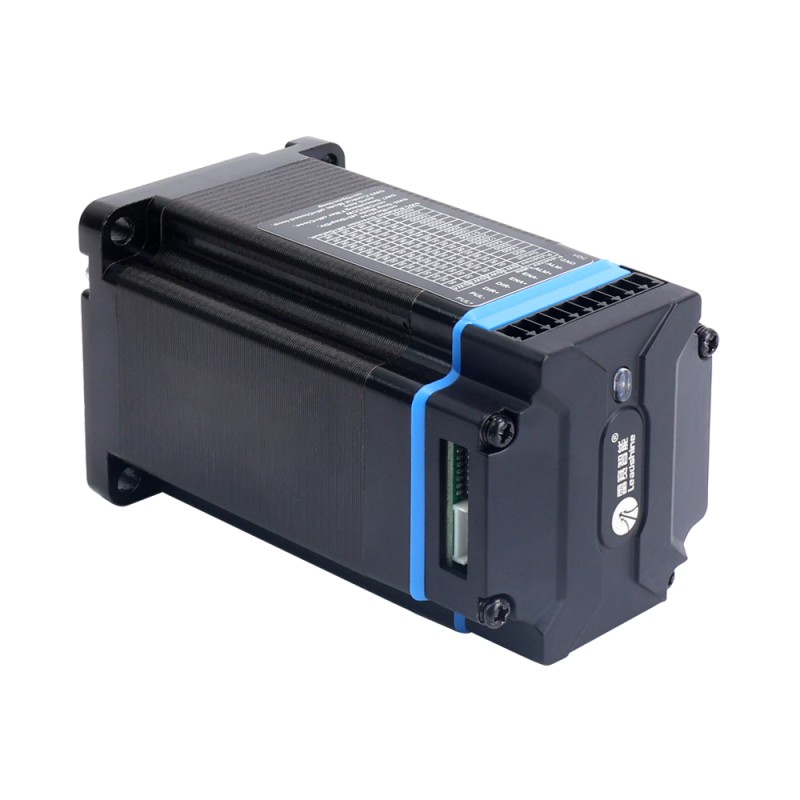

iCL Series NEMA 24 Integrated Closed Loop Stepper Motor 3.0Nm(424.83oz.in) 20-50VDC w/ 14-bit Encoder
This is a Nema 24 integrated closed loop stepper motor with a holding torque of 3.0Nm(424.83oz.in) w... Read More
0 reviews • Write a review
from
C$129.31
5 + C$123.98
10 + C$119.06
50 + C$114.54
100 + C$110.33

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

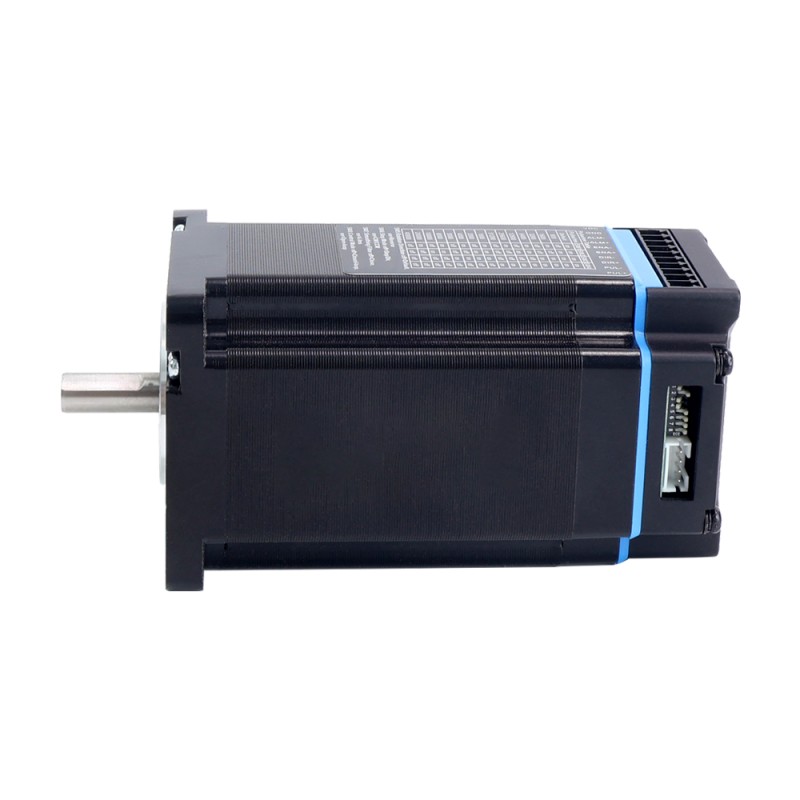

This is a Nema 24 integrated closed loop stepper motor with a holding torque of 3.0Nm(424.83oz.in) with 14-bit encoder. iCL series is stepper motor integrated 14-bit incremental magnetic encoder and drive to solve the loss of step problems in open loop stepper control systems, thus increase system reliability at minimal cost increase. It implements advanced control algorithm based on its tens of years experience in stepper and servo controls.
At very compact size and with all components integrated, the iCL can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and cut/reduce cable and labor costs.
The iCL series is reliable and affordable and performs excellent in many industrial applications such as CNC, 3D printer, stage equipment, medical, electronics, packaging, etc.

Key Features

  • Step&direction and CW&CCW control
  • Low noise and vibration, smooth motion
  • 14-bit single-turn incremental encoder
  • Soft-start with no "jump" when powered on
  • 3 digital inputs, 1 optically isolated digital output
  • RS232 communication for STEPPERONLINE software connection
  • Enhance performance, especially at low speed application(<60RPM)
  • Over voltage, over current, position following error protections, etc.
  • No loss of step & no torque reservation & no hunting or overshooting & no tuning for easy setup

Electrical Specifications

  • Manufacturer Part Number: iCL60-30
  • Holding Torque: 3.0Nm(424.83oz.in)
  • Power Voltage: 20 - 50VDC
  • Insulation Class: B 130°C[266°F]
  • Peak Current: 0.5 - 7.0A
  • Logical Current: 7 - 16mA
  • Logical Voltage: 5V
  • Max. Input Frequency: 200KHz
  • Min. PUL Width: 2.5μs
  • Min. DIR Setup: 5.0μs
  • Command Source: PUL&DIR, CW&CCW

Physical Specifications

  • Frame Size: 60 x 60mm
  • Body Length: 109mm
  • Shaft Diameter: 8mm
  • Shaft Length: 25mm
  • Weight: 1.44kg

Operating Environment and other Specifications(Tj = 25°C/77°F)

  • Environment: Avoid dust, oil fog and corrosive gases
  • Humidity: 40%RH - 90%RH
  • Operating Temperature(Heat Sink): 0°C - 40°C(32°F - 104°F )
  • Vibration: 10 - 50Hz/0.15mm
  • Storage Temperature: -20°C - 65°C (-4°F - 149°F)

Packing List

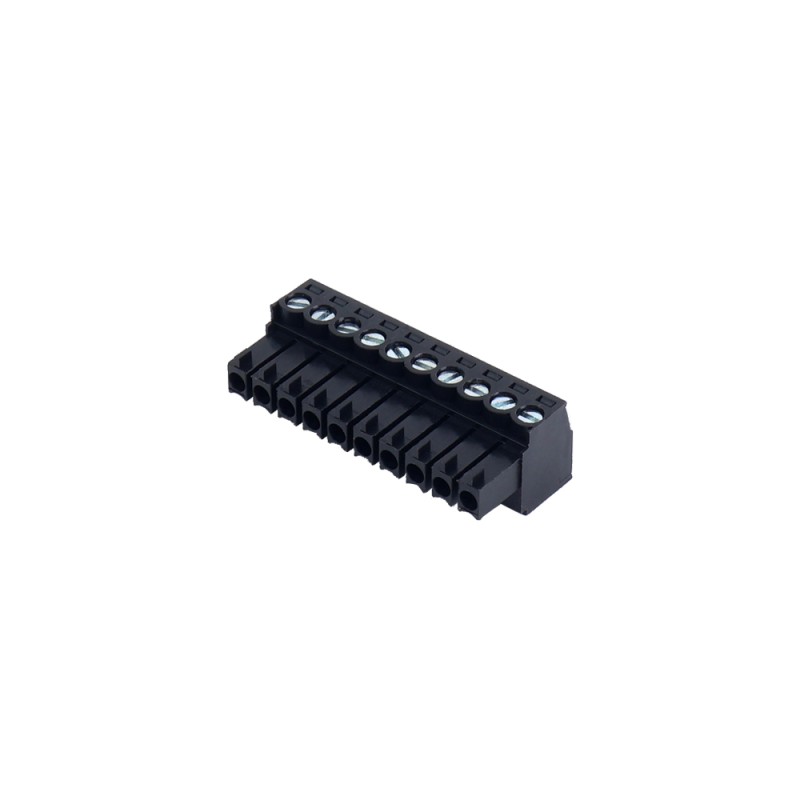

  • 1 x iCL60-30

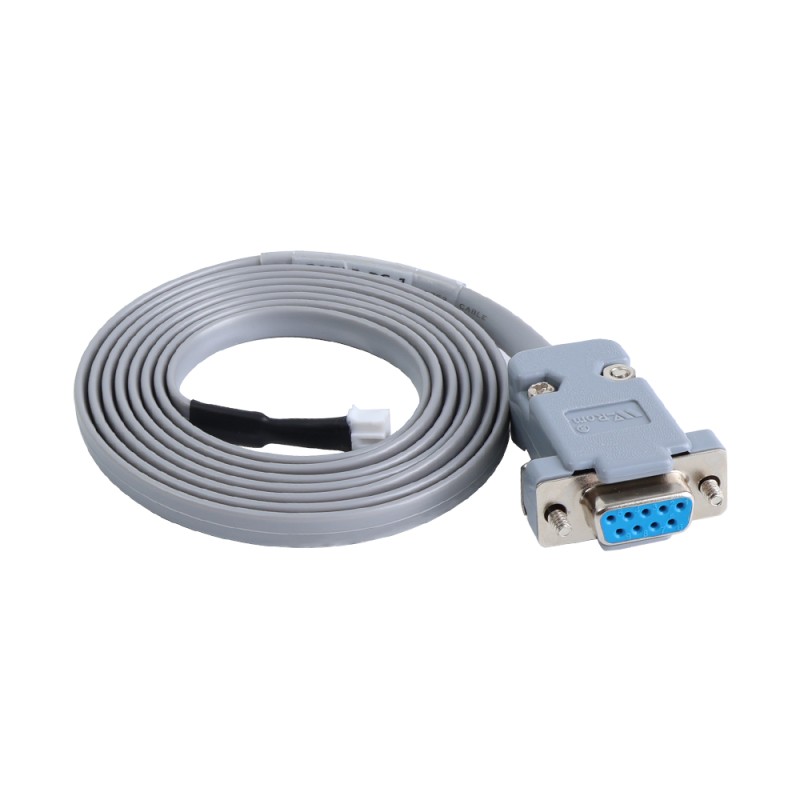

  • 1 x CABLE-PC-1: RS232 cable
Product Type
Product Type Integrated Stepper Motor
Electrical Specification
Analog Input No
Control Modes Pulse Mode
Encoder Feedback Yes (Closed Loop)
Holding Torque(Ncm) 300
Holding Torque(oz.in) 424.83
Input Voltage Reference(V) 24 - 48DC
Input Voltage(V) 20 - 50DC
Physical Specification
Body Length(mm) 109
Frame Size(mm) Nema 24 (60 x 60)
Shaft Diameter(mm) 8
Shaft Length(mm) 25
