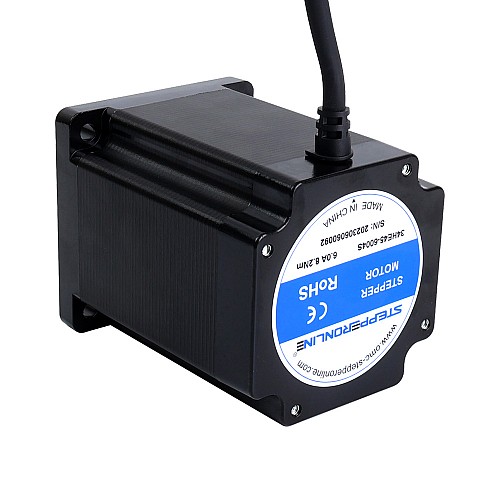

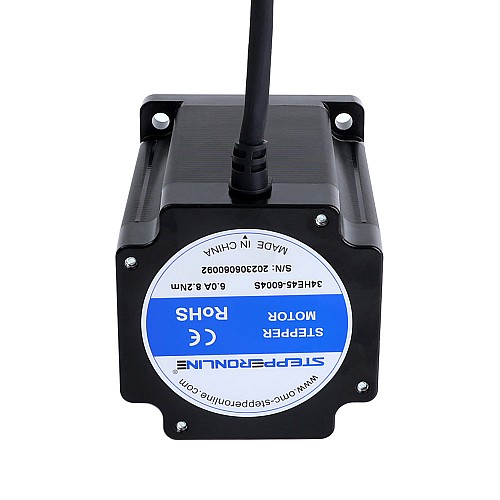

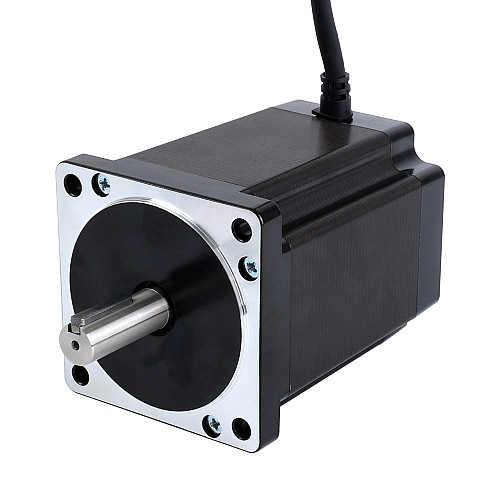

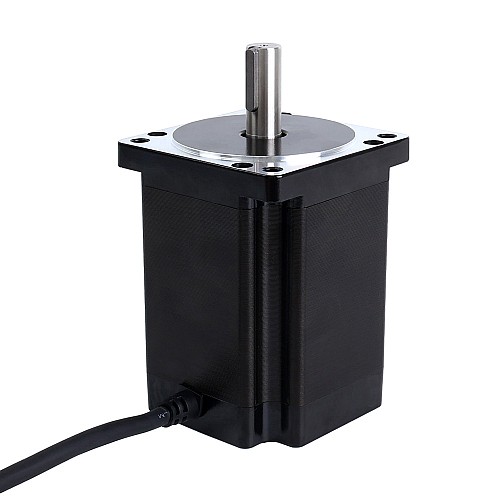

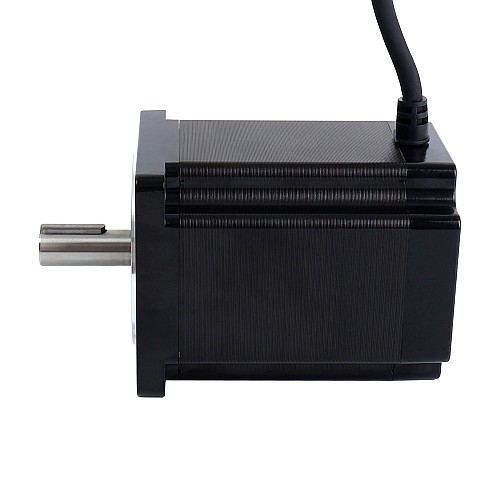

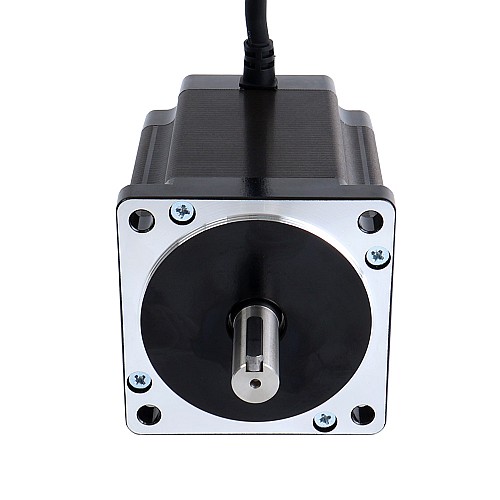

E Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.22oz.in) 6.0A 86x86x114mm 4 Wires - 34HE45-6004S | StepperOnline CA

Hot

E Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.22oz.in) 6.0A 86x86x114mm 4 Wires

1 reviews - Write a review

C$53.81

5 + C$51.76

10 + C$49.86

50 + C$48.09

100 + C$46.44

In Stock: 10000
Model: 34HE45-6004S
Gross Weight: 4.00kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 34HE45-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.2Nm(1161.22oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.51ohms± 10%
Inductance: 5.1mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	820
Holding Torque(oz.in)	1161.22
Inductance(mH)	5.1
Phase Resistance(ohms)	0.51
Rated Current(A)	6.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	114
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	E
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	3700
