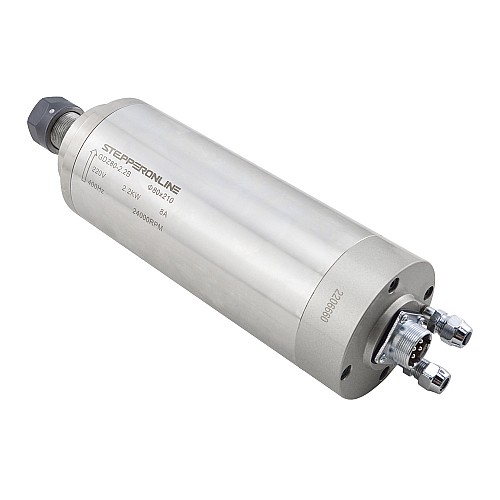

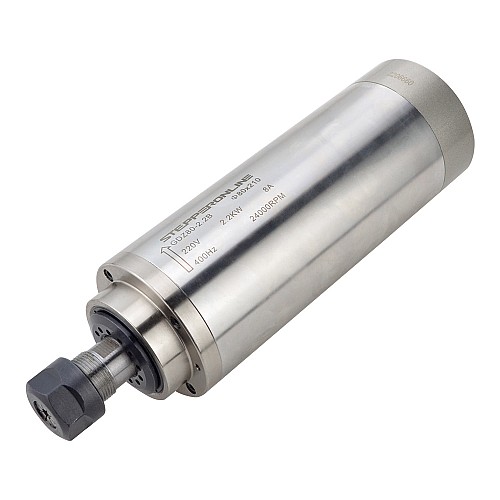

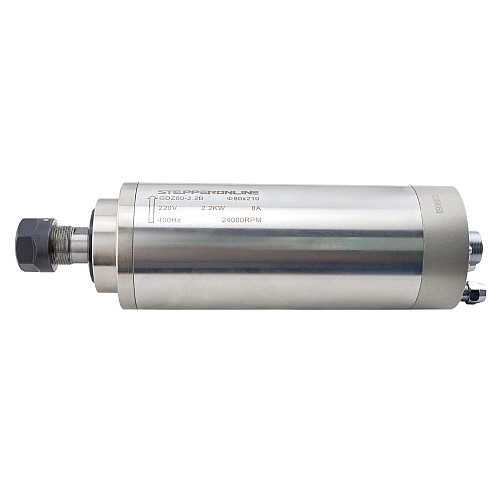

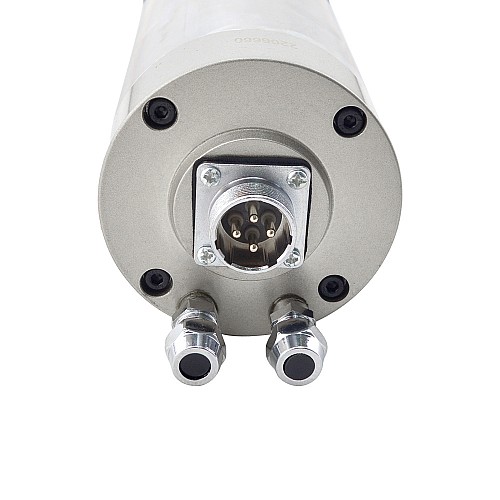

CNC Spindle Motor Water Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet

0 reviews - Write a review

C$161.68

5 + C$156.95

10 + C$152.50

50 + C$148.30

100 + C$144.31

In Stock: Pre-order
Model: GDZ80-2.2B
Gross Weight: 5.52kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Manufacturer Part Number: GDZ80-2.2B
Material: Stainless steel
Size: Ø80x210(Middle body diameter: 80mm, Length:210mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Weight: 5.26kg

Operating Environment
Cooling Method	Water cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	210
Collet Size	ER20
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	2.2
Shape	Round
Voltage(VAC)	220
Electrical Specification
Current(A)	8
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7005C(P4 DT), 1x7002C(P4)
Inventory Method	Dedicated Inventory
Weight(Kg)	5.25
