LA8 Series Belt Driven Max. Horizontal Payload 15kg Stroke 500mm for Servo Motor

0 reviews - Write a review

€188.23

5 + €182.73

10 + €177.55

50 + €172.65

100 + €168.01

In Stock: 10000
Model: LA8-60LL48S3-500
Gross Weight: 8.33kg

Sold: 3

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

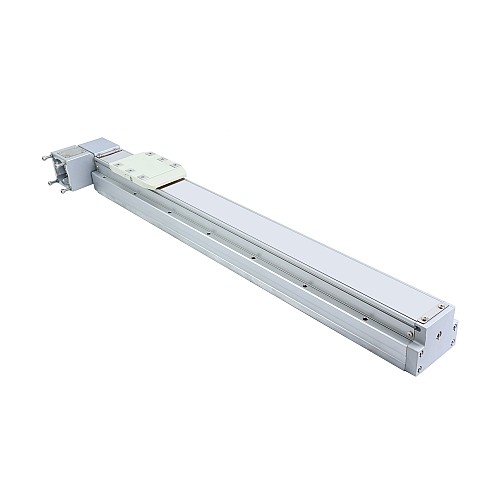

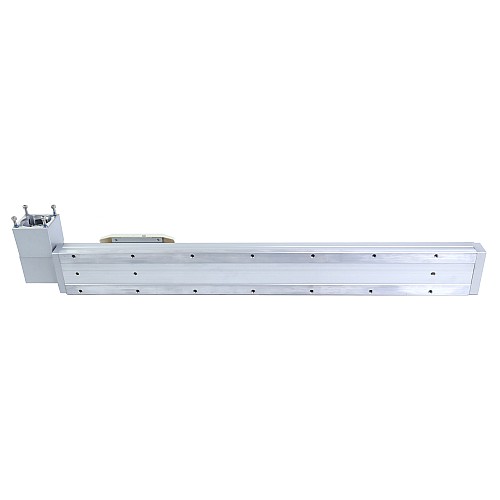

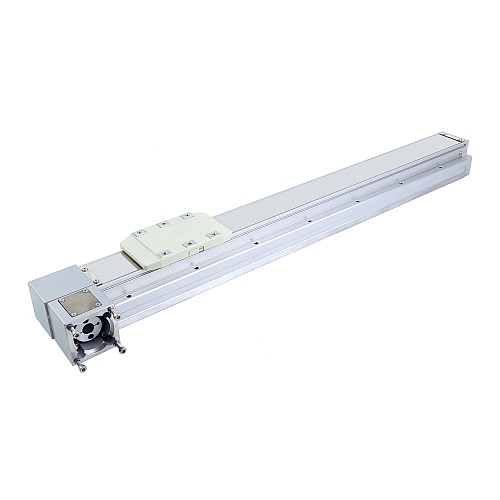

This LA8 series belt driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb), a stroke length of 500mm(1.64ft) and maximum speed of 2000mm/s(6.56ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LA8-60LL48S3-500
Position Accuracy: ± 0.04mm
Lead: 48mm(0.16ft)
Maximum Speed: 2000mm/s(6.56ft/s)
Maximum Horizontal Payload: 15kg(33.07lb)
Rated Thrust: 85N
Sensor Type: NPN
Number of Sensors: 3
Belt Width: 15mm
Motor Frame: 60mm Servo Motor(400W)
Stroke Length: 500mm(1.64ft)
Input Shaft Length: 30mm
Input Shaft Diameter: 14mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS400H2A1-M17 and A6-RS400H2B1-M17(with brake)
EC Series: A6-EC400H2A1-M17 and A6-EC400H2B1-M17(with brake)
PN Series: A6-PN400H2A1-M17 and A6-PN400H2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS400L2A2-M17S and DSY-RS400L2B2-M17S(with brake)
C Series: DSY-C400L2A2-M17S and DSY-C400L2B2-M17S(with brake)

Physical Specification
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	30
Inventory Method	Dedicated Inventory
Lead(mm/ft)	48/0.16
Linear Motor Type	Built-in belt
Max. Horizontal Payload(kg/lb)	15/33.07
Max. Speed(ft/s)	6.56
Max. Speed(mm/s)	2000
Motor Mounting Flange	60mm Servo Motor
Motor Mounting Position	Left Fold
Rated Thrust(N)	85
Stroke Length(mm/ft)	500/1.64
Transmission Method	Belt Driven
