LG12 Series Ball Screw Driven Max. Horizontal/Vertical Payload 88kg/22kg Stroke 500mm for Servo Motor

0 reviews - Write a review

C$351.87

5 + C$341.60

10 + C$331.90

50 + C$322.74

100 + C$314.09

In Stock: 10000
Model: LG12-60DL10S3-500
Gross Weight: 15.12kg
Certificated: ISO, CE

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

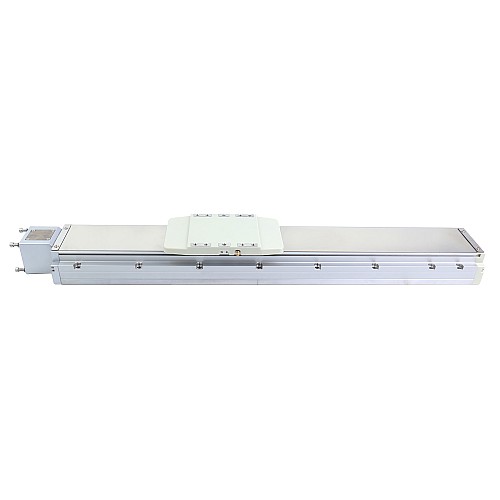

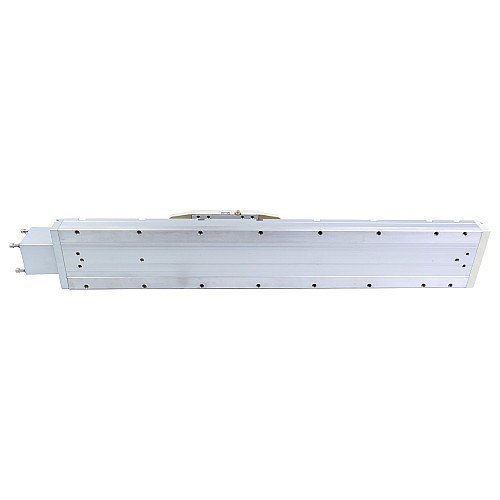

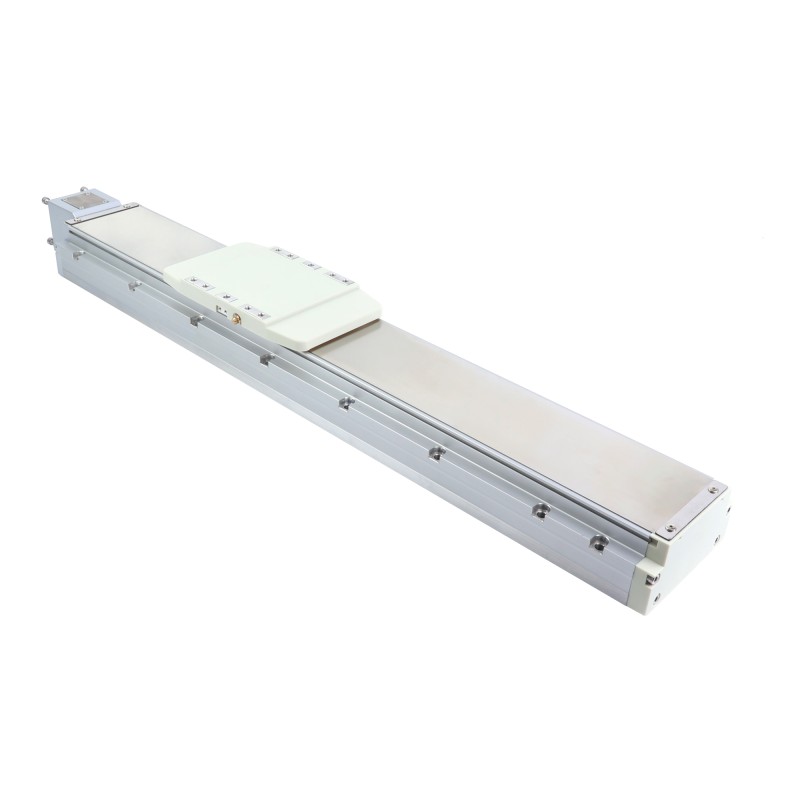

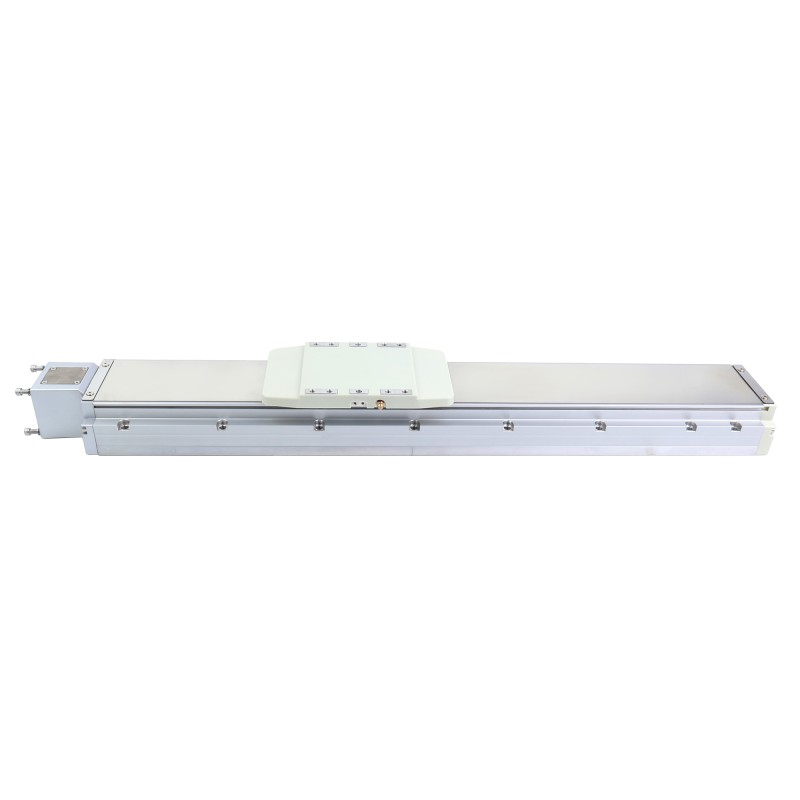

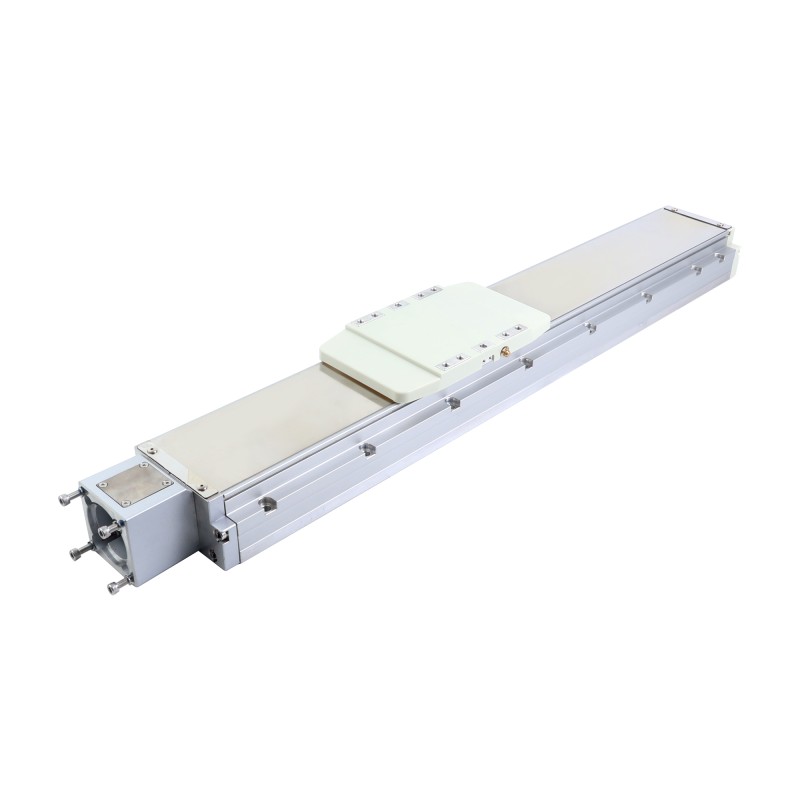

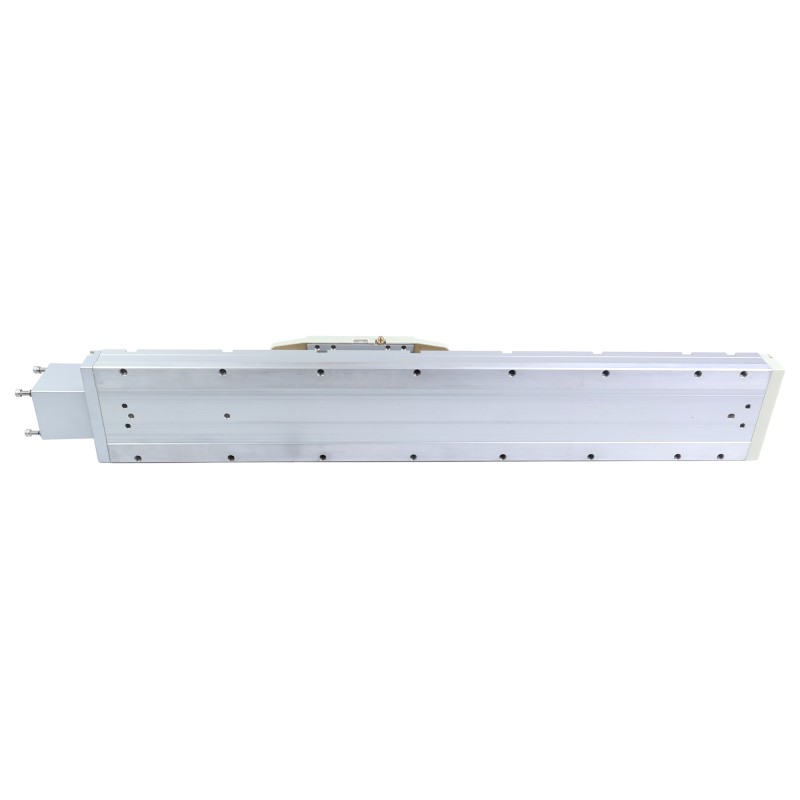

This LG12 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 88kg(194.01lb) and maximum vertical payload of 22kg(48.5lb), a stroke length of 500mm(1.64ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LG series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LG12-60DL10S3-500
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 500mm/s(1.64ft/s)
Maximum Horizontal Payload: 88kg(194.01lb)
Maximum Vertical Payload: 22kg(48.5lb)
Rated Thrust: 694N
Sensor Type: NPN

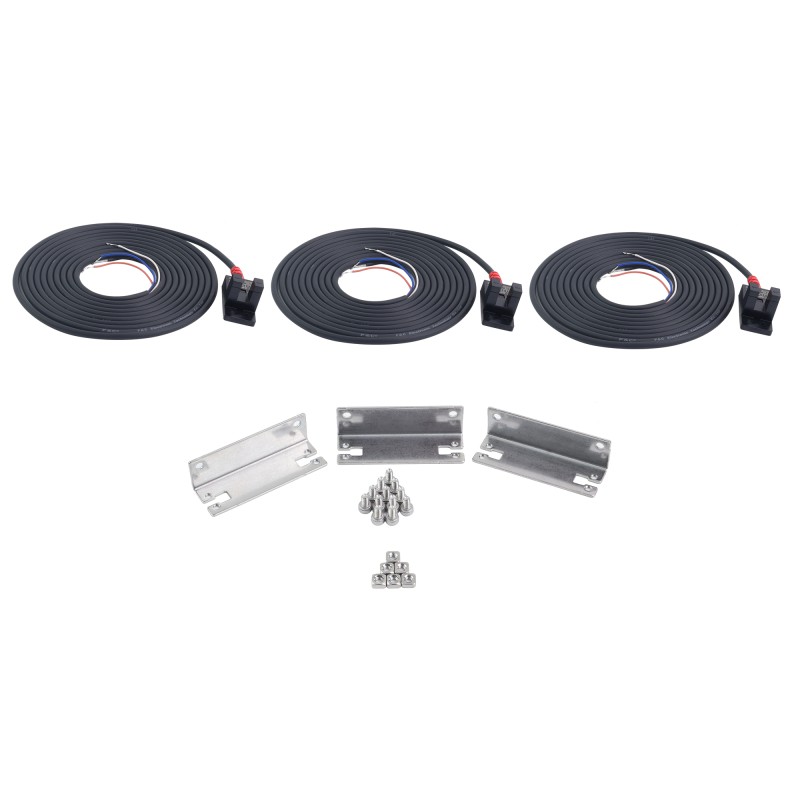

Number of Sensors:3
Ball Screw Grade: C7
Ball Screw Diameter: Φ16mm
Motor Frame: 60mm Servo Motor(400W)
Stroke Length: 500mm(1.64ft)

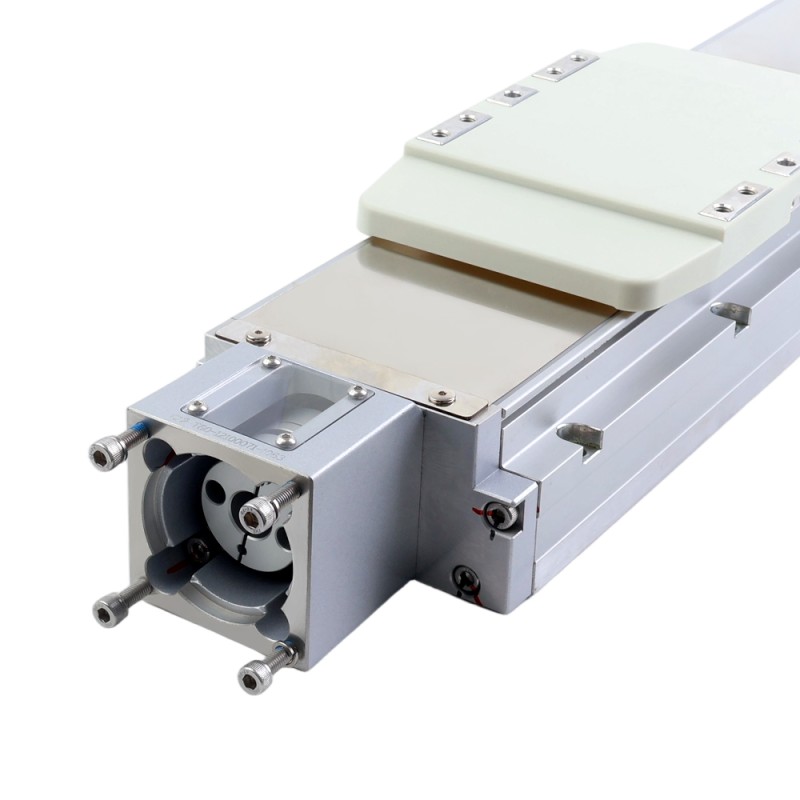

Input Shaft Length: 30mm
Input Shaft Diameter: 14mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS400H2A1-M17 and A6-RS400H2B1-M17(with brake)
EC Series: A6-EC400H2A1-M17 and A6-EC400H2B1-M17(with brake)
PN Series: A6-PN400H2A1-M17 and A6-PN400H2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS400L2A2-M17S and DSY-RS400L2B2-M17S(with brake)
C Series: DSY-C400L2A2-M17S and DSY-C400L2B2-M17S(with brake)

Physical Specification
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	30
Inventory Method	Dedicated Inventory
Lead(mm/ft)	10/0.033
Linear Motor Type	Built-in screw
Max. Horizontal Payload(kg/lb)	88/194.01
Max. Speed(ft/s)	1.64
Max. Speed(mm/s)	500
Max. Vertical Payload(kg/lb)	22/48.5
Motor Mounting Flange	60mm Servo Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	694
Stroke Length(mm/ft)	500/1.64
Transmission Method	Ball Screw Driven
